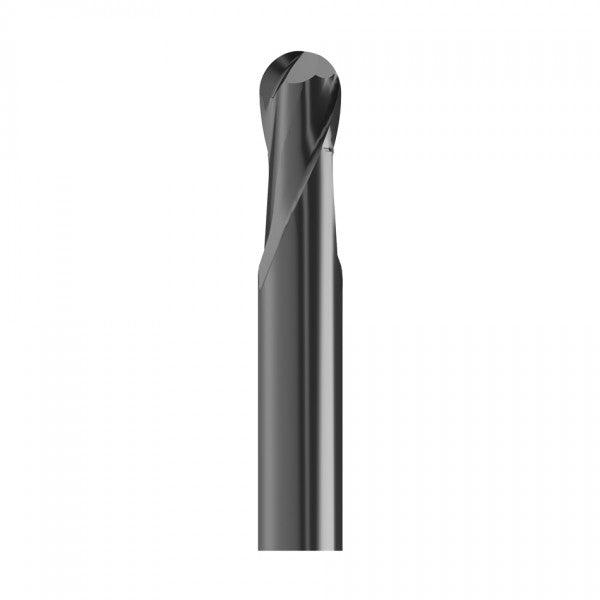

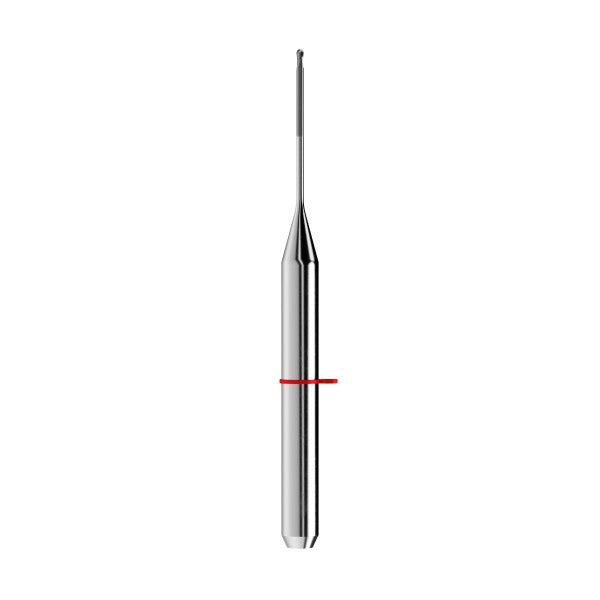

The VHF Premium Diamond Coating Ø0.6 mm Ballnose End Mill is a solid carbide, ultra-precision CAD/CAM milling tool engineered specifically for machining zirconium oxide (ZrO₂). Optimized for vhf S-Series 5-axis milling machines, this tool delivers exceptional accuracy, excellent surface quality, and consistent performance in advanced dental and technical milling applications.

Designed with an extended neck length of 12 mm, this ballnose end mill provides improved reach and accessibility for deep cavities and complex geometries while maintaining excellent stability. Manufactured to very tight tolerances, it ensures the highest precision and smooth surface finishes. The advanced DIA Premium diamond coating offers superior wear resistance, reduced friction, and long tool life when machining hard ceramic materials such as zirconia.

With a 0.6 mm cutting diameter, 0.3 mm radius, and 2 cutting edges, this tool is ideal for fine contouring, detailed 3D milling, and high-quality finishing operations.

Key Features & Benefits

• Solid carbide ballnose end mill for high-precision CAD/CAM milling

• Ø 0.6 mm cutting diameter with 0.3 mm radius for detailed contouring

• Optimized for zirconium oxide (ZrO₂) machining

• 2-flute design for smooth cutting and excellent surface quality

• DIA Premium diamond coating for extended tool life and reduced wear

• Very tight manufacturing tolerances for maximum accuracy

• Extended neck length (l3 = 12 mm) for enhanced accessibility

• Excellent surface finishes in zirconia milling

• Compatible with vhf S-Series (5-axis) milling machines

Product Features & Technical Specifications

• Tool type: Ballnose end mill

• Machinable material: Zirconium oxide

• Cutting diameter (d1): 0.6 mm

• Radius (r): 0.3 mm

• Cutting length (l2): 0.6 mm

• Neck length (l3): 12 mm

• Shank diameter (d2): 3 mm

• Total length (l1): 40 mm

• Number of cutting edges (z): 2

• Coating: DIA Premium diamond coating

• Machine compatibility: vhf S-Serie (5-axis)

Choose the VHF Premium Diamond Coating Ø0.6 mm Ballnose End Mill for maximum precision, superior surface quality, and reliable performance when milling zirconia. The ideal solution for professionals who demand accuracy, durability, and consistent results in 5-axis CAD/CAM milling workflows.
