Innovation Features

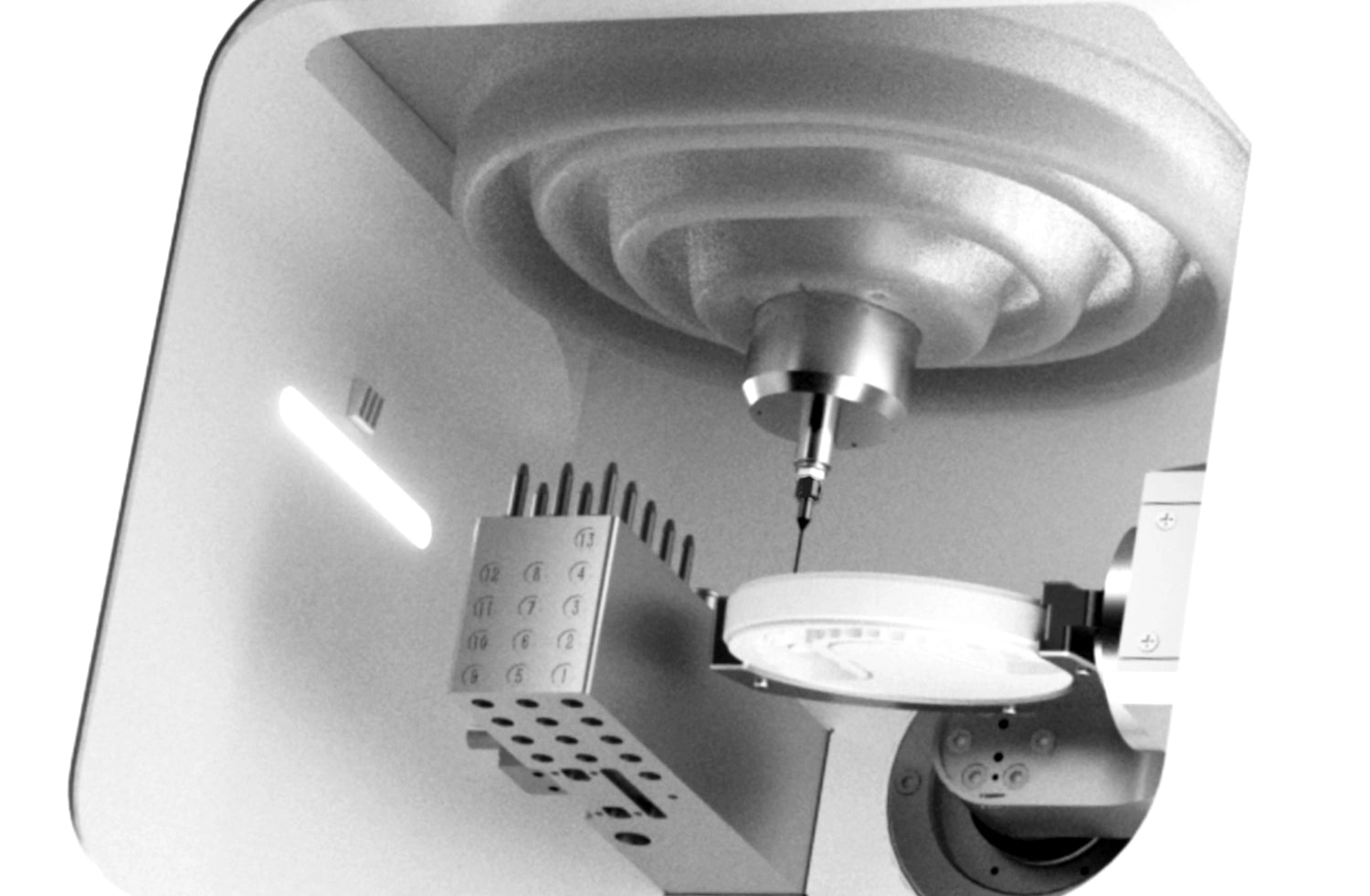

Large Working Chamber
A spacious milling chamber gives you more room to operate-making material handling,loading,and cleaning much easier.
It's designed to simplify your daily workflow and improve overall efficiency.

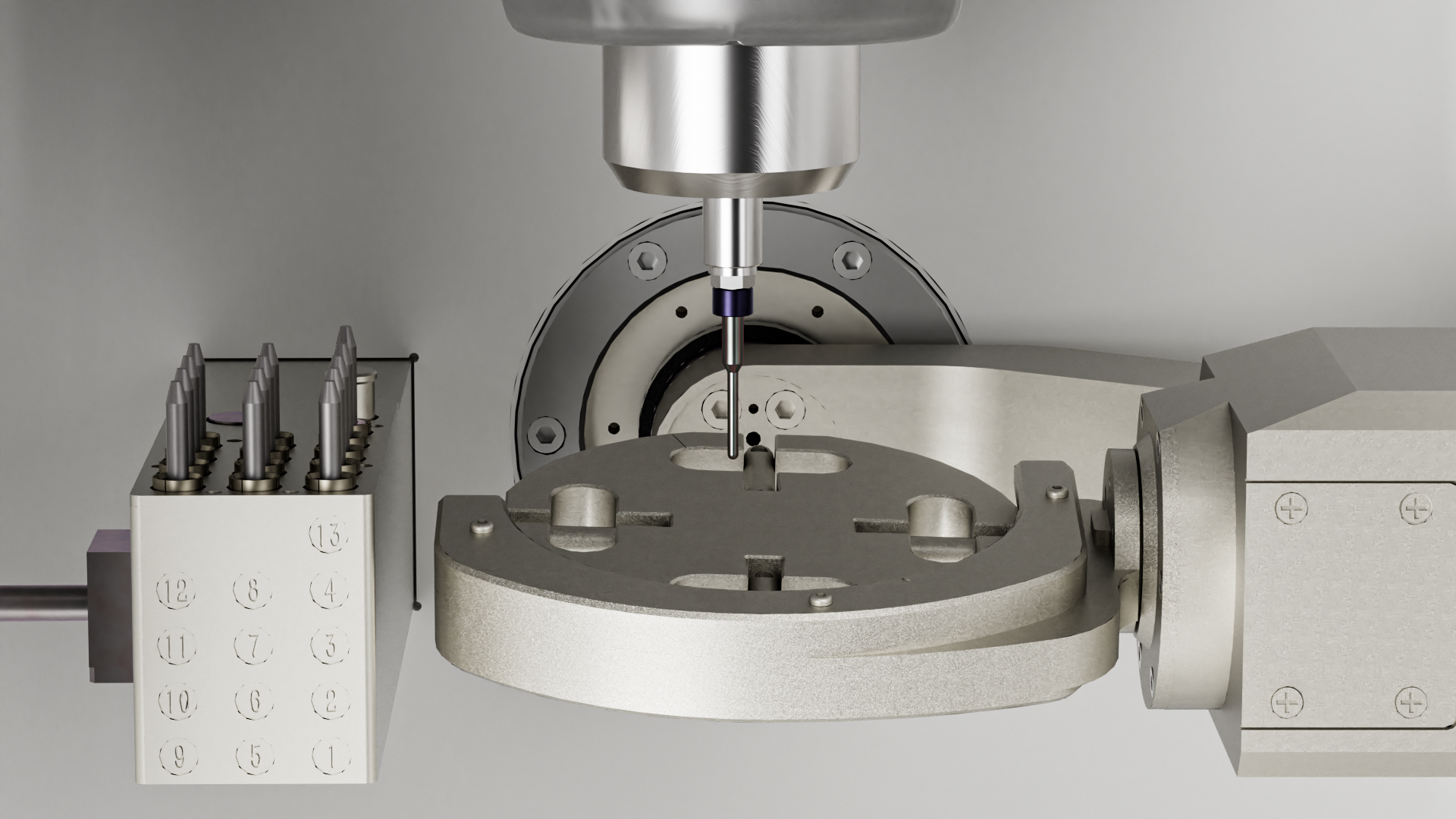

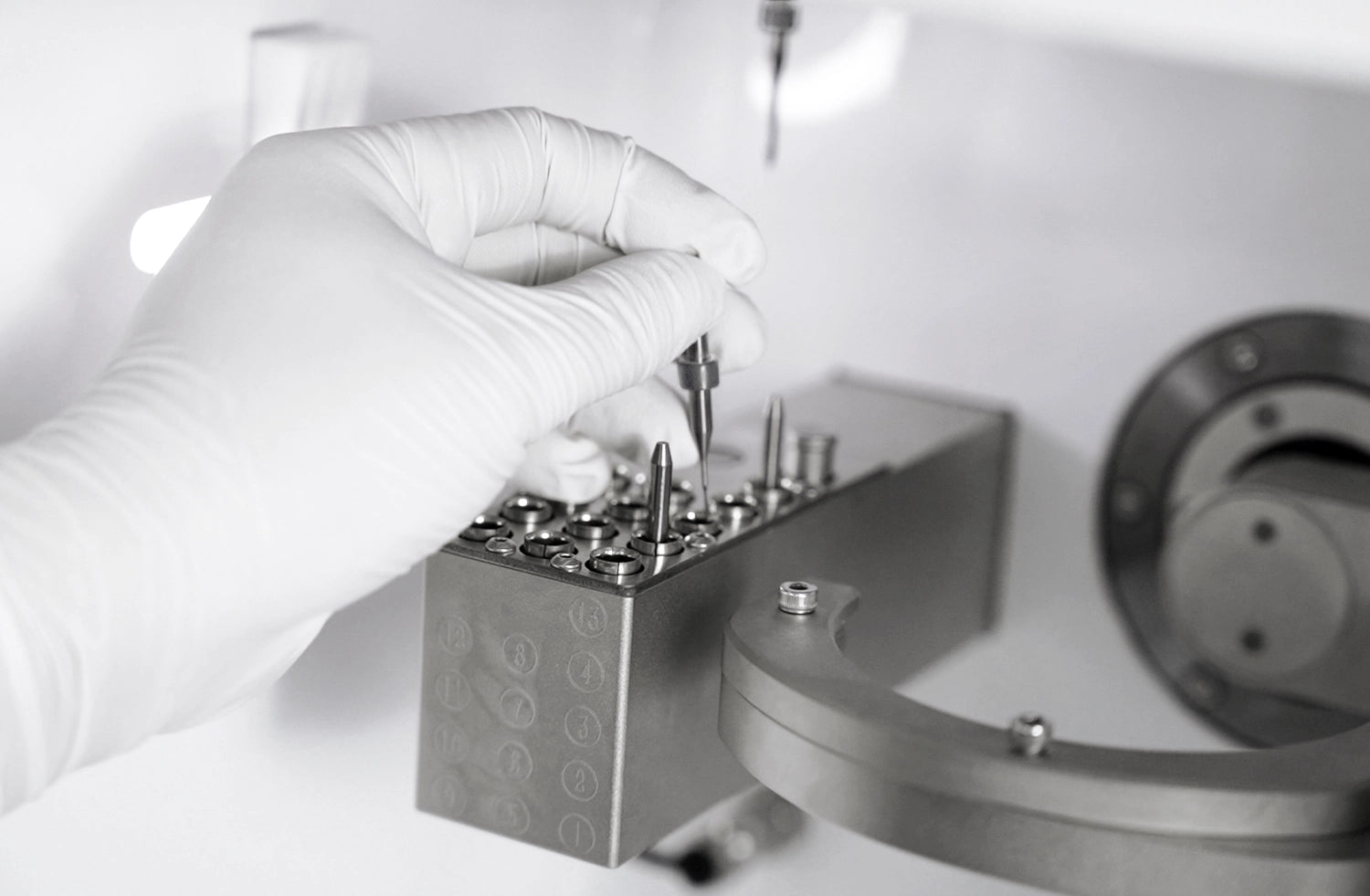

Auto Tool Chamber (13 Tools)
Switch tools automatically with the 13-position changer-enabling uninterrupted milling across materials.
It's designed to simplify your daily workflow and improve overall efficiency.

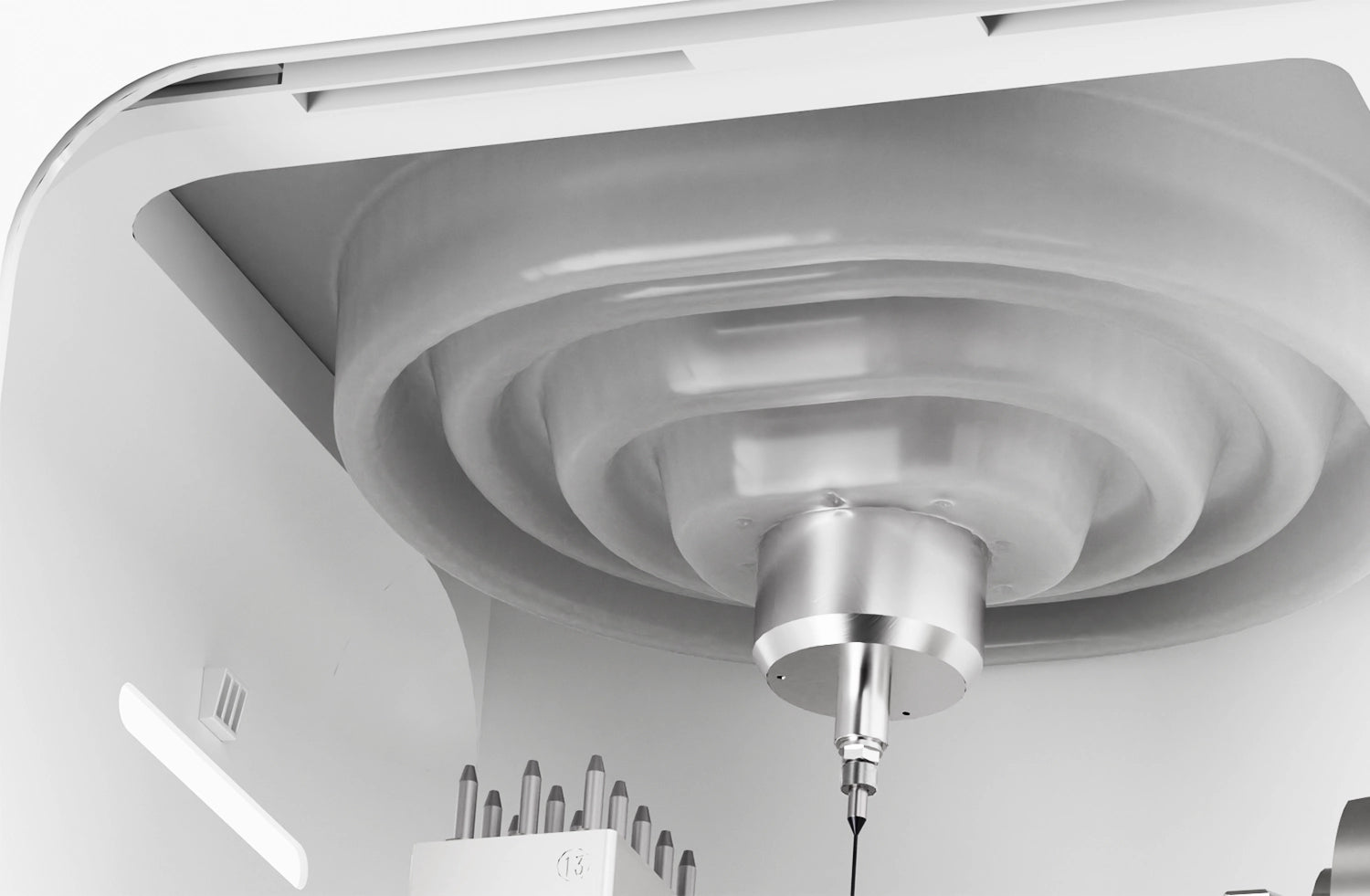

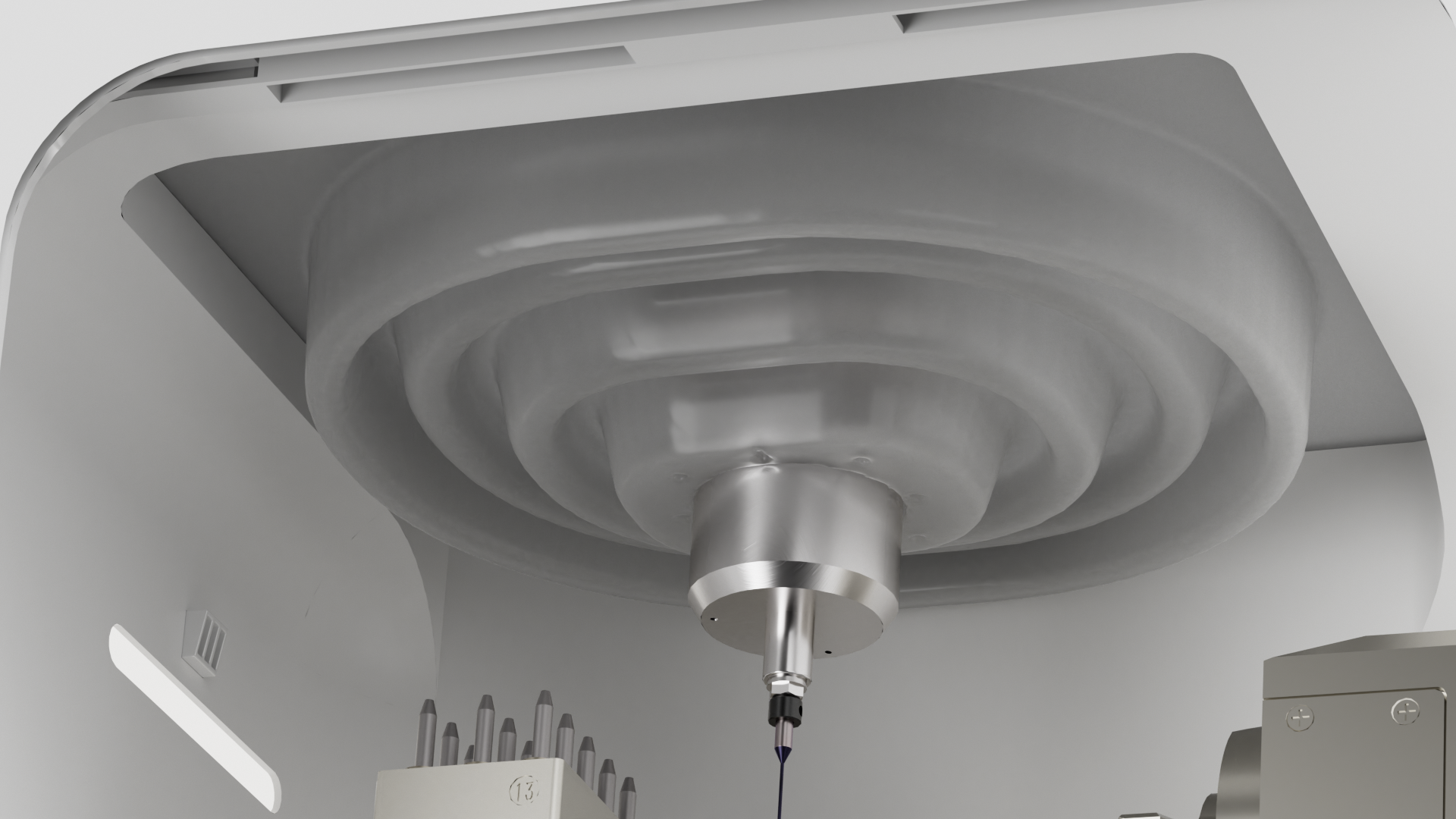

Silicone Dust Shield
The all-in-one silicone dust shield effectively blocks debris and dust from entering the spindle chamber protecting internal components and extending your machine's lifespan-with less maintenance.

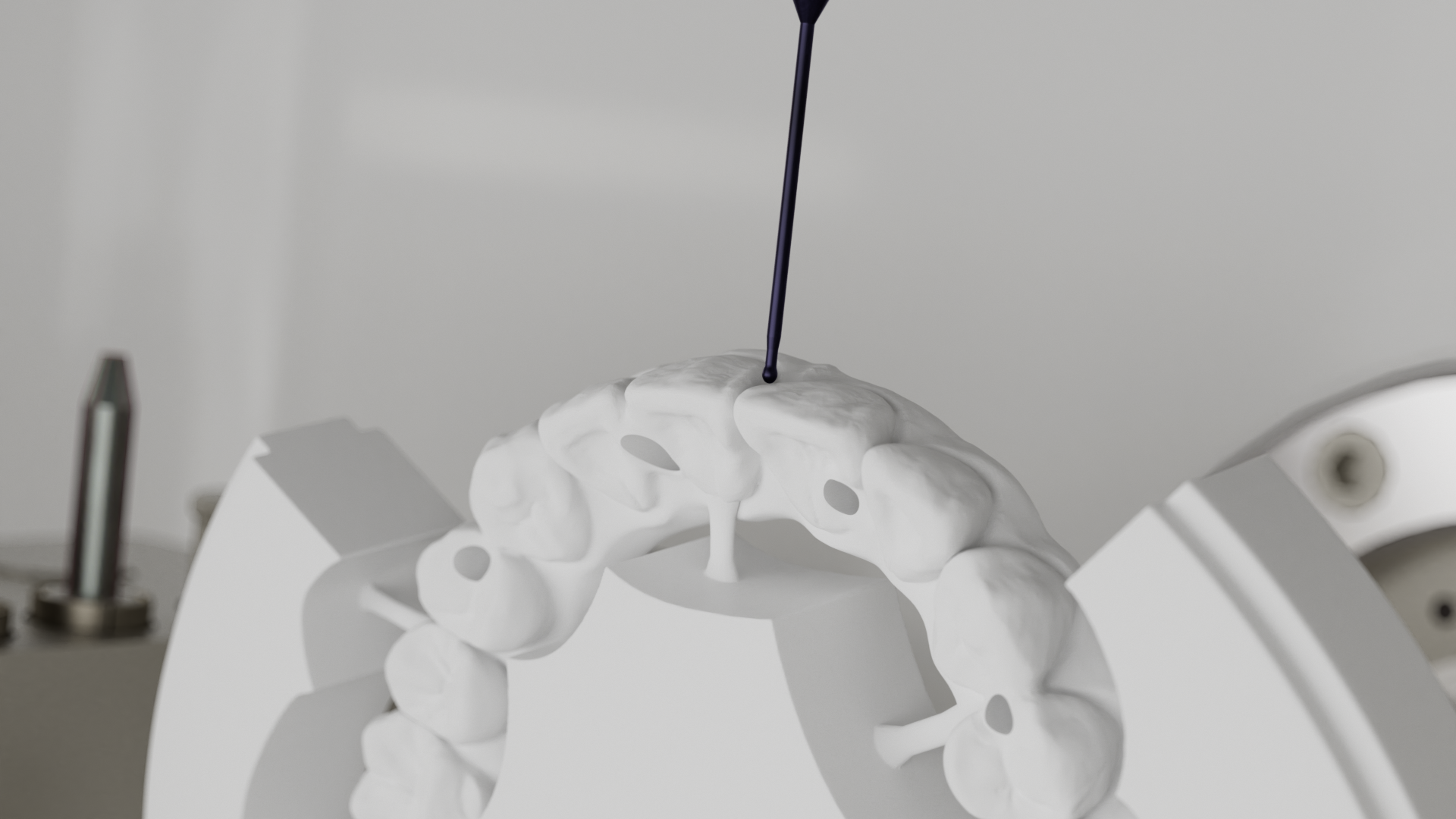

What You Can Create
Achieve everything from single-unit restorations to full-arch dentures-with accuracy, efficiency, and reliability.
Specification
General
General
Fields of application: Dry machining
Materials: Zirconia, wax, PMMA, PEEK, composite resin, CoCr sintering metals
Material Size-Discs: height 10-30mm, diameter 98.5mm-Blocks up to 40x20x20mm(Max)
Indications: Coping, Full Crown, Full Crown Bridge, Screw-Retained Crown, Inlay, Onlay, Veneer, Post and Core, Removable Partial Denture (RPD) Framework, Implant Bridge, Full Denture, Bite Splint, Superstructure over Bar, Esthetic Aligner, Model
Milling time : Coping: Zirconia 10 minutes, Wax 4.5 minutesCrown: Zirconia 13 minutes, Wax 5.5 minutes
Spindle
Spindle
General: High-frequency spindle, automatic tool change, no air cooling required
Max Spindle: SpeedUp to 60,000 rpm
Max feed rate: 3000mm/min
Tool holding: Φ4.0mm
Power: Peak power (Pmax): 800 watts • continuous power (S1): 450 watts
Connection Requirements
Connection Requirements
Voltage: 220±10% V AC 50/60 Hz
Dust extraction: Filter level: M; Flow rate: 2500L/min
Data: Ethernet port
Dimensions & Weights
Dimensions & Weights
Dimensions(W/D/H) : 442×595×704mm
Weight: 106kg
Base System
Base System
Construction : Machine bed made of solid cast aluminum body
Number of axes : 5-axis simultaneous
Housing: Steel, white high-gloss lacquer finish, main front housing: injection-molded
Rotary axes (A/B): A-axis: 360°; B-axis: ±33°
Control unit : 5-axis precision full servo drive system
Lighting: LED lighting inside the working chamber
Power: 750W
Automation
Automation
Tool change: Tool magazine for 13 tools,length measurement and tool breakage monitoring via precision measuring key
Environmental Conditions
Environmental Conditions
Operating temperature: Between 5℃ and 40℃
Air moisture: Below 80% (relative), non-condensing
Scope of Delivery
Scope of Delivery
CAM Software: UPCAM
