The VHF Premium Diamond Coating Ball End Mill is a solid carbide, high-precision milling tool designed for ultra-accurate machining of zirconium oxide (ZrO₂) and other hard ceramic materials. Engineered for vhf S-Series 5-axis CAD/CAM milling machines, this ballnose end mill delivers exceptional precision, smooth surface finishes, and long tool life in demanding dental and technical milling applications.

With a premium diamond coating, this tool ensures superior wear resistance, reduced friction, and consistent performance during detailed 3D milling, contouring, and finishing operations. Its ballnose geometry enables precise milling in complex shapes while maintaining excellent edge quality and surface smoothness.

Key Features & Benefits

• Solid carbide ballnose end mill for professional CAD/CAM milling

• DIA Premium diamond coating for extended tool life and wear resistance

• Optimized for zirconium oxide (ZrO₂) and hard ceramic materials

• Smooth, accurate cutting with excellent surface quality

• Ballnose design for detailed 3D milling, contouring, and finishing

• Compatible with vhf S-Series (5-axis) milling machines

• Reliable performance in dental, technical, and industrial CAD/CAM workflows

Available Sizes & Product Specifications

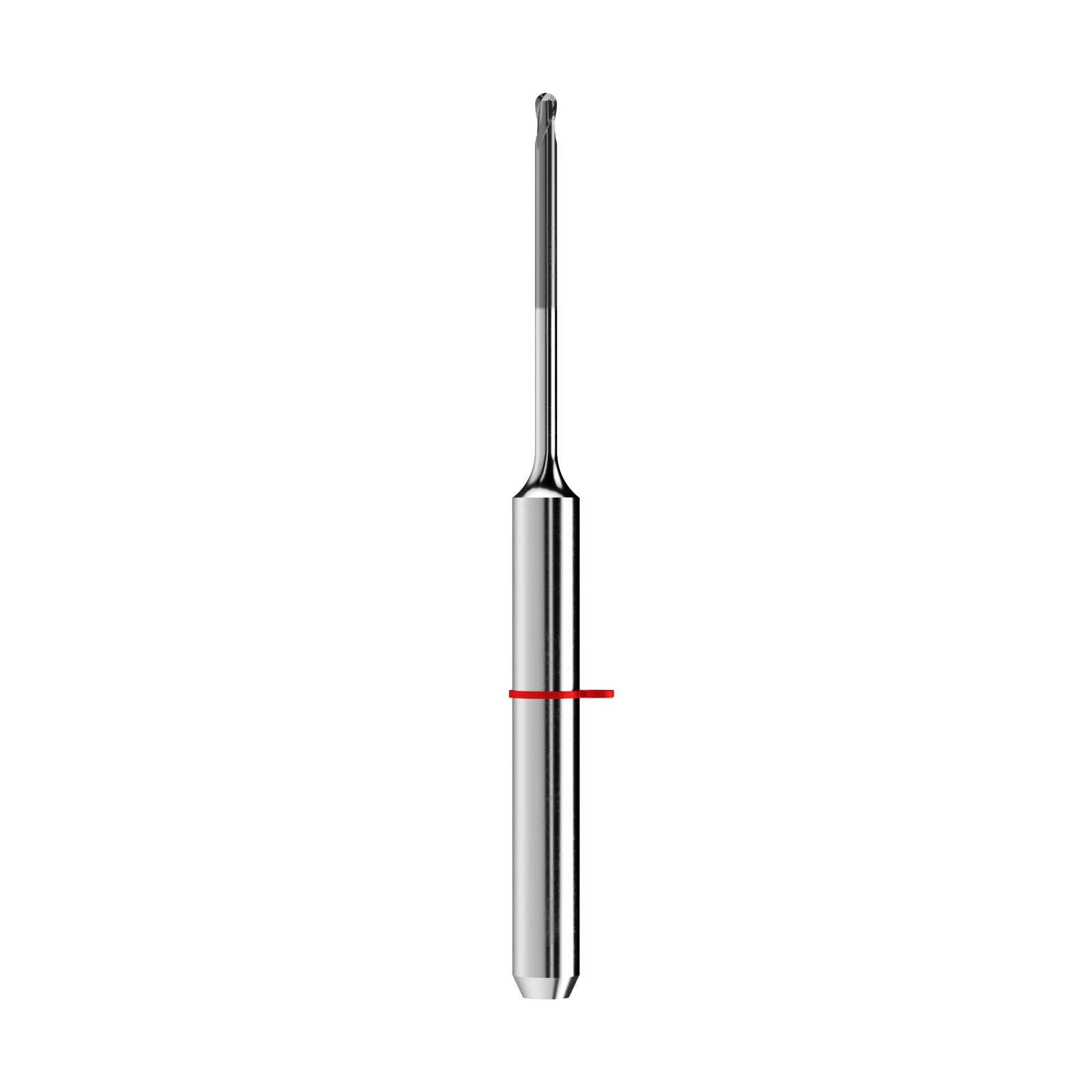

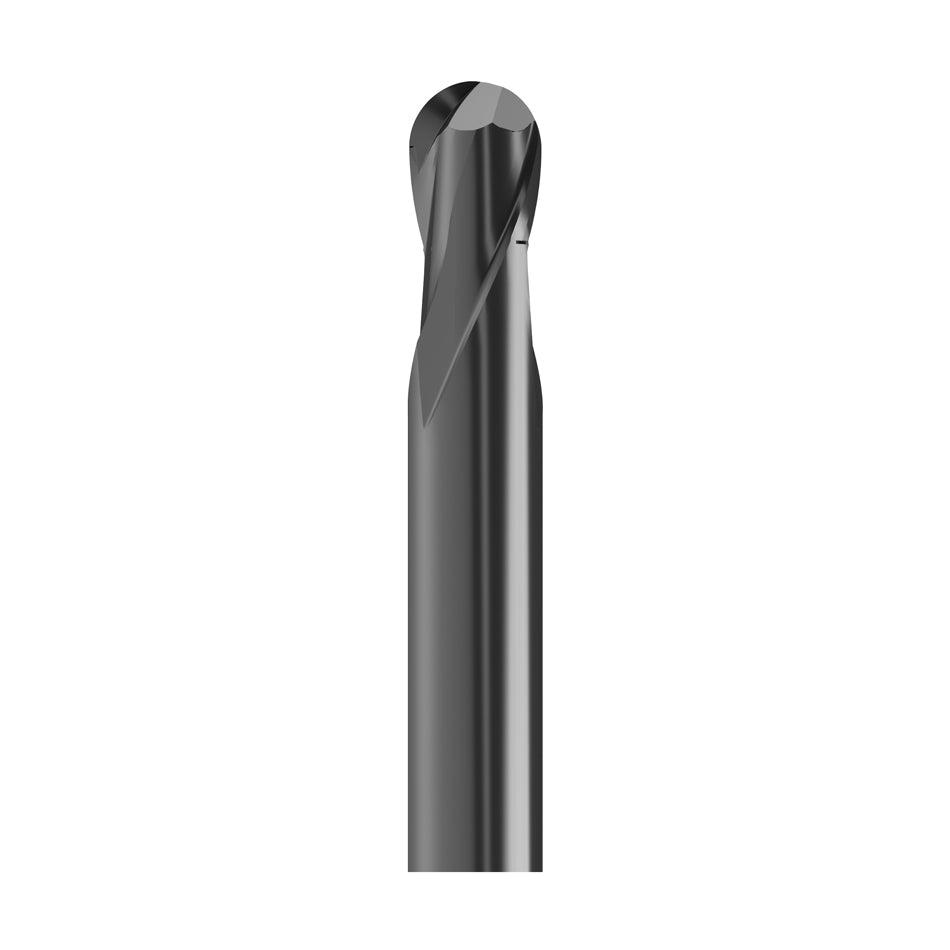

Option 1 – 1 mm Cutting Diameter

• Tool type: Ballnose end mill

• Cutting diameter (d1): 1 mm

• Radius (r): 0.5 mm

• Cutting length (l2): 1 mm

• Neck length (l3): 16 mm

• Shank diameter (d2): 3 mm

• Total length (l1): 40 mm

• Number of cutting edges (z): 2

• Coating: DIA Premium diamond

• Compatible machine system: vhf S-Serie (5-axis)

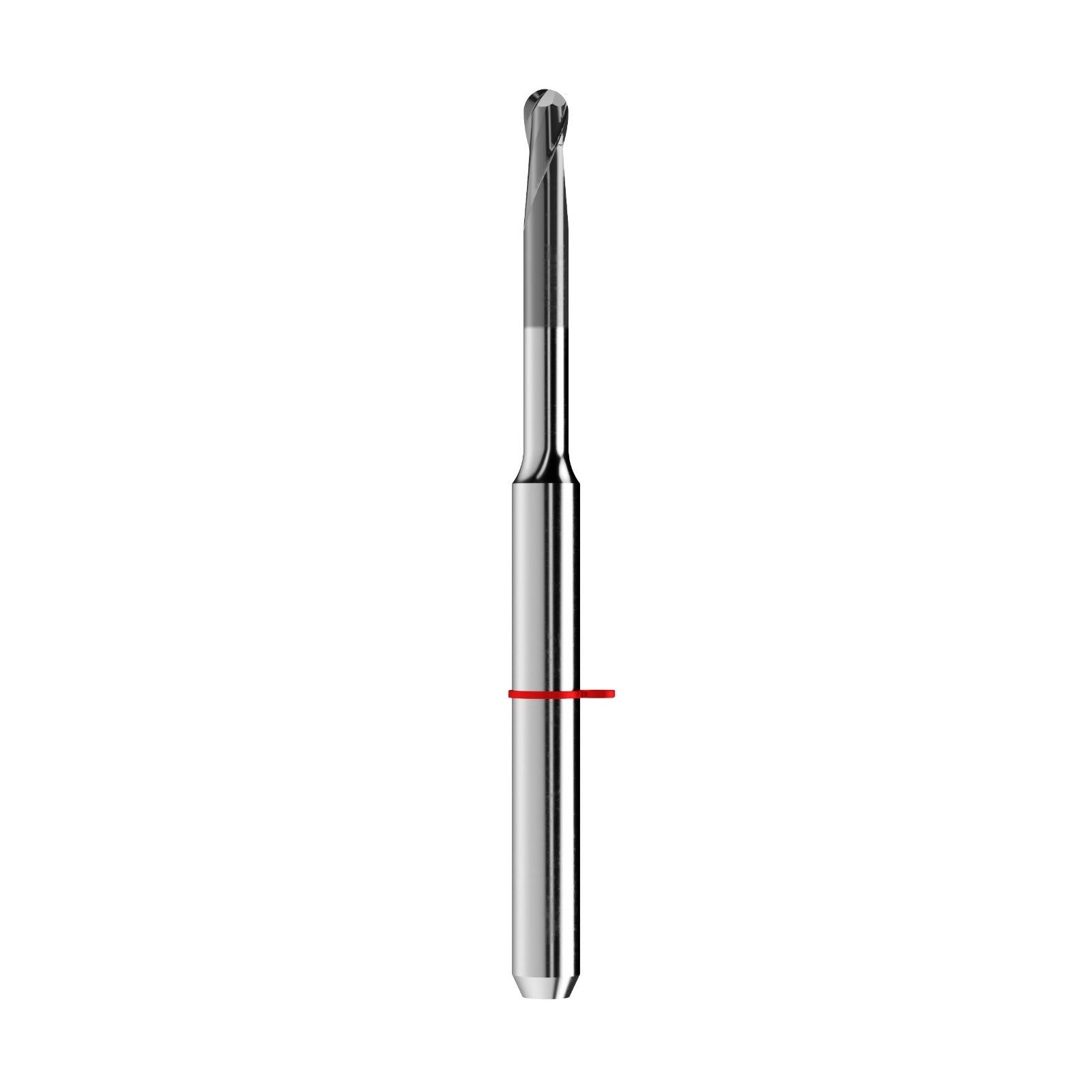

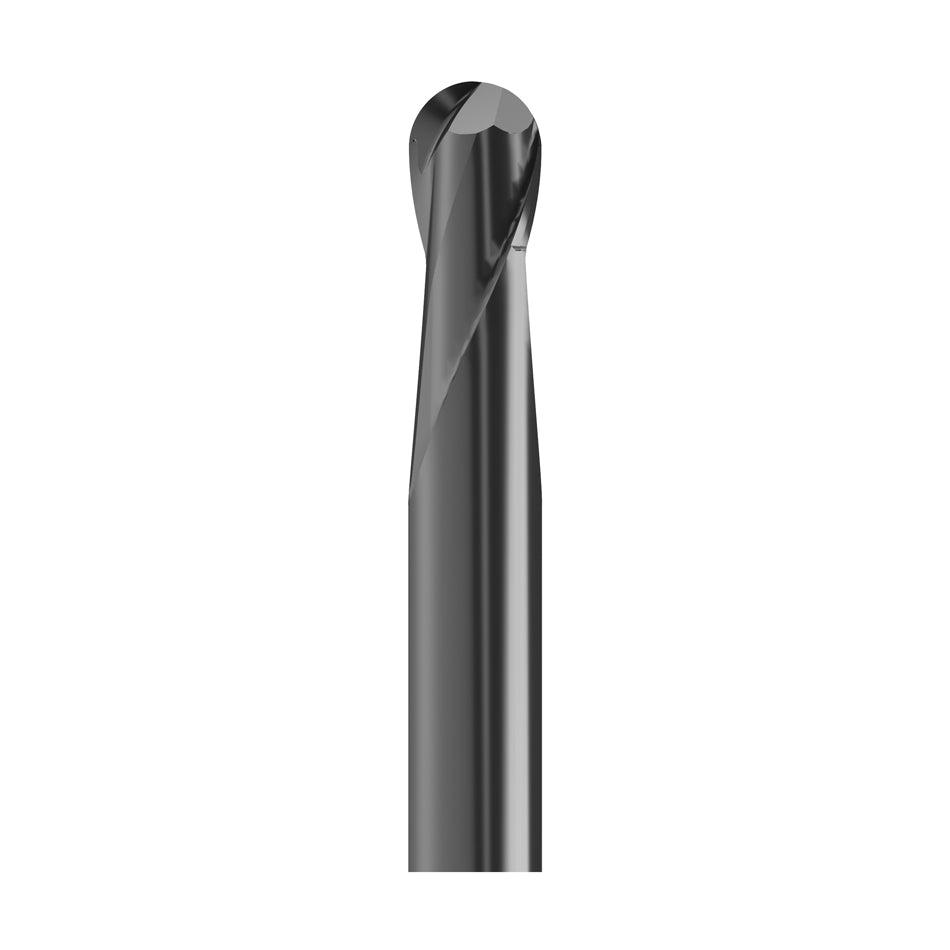

Option 2 – 2 mm Cutting Diameter

• Tool type: Ballnose end mill

• Cutting diameter (d1): 2 mm

• Radius (r): 1 mm

• Cutting length (l2): 2 mm

• Neck length (l3): 16 mm

• Shank diameter (d2): 3 mm

• Total length (l1): 40 mm

• Number of cutting edges (z): 2

• Coating: DIA Premium diamond

• Compatible machine system: vhf S-Serie (5-axis)

Applications

• Dental CAD/CAM milling: crowns, bridges, and frameworks

• Fine 3D contouring and high-precision finishing

• Machining zirconia and other high-strength ceramic materials

• Advanced CAD/CAM workflows requiring tight tolerances and smooth surfaces

The VHF Premium Diamond Coating Ball End Mill is the ideal tool for professionals seeking precision, durability, and consistent results in zirconia and advanced 5-axis CAD/CAM milling applications.
