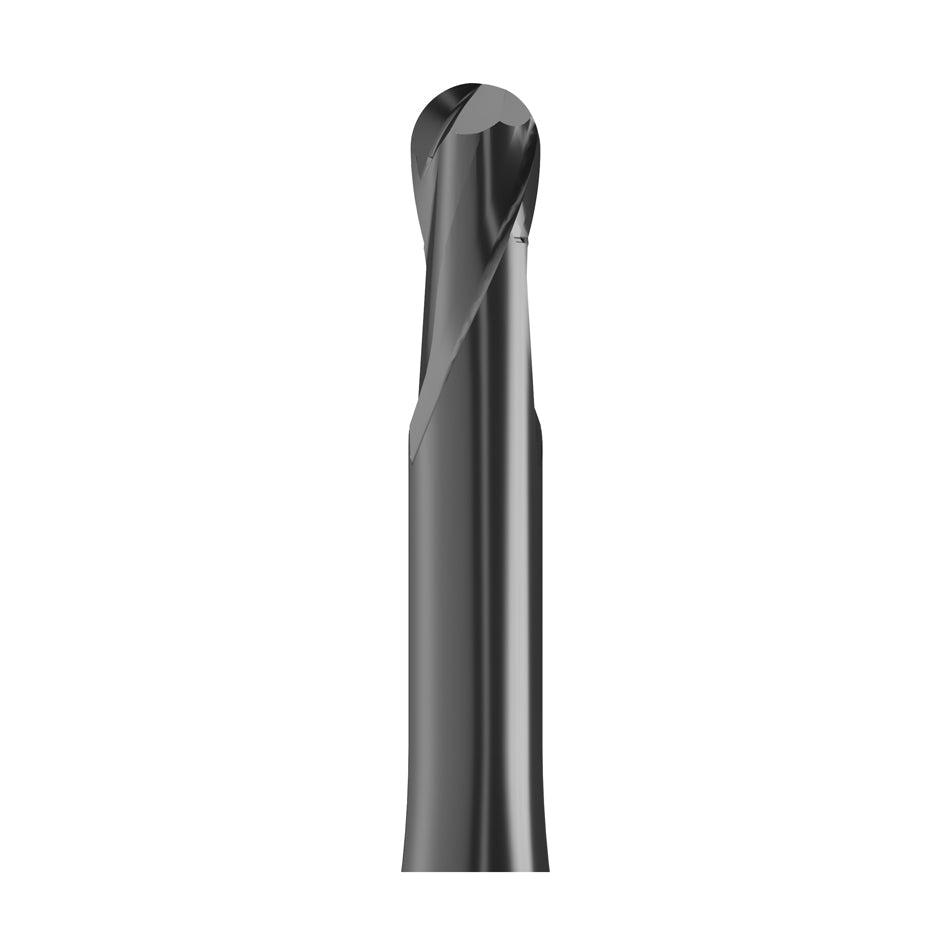

The VHF Premium Diamond Coating 0.6 mm Ball Nose End Mill is a solid carbide CAD/CAM milling tool engineered for maximum precision when machining zirconium oxide (ZrO₂). Developed specifically for vhf S-Series 5-axis milling machines, this end mill delivers exceptional accuracy, surface quality, and long tool life in demanding dental and technical applications.

Featuring a 0.6 mm ball nose geometry and a 2-flute cutting design, the tool ensures smooth material removal, excellent detail reproduction, and superior surface finishes. Manufactured with very tight tolerances, it provides outstanding dimensional accuracy even in fine contours and complex geometries. The DIA Premium diamond coating enhances wear resistance, reduces friction, and extends tool lifespan when milling hard ceramic materials like zirconia.

With a neck length (l3) of 3 mm and a 3 mm shank diameter (d2), this tool offers optimal stability and accessibility for intricate milling tasks in 5-axis workflows.

Product Features & Technical Specifications

• Tool type: Ballnose end mill

• Material: Solid carbide

• Machinable material: Zirconium oxide (ZrO₂)

• Cutting diameter (d1): 0.6 mm

• Radius (r): 0.3 mm

• Cutting length (l2): 0.6 mm

• Neck length (l3): 3 mm

• Shank diameter (d2): 3 mm

• Total length (l1): 40 mm

• Number of cutting edges (z): 2

• Coating: DIA Premium diamond coating

• Compatible machine system: vhf S-Serie (5-axis)


Applications

• Dental CAD/CAM milling

• Zirconia crowns, bridges, and frameworks

• Fine contouring and detailed 3D milling

• High-precision ceramic machining

Choose the VHF Premium Diamond Coating 0.6 mm Ball Nose End Mill for superior precision, excellent surface finishes, and reliable performance when milling zirconia on vhf S-Series 5-axis CAD/CAM systems.
