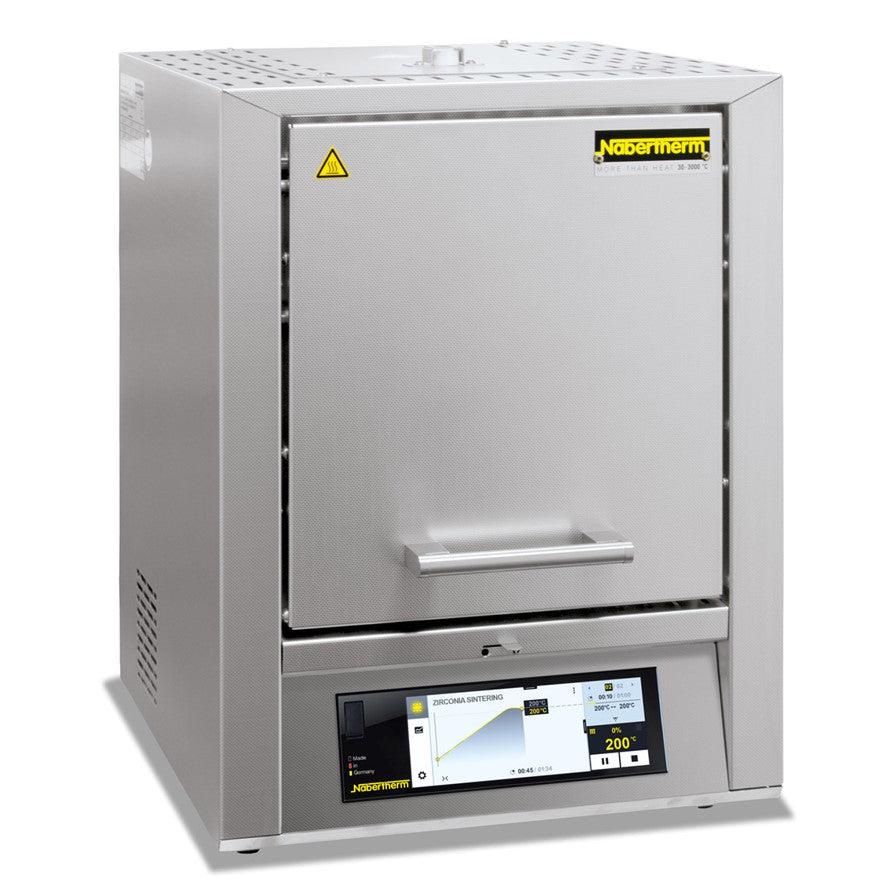

Nabertherm LHT 01/17 High-Temperature Sintering Furnace - 4 Liter

Nabertherm Inc

Nabertherm LHT 01/17 High-Temperature Sintering Furnace - 4 Liter

SKU LHT 03/17 D
$16,900.00 - $16,900.00
$16,900.00
$16,900.00 - $16,900.00
$16,900.00
View Financing Options

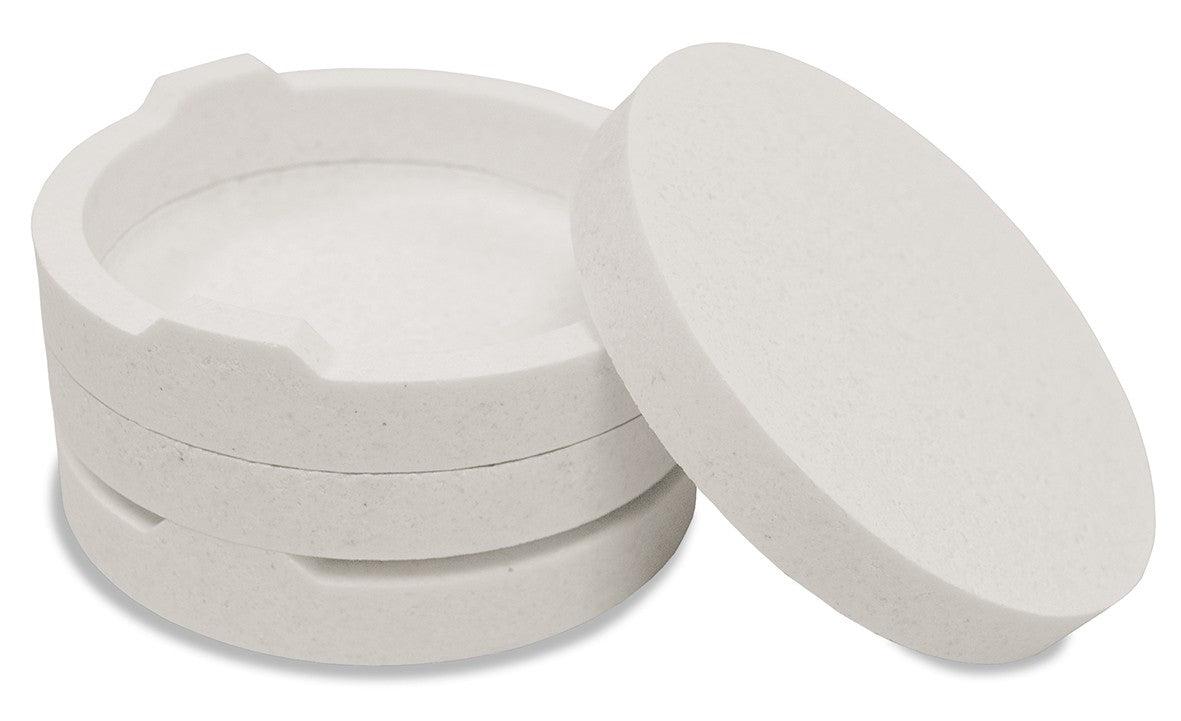

Furnace chamber can be charged with up to three saggars 25 crowns per level

  • These high-temperature furnaces are ideally suited for sintering bridges and crowns made of translucent zirconia.
  • The special heating elements made
    of molybdenum disilicide promise very good protection against chemical interaction between the charge and the furnace components.
  • The bridges andcrowns are loaded in ceramic saggars. These high-temperature furnaces are particularly convincing due to their very good price-performance ratio.
  • The furnaces can be individually programmed for all recommended sintering curves by almost all zirconium manufacturers.

Read full description
Request a quote

High-Temperature Sintering Furnaces up to 1650 °Cfor sintering translucent zirconia

These high-temperature furnaces are ideally suited for sintering bridges and crowns made of translucent zirconia. The special heating elements made of molybdenum disilicide promise very good protection against chemical interaction between the charge and the furnace components. The bridges and crowns are loaded in ceramic saggars. These high-temperature furnaces are particularly convincing due to their very good price-performance ratio. The furnaces can be individually programmed for all recommended sintering curves by almost all zirconium manufacturers. FUNCTION AND EQUIPMENT

FUNCTION AND EQUIPMENT

  • Tmax 1650 °C
  • Furnace chamber with a volume of 1 or 4 liters
  • Special heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
  • Scope of delivery includes a starter set for charging on one level, additional levels as additional equipment
  • Adjustable air inlet
  • Furnace chamber can be charged with up to two (LHT 01/17D) or three (LHT 03/17D) saggars, 15 or 25 individual crowns per level (depending on model)
  • Exhaust air opening in the roof
  • Type S thermocouple
  • Precise temperature control, also in the lower temperature range for drying
  • Switchgear with steady control of the heating elements
  • Freely usable for sintering blanks of almost all leading manufacturers
  • Controller with touch operation P580 (50 programs with each 40 segments)
  • MyNabertherm App for online monitoring of the firing on mobile devices for free download
  • Freeware NTEdit for convenient program input via MS Excel on the PC
  • Freeware NTGraph for evaluation and documention of firings using MS Excel on the PC
  • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
  • Defined application within the constraints of the operating instructions

TECHNICAL SPECIFICATIONS

Model Tmax Inner dimensions in mm Volume Maximum Outer dimensions in mm3 Connected Electrical Weight Heating time
in °C w d h in l units W D H2 load in kW connection* in kg in min1
LHT 01/17 D 1650 110 120 120 1 30 385 425 525+195 2.9 1-phase 28 35
LHT 03/17 D 1650 135 155 200 4 75 470 630 770+260 3.0 1-phase 75 30
*These furnaces are available for main voltage of 200 V, 208 V, 220 V - 240 V, 1/N/PE or 2/PE
1Heating time of the empty and closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE rsp. 400 V 3/N/PE)
2Including opened lift door
3External dimensions vary when furnace is equipped with additional equipment. Dimensions on request

Tmax 1650 °C

High-quality heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements

Exhaust air opening in the roof

Precise temperature control, also in the lower temperature range for drying

MyNabertherm App for online monitoring of the firing on mobile devices for free download see page 48
