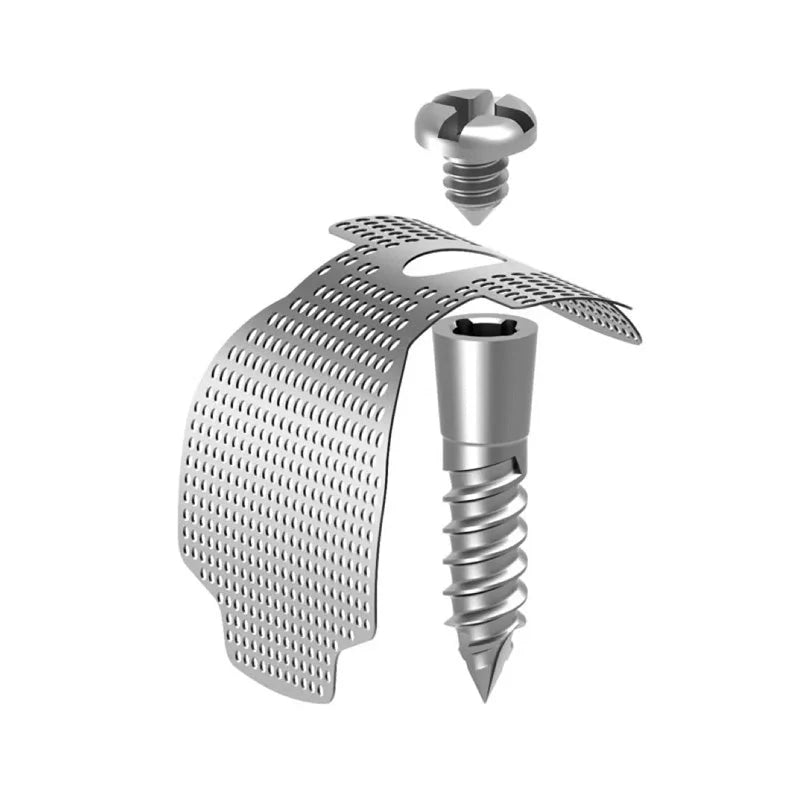

DSI Tent Screw is designed for the fixation of titanium mesh membranes. It is a quick and easy solution for a GBR technique at 1-2-3 wall defects. Not only works for horizontal, but also for vertical augmentation. The screw can also be used for resorbable membranes if needed.

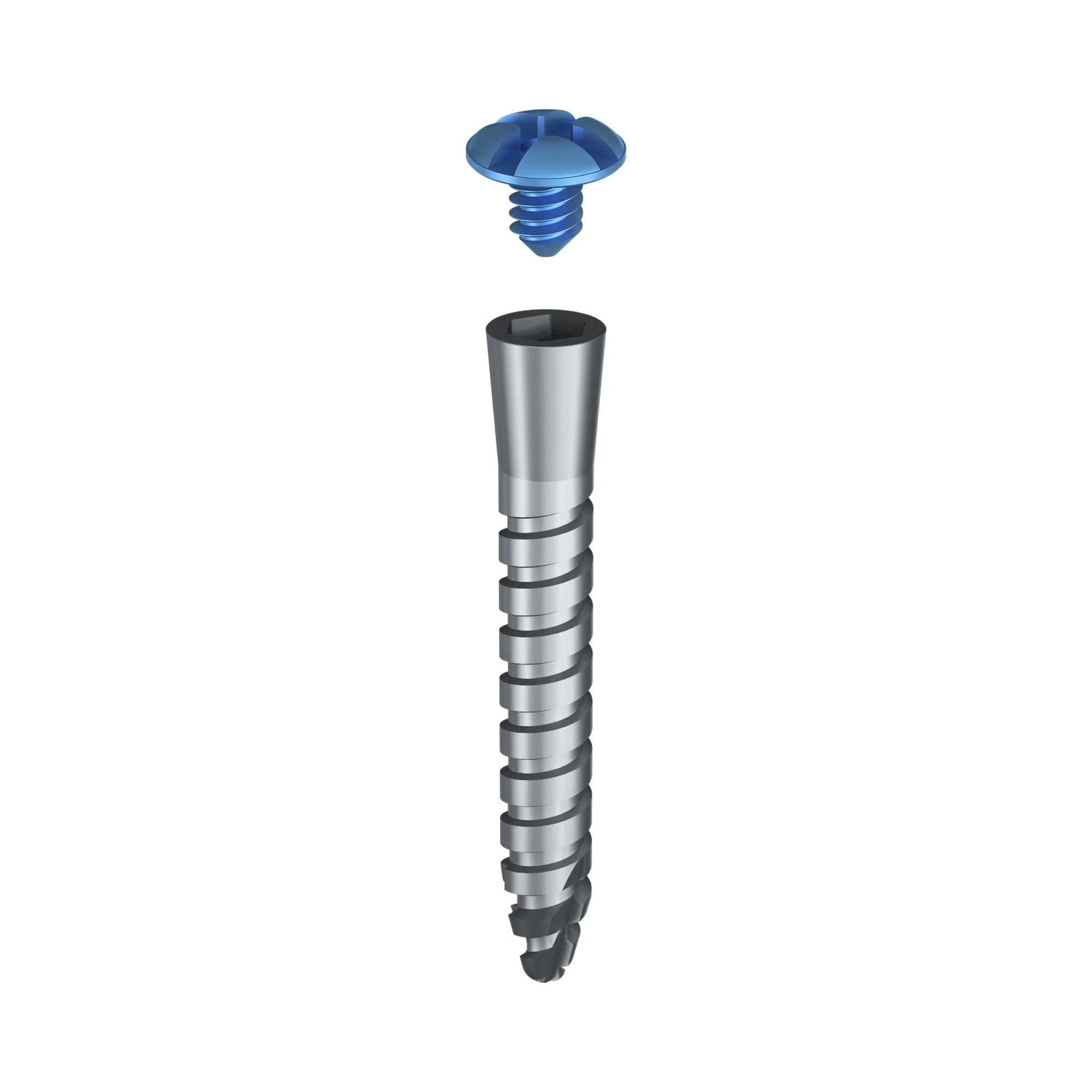

An aggressive tip design gives an option for self-drilling into the bone and enables precise positioning without the use of a drill. The screw is placed in the cortical bone granting exceptional stability for the whole procedure time. The neck of the screw is polished, and the upper part is wide with an entrance for an additional fixing screw for fixing the membrane in place. Such construction allows easy placement and fixation of the membrane and easy removal by the end of the treatment. The upper screw has a regular Phillips connection type.

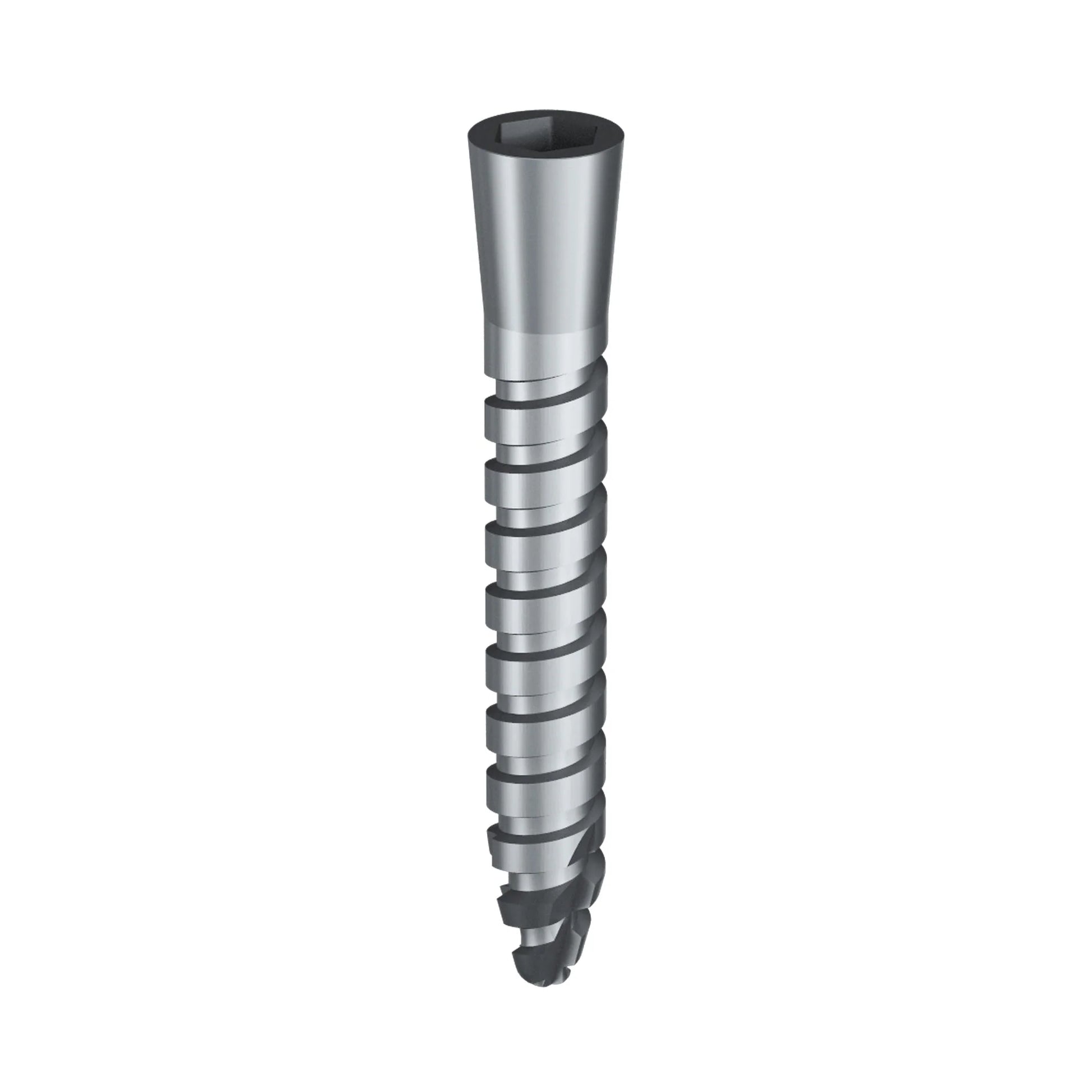

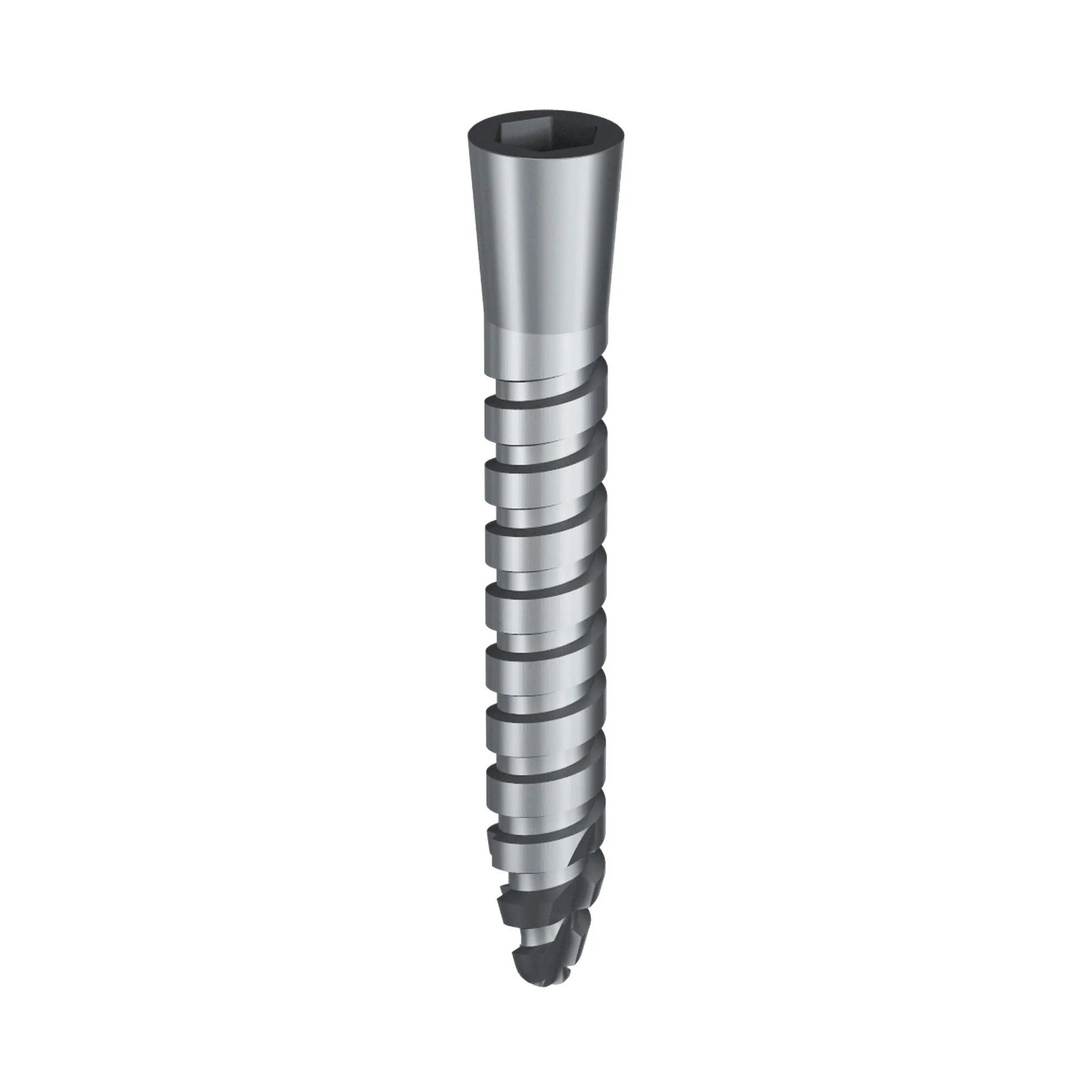

DSI tent screw is made of biocompatible titanium alloy. It has a self-tapping body and self-piercing tip to facilitate fast placement without drilling. It also does not require any special instruments and can be installed with a regular abutment driver Ø1.25mm hexagon connection.

Indication:

• Installation and stabilization of titanium mesh membranes
• Fixation of absorbable membranes during GBR procedures

Features:

• Biocompatible - made of titanium
• Self-tapping body
• Self-piercing tip
• Universal hexagonal (abutment) connection Ø1.25mm
• Can be used for both the maxilla and mandible
• Secures membranes effectively
• Completely safe for the patient

• Reduces treatment time - no need for drilling

• Accurate and predictable results

Benefits:

• Best to use in all kinds of GBR cases - holds the membrane with great stability and security

• Universal - can be used for a wide assortment of membranes and titanium mesh plates

• Perfect anchor point - incredibly stable and accurate

• Biocompatible

• Easy insertion and extraction with no need for drilling

Technical Information:

• Material: Titanium alloy Ti-6Al-4V grade 23 ELI
• Packed in a sterile blister
• Head diameter: 2.5 mm

• Body diameter: 2.0 mm

• Hexagon connection diameter: 1.25mm (regular abutment)
• Body length: 6, 9, 12, and 15 mm for selection

• Self-tapping body & self-piercing tip

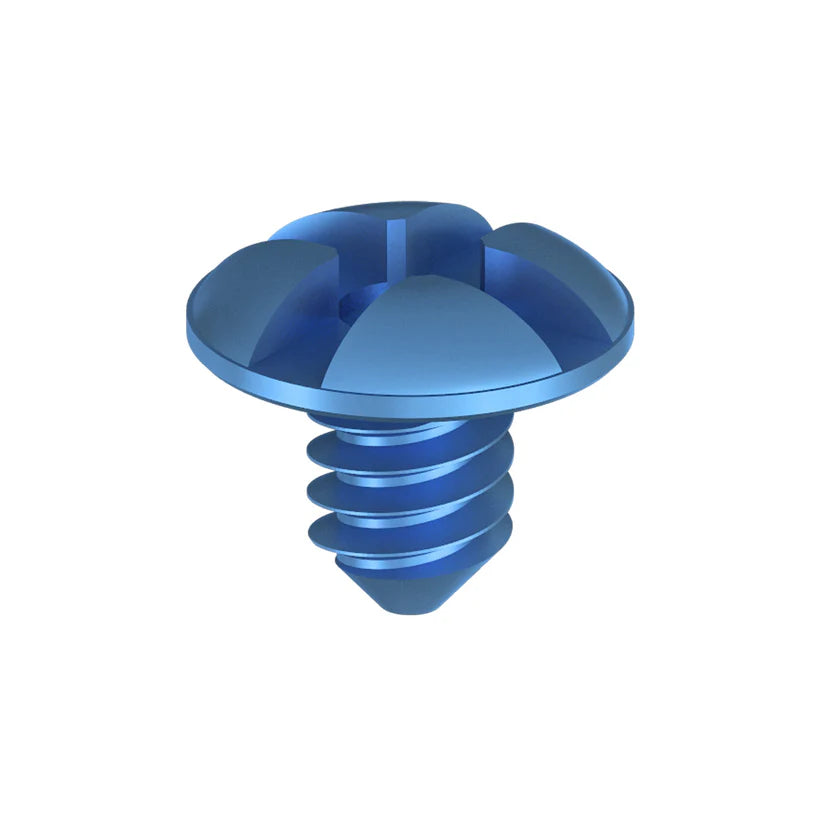

• The upper fixation screw has a universal Phillips connection
• Pairs easily with most types of titanium mesh membranes (not included)

Package includes 1 tent screw

If you need a titanium mesh membrane please click HERE
