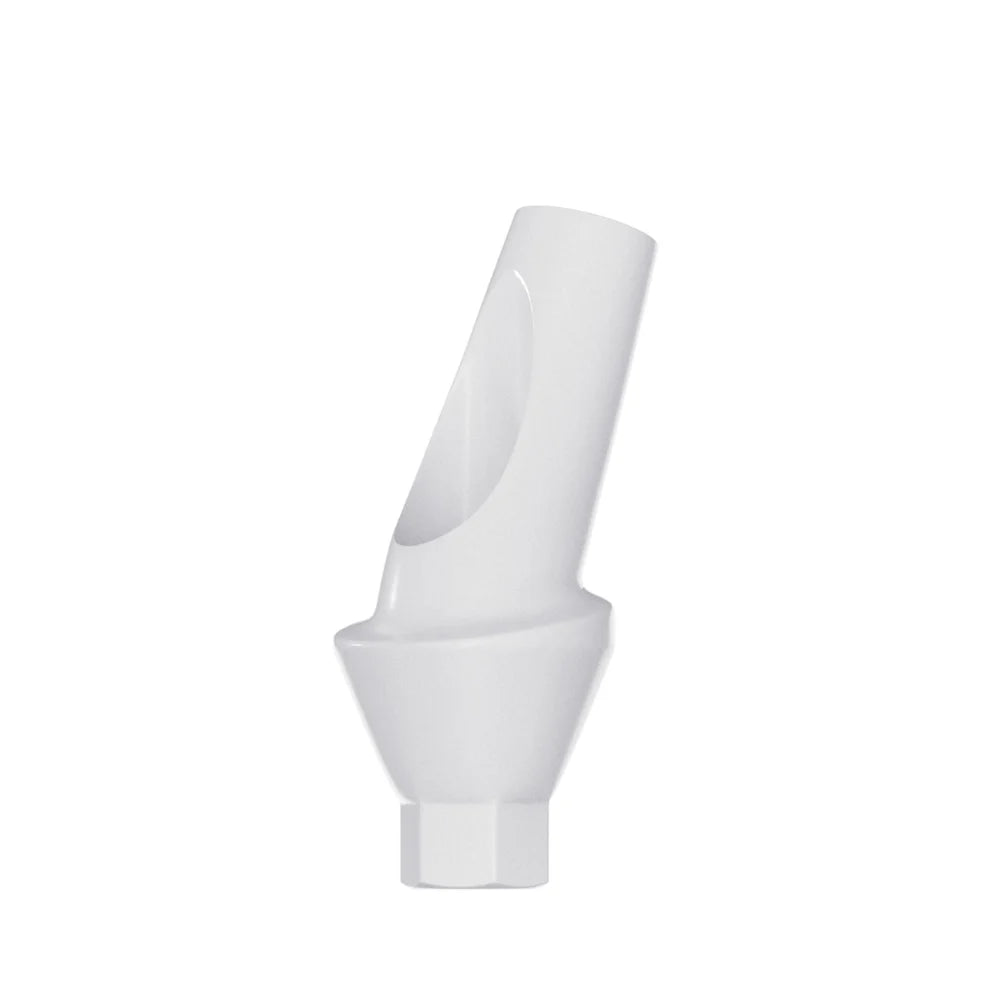

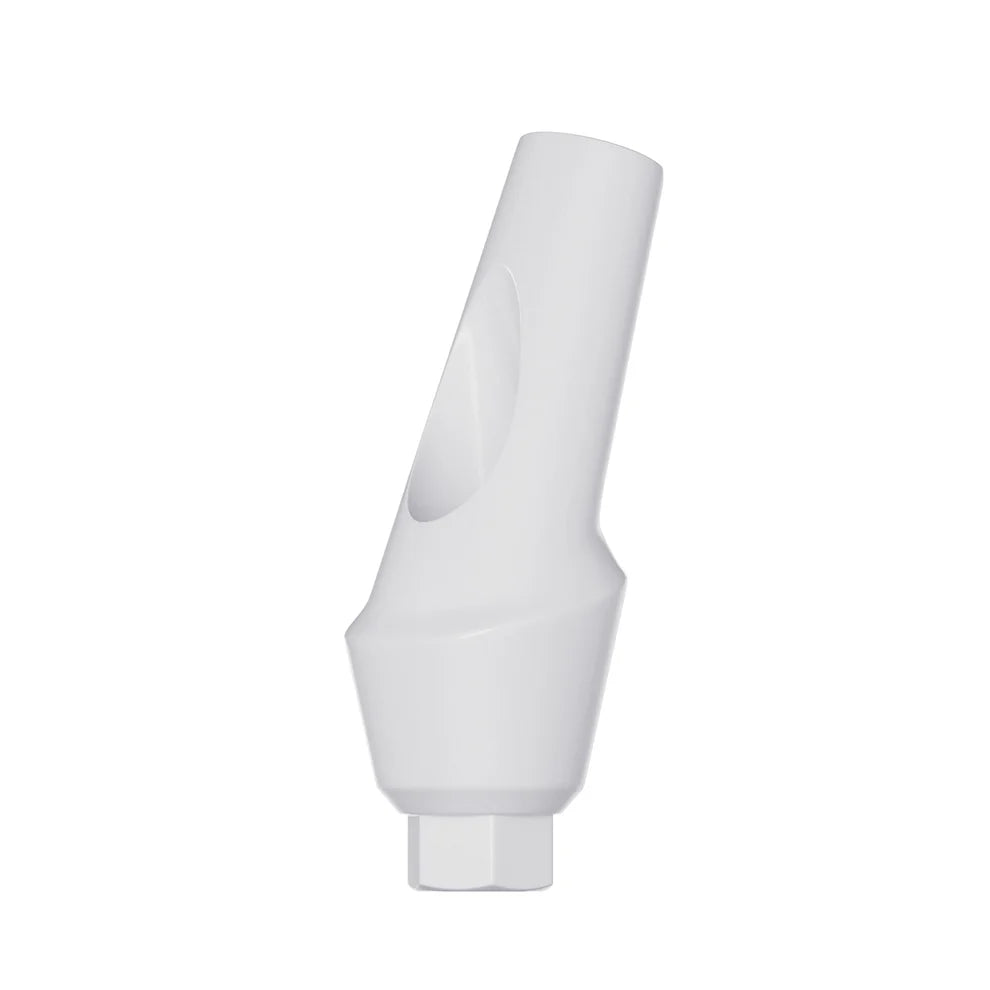

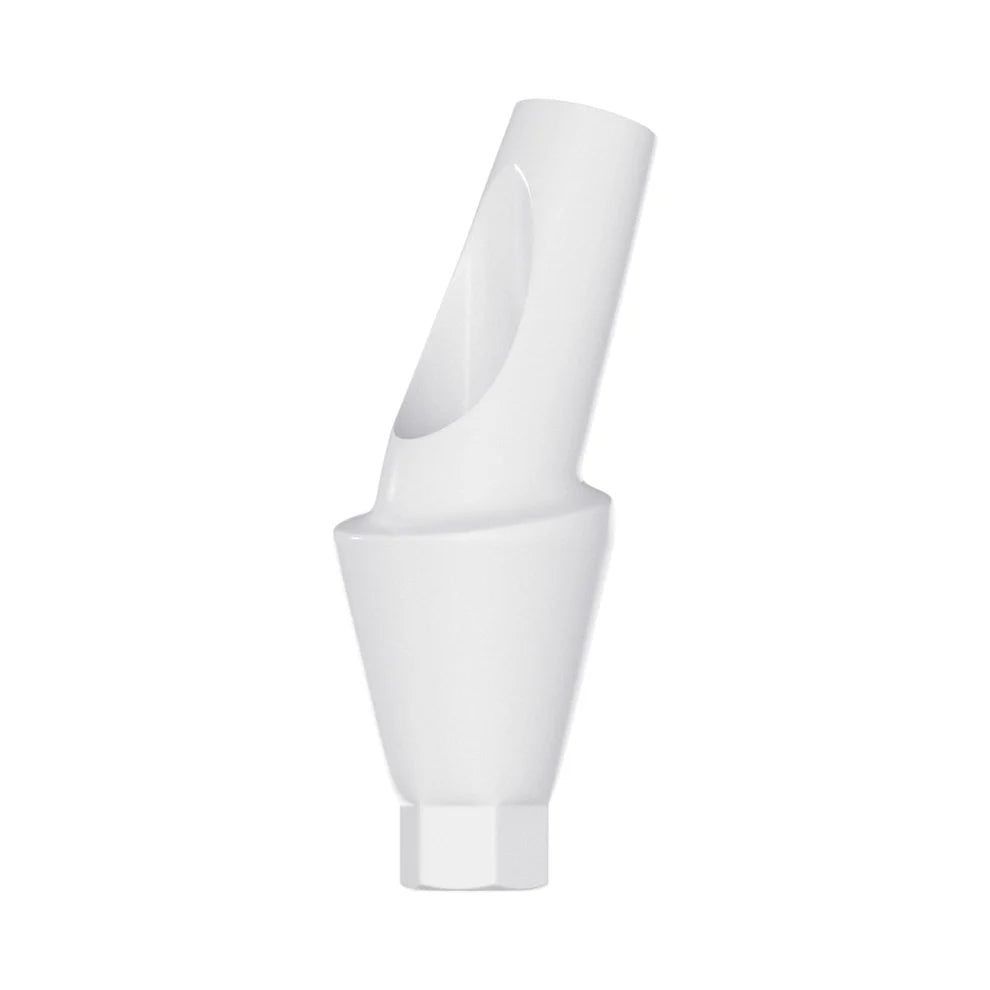

Temporary Angulated PEEK Abutment 15°

DSI PEEK temporary abutments have high mechanical strength, a natural tooth-color appearance, and great biocompatibility. They provide an excellent temporary aesthetic solution during the final restoration fabrication period. They are perfect for non-parallel implant alignment cases when different abutment angles are required for restoration parallelism.

The PEEK abutments can be easily customized according to the desired specifications. These abutments are very durable - almost like their titanium counterparts, but with a smoother surface that allows easy polishing and shaping of the abutments. Plus, the non-metal structure indulges clear and precise 3D scans without any distortions.

PEEK abutments are designed for immediate temporary restorations. Provided with a special anatomical collar, they are better adapted for gums and do not damage the surrounding soft tissues while allowing a decent healing process.

Due to the high melting point of 343 °C of PEEK (Polyetheretherketone) material, the abutments can be safely sterilized in an autoclave.

Indications:

• Single/multiple tooth long-term
• For non-parallel implant alignment cases
• Fabrication of short-term and mid-term provisional restorations
• Designed for immediate installation into the implant
• Anatomic collar creates gingiva emergence profile for easier permanent solution replacement
• Clear and precise 3D scans with no distortions.

Features:

• 3D Scan goes smooth and steady without distortion.

• Excellent properties such as stiffness and durability are similar to titanium.

• Have high mechanical strength and yet can easily be shaped and polished.

• Can be sterilized without degradation in mechanical properties or biocompatibility.

• Suitable for X-ray, MRI, and CT imaging without producing artifacts.

• Proven tissue biocompatibility.

• Natural color for excellent aesthetics.

Technical information:

• Made of PEEK (Polyetheretherketone) - high-performance semi-crystalline engineering thermoplastic.

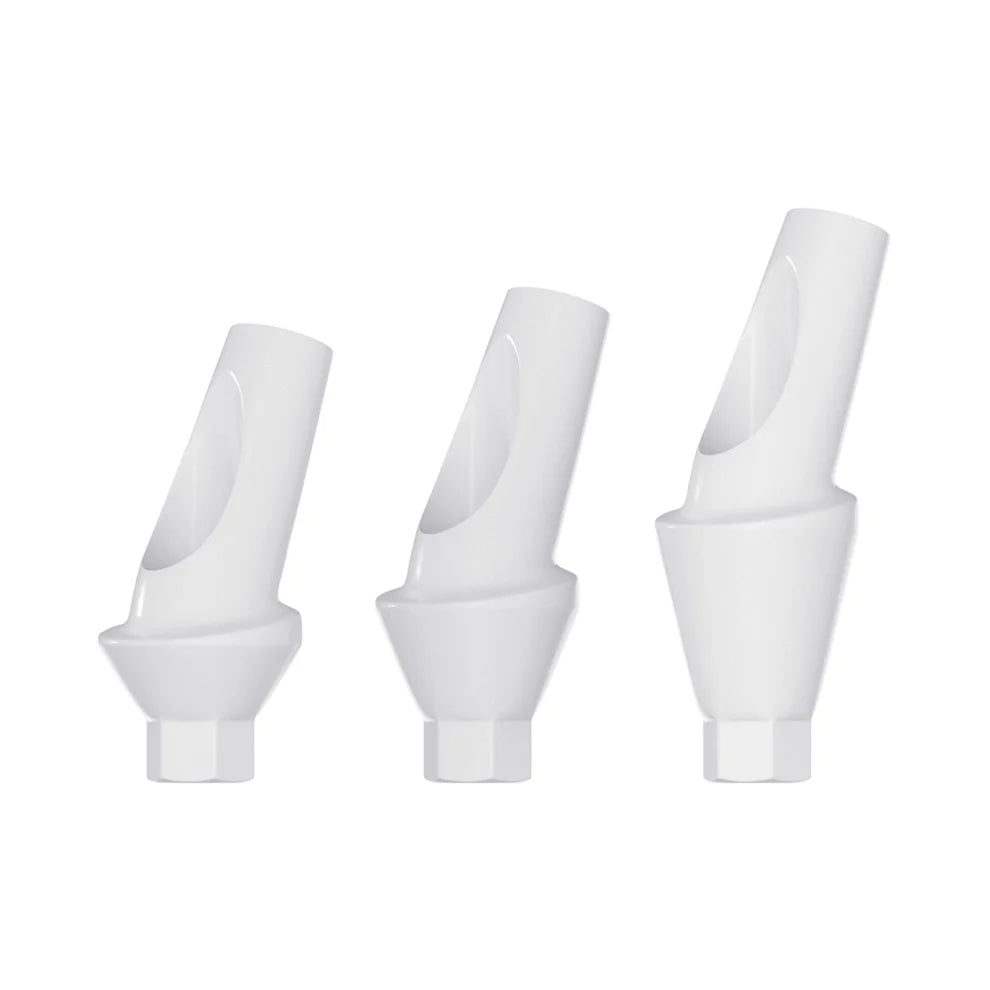

• Regular Platform RP 15° angle- regular body Ø3.8mm / Collar height 1.5-4.5mm
• Fully compatible with DSI Conical RP, NobelActive® RP platform Ø4.3-5.0mm
• Titanium fixation screw included with every PEEK abutment
