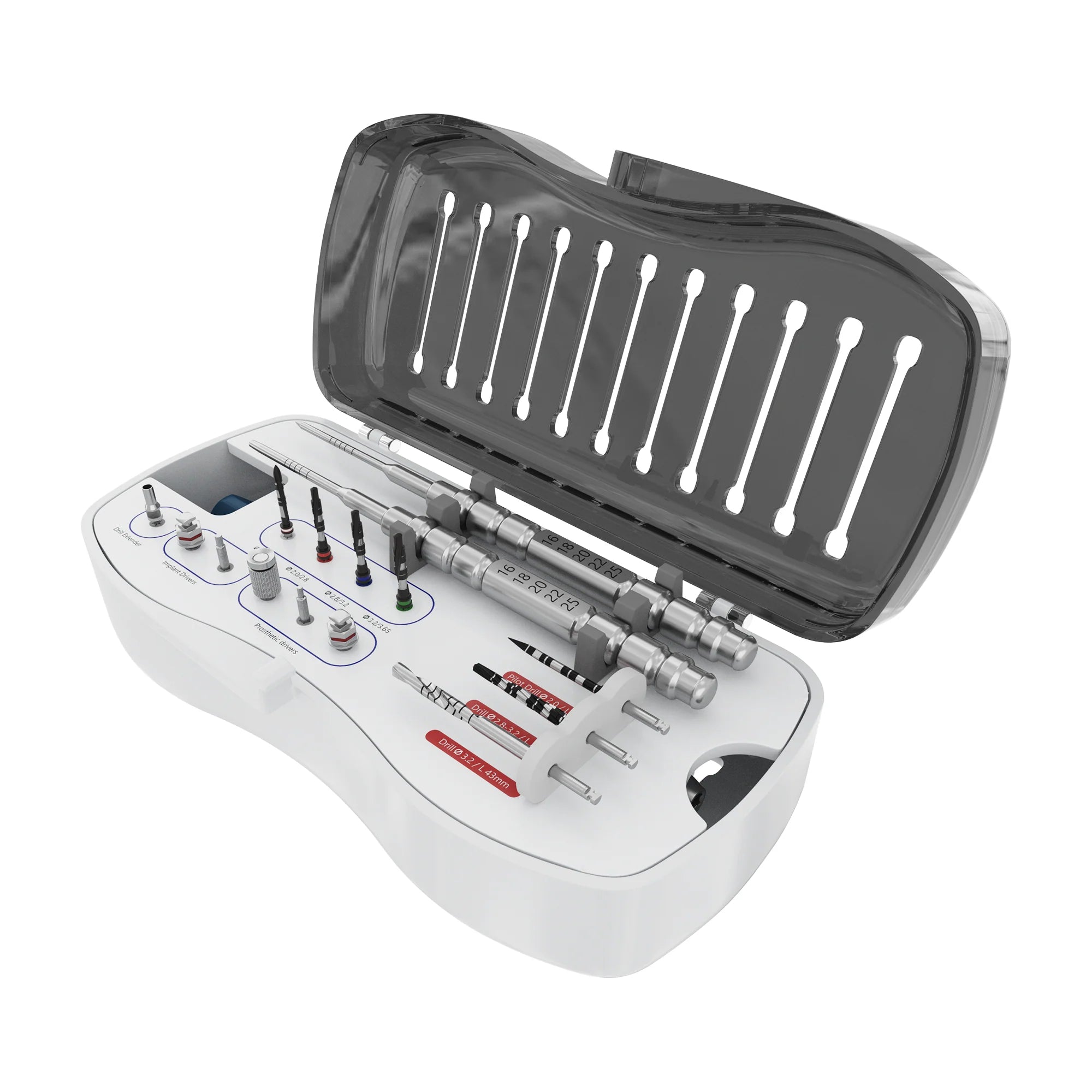

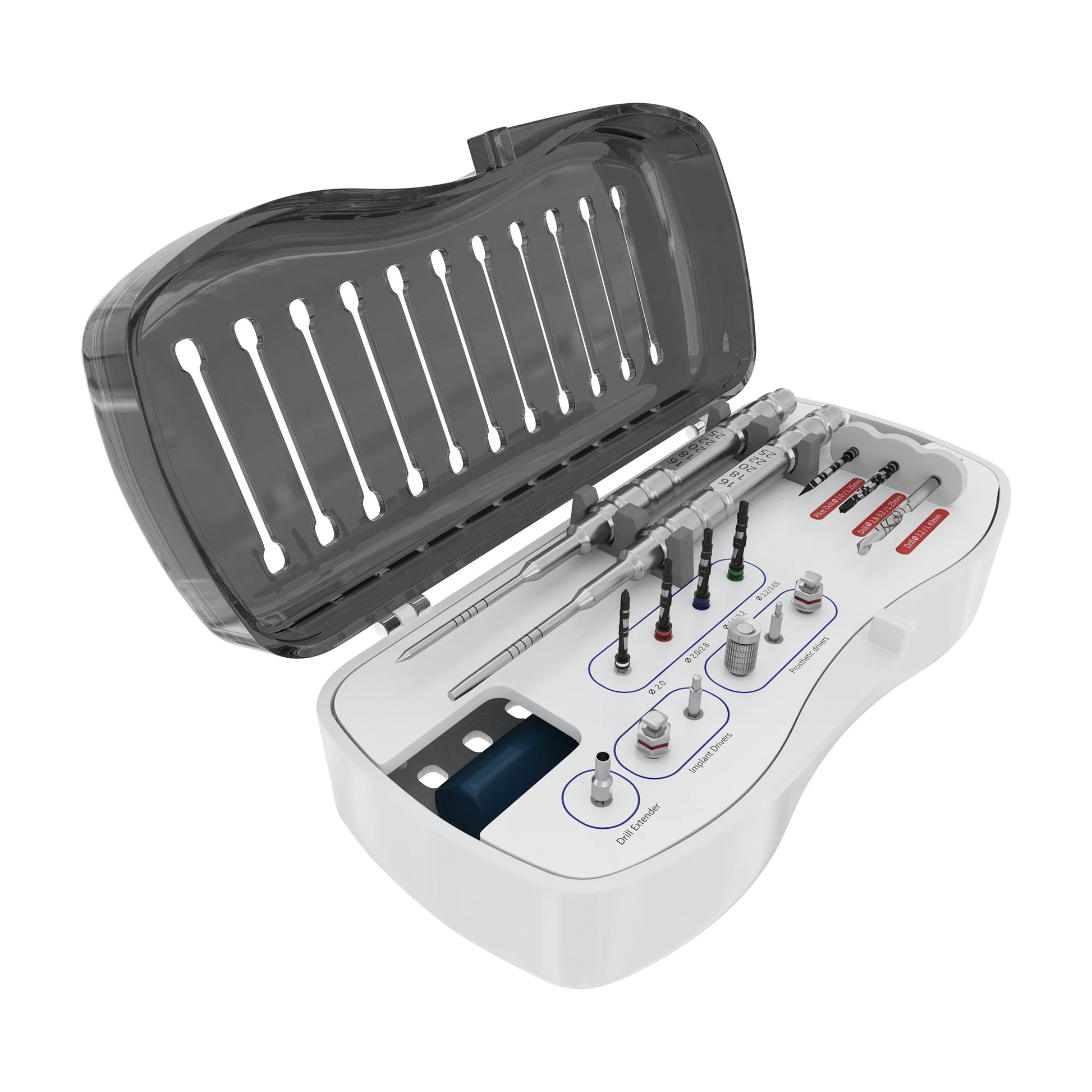

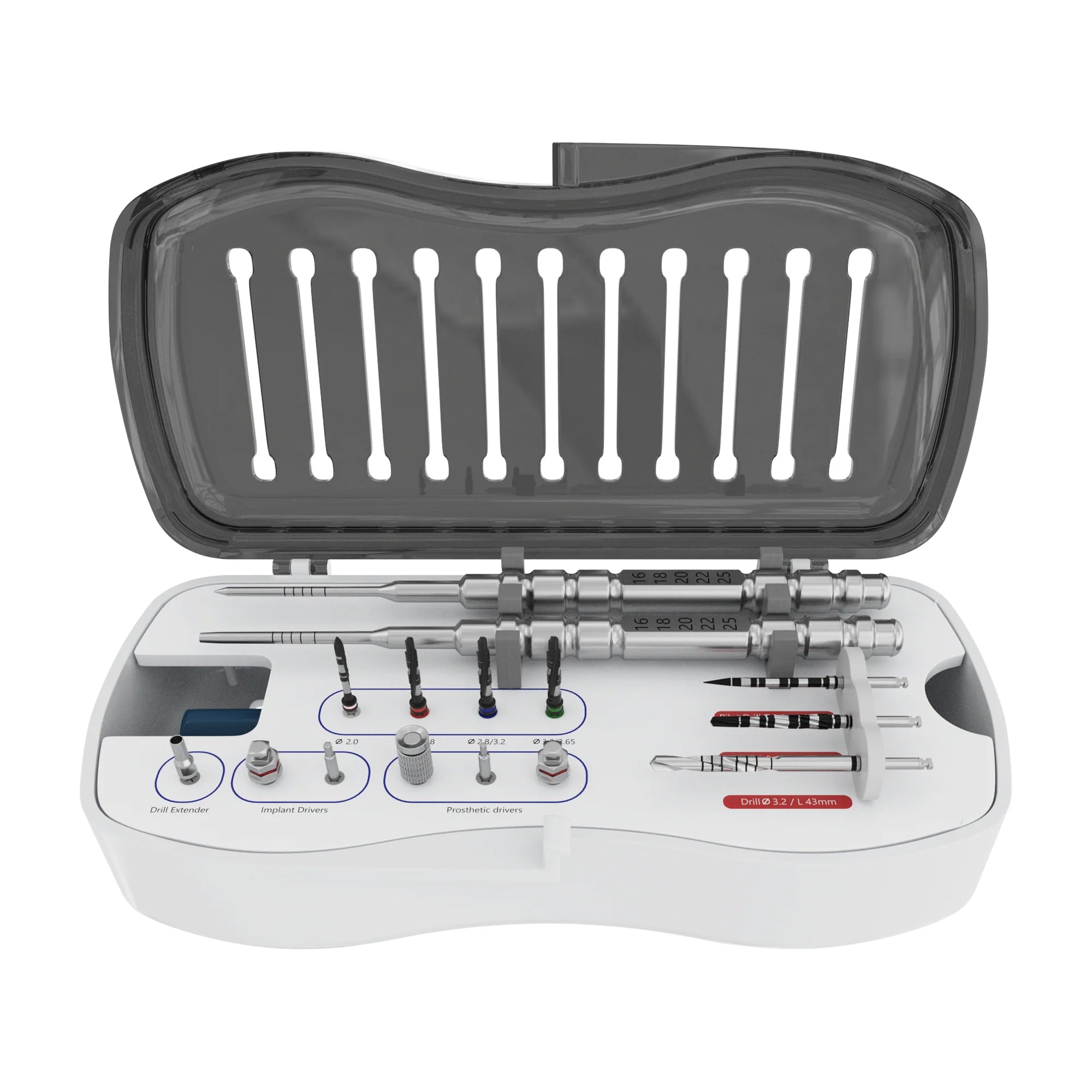

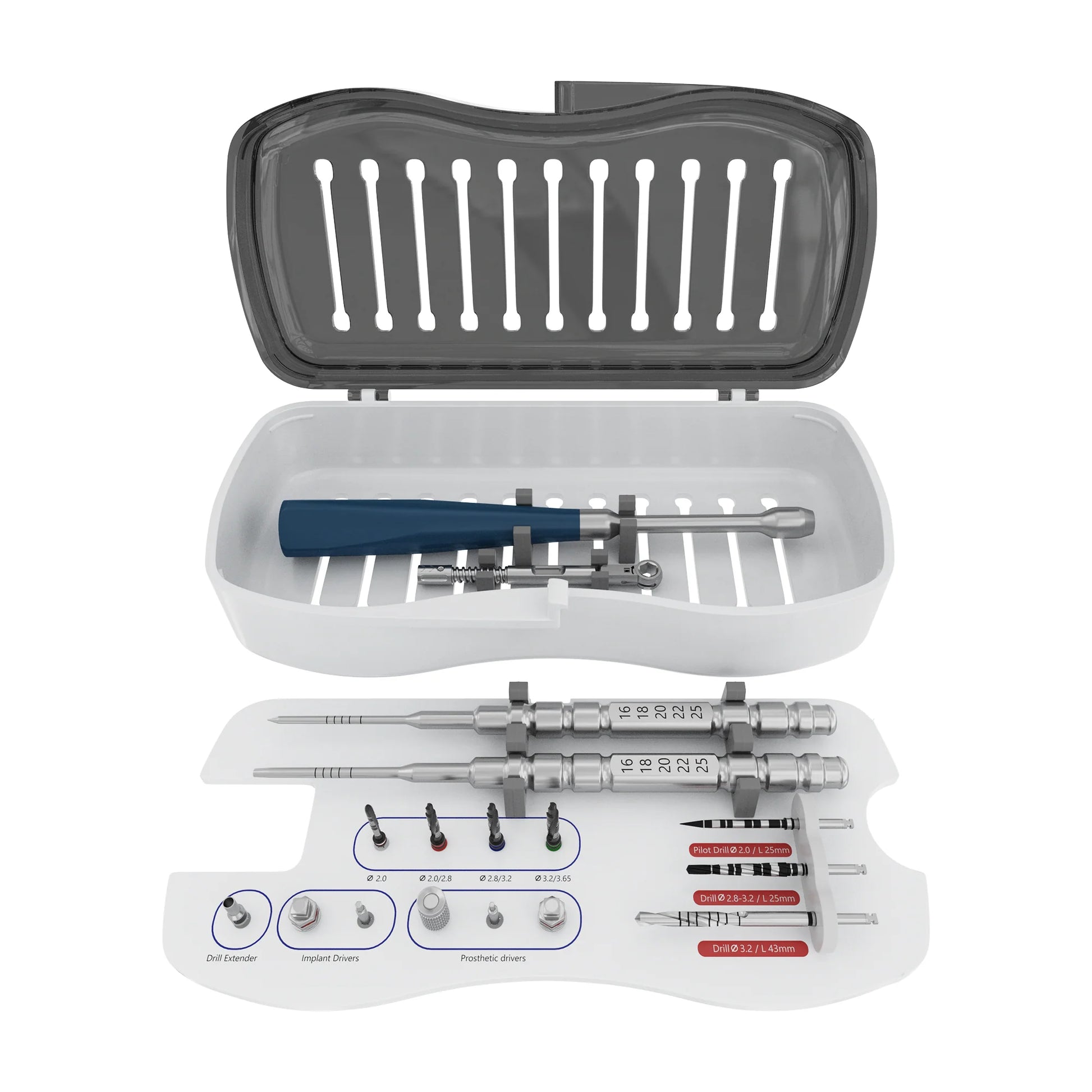

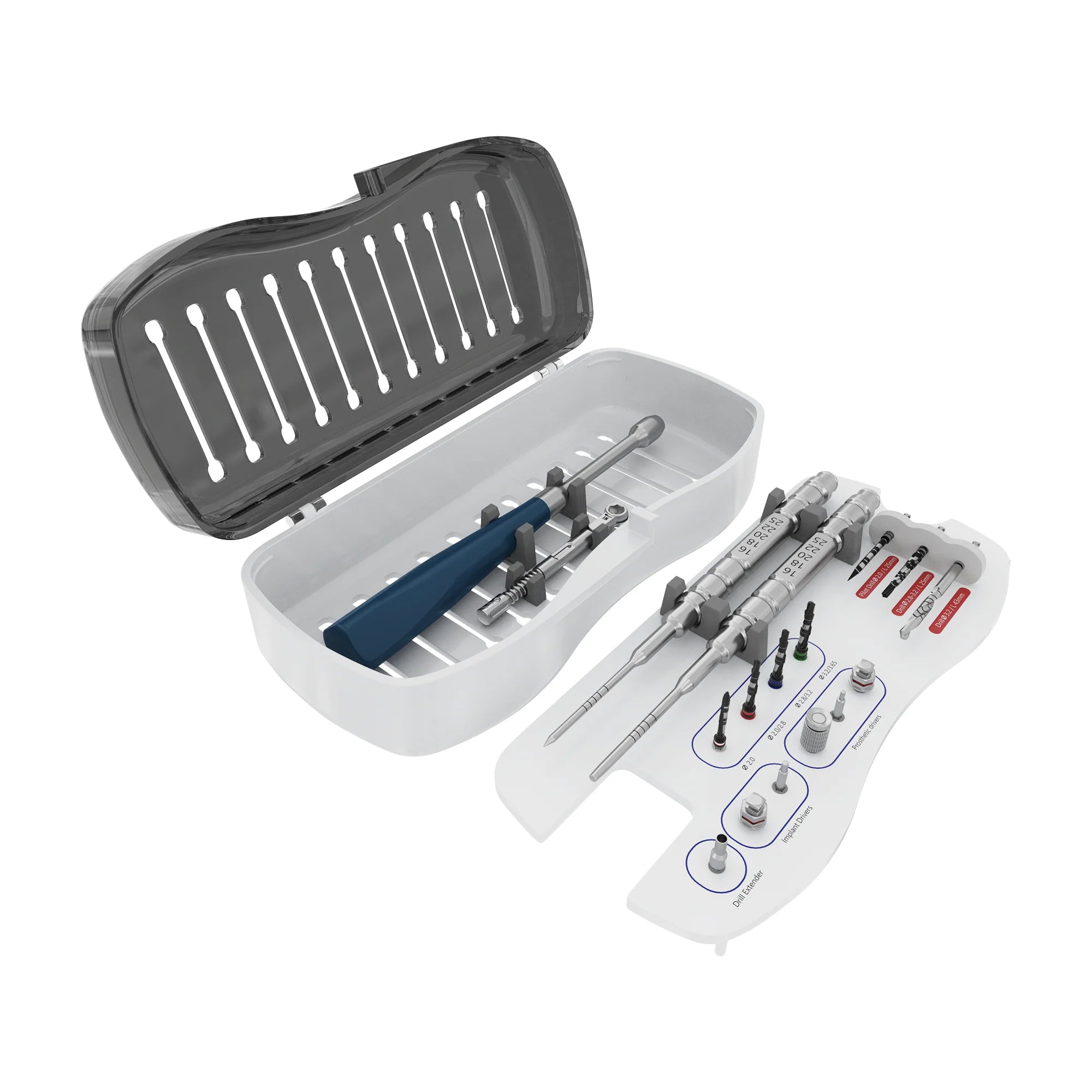

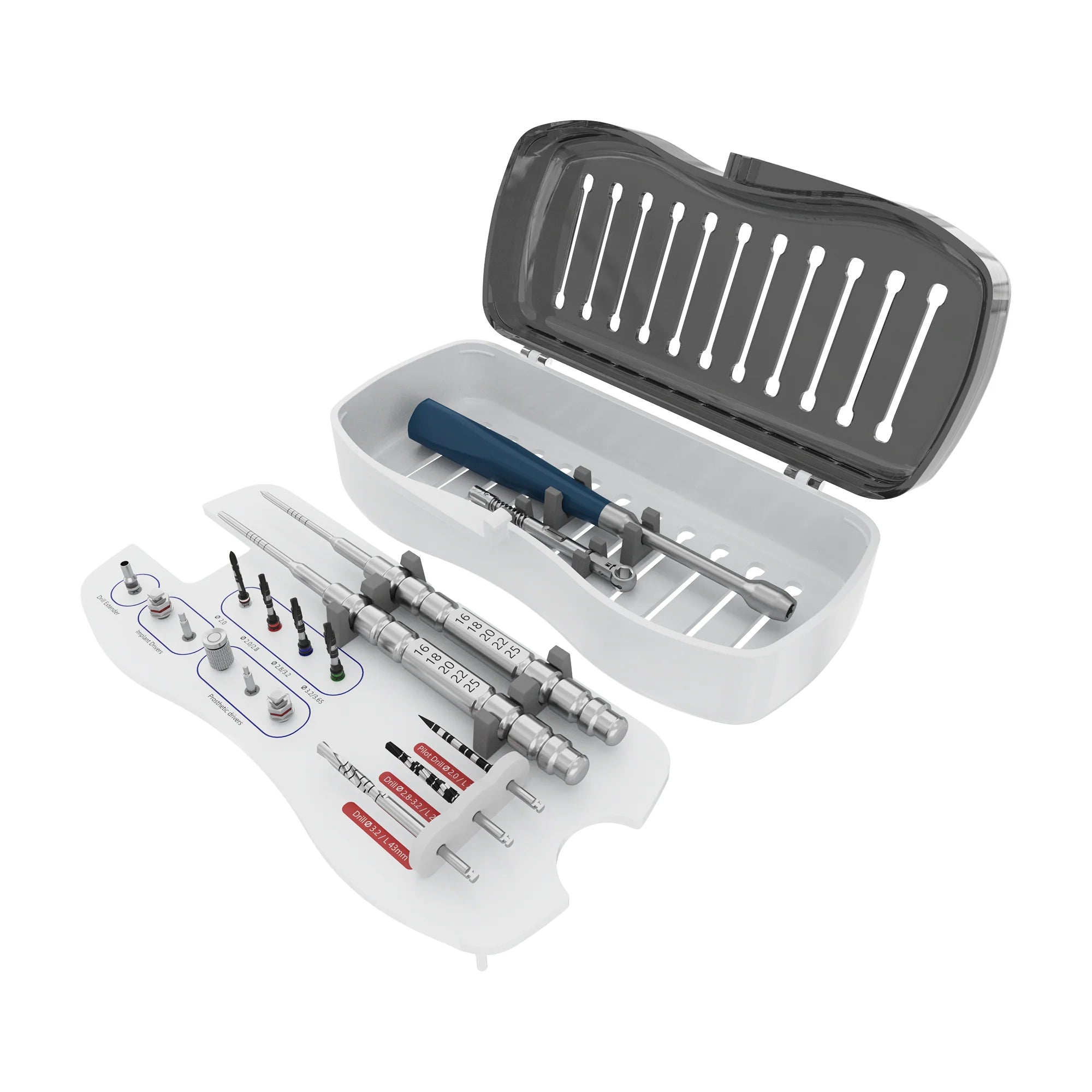

The DSI SK-DSY Grip Ptery Surgical Kit is designed for basal implants and includes all the essential tools like osteotomes and surgical drills to create a path for the basal implants. It is especially designed kit that allows implant placement in the pterygoid bone. The main advantage of this kit is the special osteotome that creates a socket in the pterygoid bone for immediate implantation. Designed for usage right after drilling with a pilot drill. The osteotome is inserted into the posterior region of the atrophic maxilla and helps pass the cortical bone and reach the pterygoid bone. A perfect tool for placing basal implants.

Features

• Made of the highest quality surgical stainless steel.
• Manufactured on the latest generation of high-precision CNC machines.
• Completely compatible with DSI GRIP implants.
• Standard drills are embedded with Dark Grey coating, with outstanding corrosion resistance and exceptional durability.
• Minimum Drill/Bone heat generation, low vibration, controlled and precise work with confidence.
• Special length marks that stay visible even in the harshest conditions.
• The complete kit does not require additional units.
• Special osteotomes that helps to get to the pterygoid bone.

Indications

This surgical kit is special osteotome that creates a socket in the pterygoid bone for immediate implantation.

Benefits

• Essential Tools
  Allows implant placement in the pterygoid bone


• Design
  Designed for usage right after drilling with a pilot drill


• Long Cylindrical Drill
  Made with the highest durability and delivers exceptional functionality


• Surgical tools
  Designed in a very specific manner for basal implant installation


• Protocols
  DSI Grip-implant is available in two types; one is under 20mm and another is over 20 mm. Each of these implants requires different installation protocols for different types of bones, gives a solution for both of these protocols and allows installation of standard DSI implants up to 4.2mm in diameter as well.


What's inside?

GYPD200L25C: Pilot drill DLC Ø2.0mm L 25mm
GYCD2032L25C: Conical Drill Ø2.0-3.0mm L 25mm
GYTD320L43: Long Twist Drill Ø3.2mm L 43mm
RDK24250: Implant Ratchet Driver Ø2.42mm L 25mm
MM24028: Implant Motor Mount Driver Ø2.42mm L 28mm
RDK125250: Prosthetic Ratchet Driver Ø1.25mm L 25mm
MM12528: Prosthetic Motor Mount Driver Ø1.25mm L 28mm
HDK125250: Prosthetic Manual Driver Ø1.25mm L 25mm
DNP200: Pilot Drill DLC Ø2.0mm L 16mm
SD2028L16C: Step Drill DLC Ø2.0x2.8mm L 16mm
SD2832L16C: Step Drill DLC Ø2.8x3.2mm L 16mm
SD32365L16C: Step Drill DLC Ø3.2x3.65mm L 16mm
TDE: Drill Extender
DS-X200: Osteotome Ø2.0mm L 155mm
DS-X300: Osteotome Ø3.0mm L 155mm
RHD: Surgical Driver Handle Ø6.35mm L 175mm
1000201: Torque Ratchet Wrench Ø6.35mm Torque 10-35 Ncm
