Shining 3D FabCure 2 | Advanced Post-Curing System for 3D Printed Parts

The Shining 3D FabCure 2 is a high-performance post-curing solution, designed to maximize material performance and precision for 3D-printed dental, engineering, and medical parts. With multi-directional high-power UV LEDs, rapid chamber heating, and a cloud-based smart material library, FabCure 2 ensures consistent, fully optimized curing with minimal effort.

Engineered as the standard post-curing tool for SHINING 3D printers, FabCure 2 automates and refines post-processing, delivering exceptional mechanical strength, stability, and accuracy for resin-based prints.

Key Features & Benefits

✅ High-Power Multi-Surface Light Curing – 30 multi-directional LEDs emit 70W of UV power, ensuring deep penetration & rapid curing.
✅ 360° Uniform Curing – Side & bottom light exposure guarantees consistent hardening without weak spots.
✅ Rapid Chamber Heating – Integrated ceramic heating module heats up to 60°C, enhancing mechanical & flexural properties.
✅ Smart Material Library & Cloud Updates – Wi-Fi connectivity ensures real-time material updates & firmware improvements.
✅ Automated Precision – Predefined post-processing steps ensure high accuracy & peak material performance.
✅ User-Friendly Interface – Simple, intuitive operation for hassle-free curing cycles.
✅ Universal Compatibility – Designed for SHINING 3D printers & compatible with other resin 3D printers.

How FabCure 2 Works

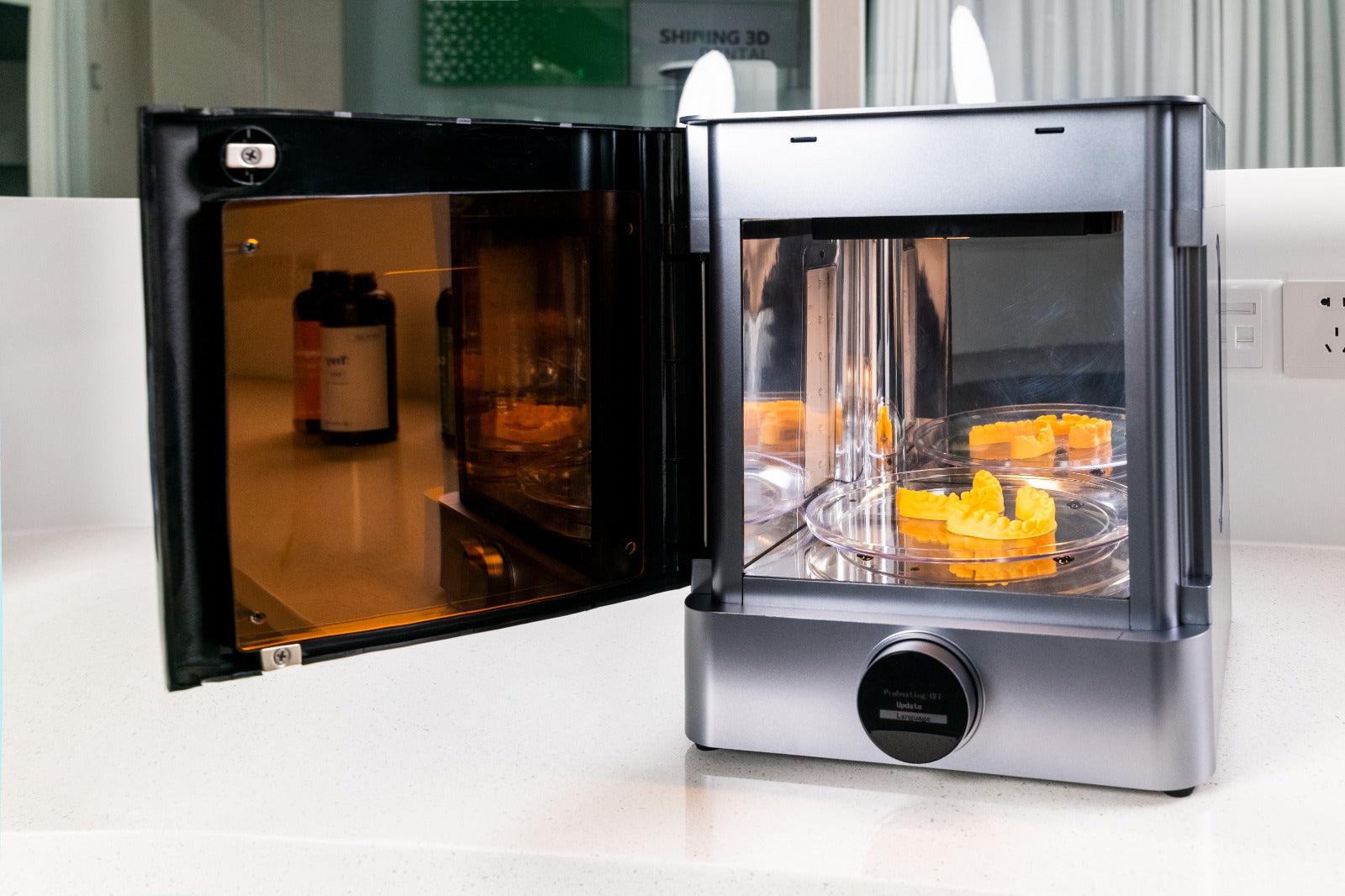

1️⃣ Place the printed object into FabCure 2.
2️⃣ Automated chamber heating reaches 60°C to enhance resin durability.
3️⃣ Multi-directional UV LEDs cure the part from all angles for complete polymerization.
4️⃣ Smart material profiles ensure optimized curing times for each resin type.
5️⃣ Final cured part is now stronger, more durable, and dimensionally stable.

Technical Specifications

📏 Dimensions (W × D × H): 290 × 290 × 367.5 mm
⚖ Weight: 10.5 kg (24 lbs)
📦 Curing Volume: Φ210 × H180 mm
🌡 Operating Temperature: 10 – 30°C
🔥 Max Curing Temperature: 60°C
🔆 Light Source: UV LED (Wavelength: 385nm – 405nm)
⚡ LED Power: 70W
🔌 Power Requirements: AC 100-240V, 150W
📡 Connectivity: Wi-Fi

Why Choose FabCure 2?

✔ Optimized for Dental & Engineering Applications – Delivers high-precision curing for models, surgical guides, splints, and more.
✔ Faster, More Consistent Curing – Fully automated cycles reduce post-processing time while ensuring perfect material properties.
✔ Smart & Future-Proof Technology – Wi-Fi-enabled over-the-air updates keep material settings and firmware optimized.
✔ Seamless Workflow Integration – Designed to work flawlessly with SHINING 3D’s AccuFab series & other resin-based 3D printers.
✔ Enhanced Mechanical Properties – Improves strength, durability, and dimensional stability of printed parts.

🚀 Upgrade your post-processing workflow with FabCure 2 – The ultimate high-performance curing system! 🚀

FabCure 2 is recommended as the standard post-curing tool for 3D printers from Shining 3D. With FabCure 2, each resin cure profile is finely tuned to bring the part to its peak performance through precise heat and light. FabCure 2 precisely defines the post-processing steps of the printed object to ensure high precision and optimal material performance, while automating the process.

HIGH POWER MULTI-SURFACE LIGHT CURING From the sides and bottom, 30 multi-directional LEDs emit powerful UV light that instantly penetrates deep into the surface of the part, completely curing the printed object within a few minutes. With a power of 70W, these LEDs provide a high power curing cycle, ensuring an efficient curing process.

RAPID CHAMBER HEATING The ceramic heating module is integrated with multiple temperature sensors. The chamber heats up quickly to 60 degrees, contributing to the enhancement of mechanical and flexural properties.The FabCure 2 heating system precisely controls ambient temperatures to 60 „ƒ.

SMART MATERIAL LIBRARY With the most up-to-date cloud-based smart material library, the FabCure 2 is always synchronized. The FabCure 2 is equipped with Wi-Fi which enables over-the-air updates to deploy the latest firmware and configurations. Your device learns from our process engineering experts all the time.

TECHNICAL SPECIFICATIONS
