Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans.
Speed Up The Scan
Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.

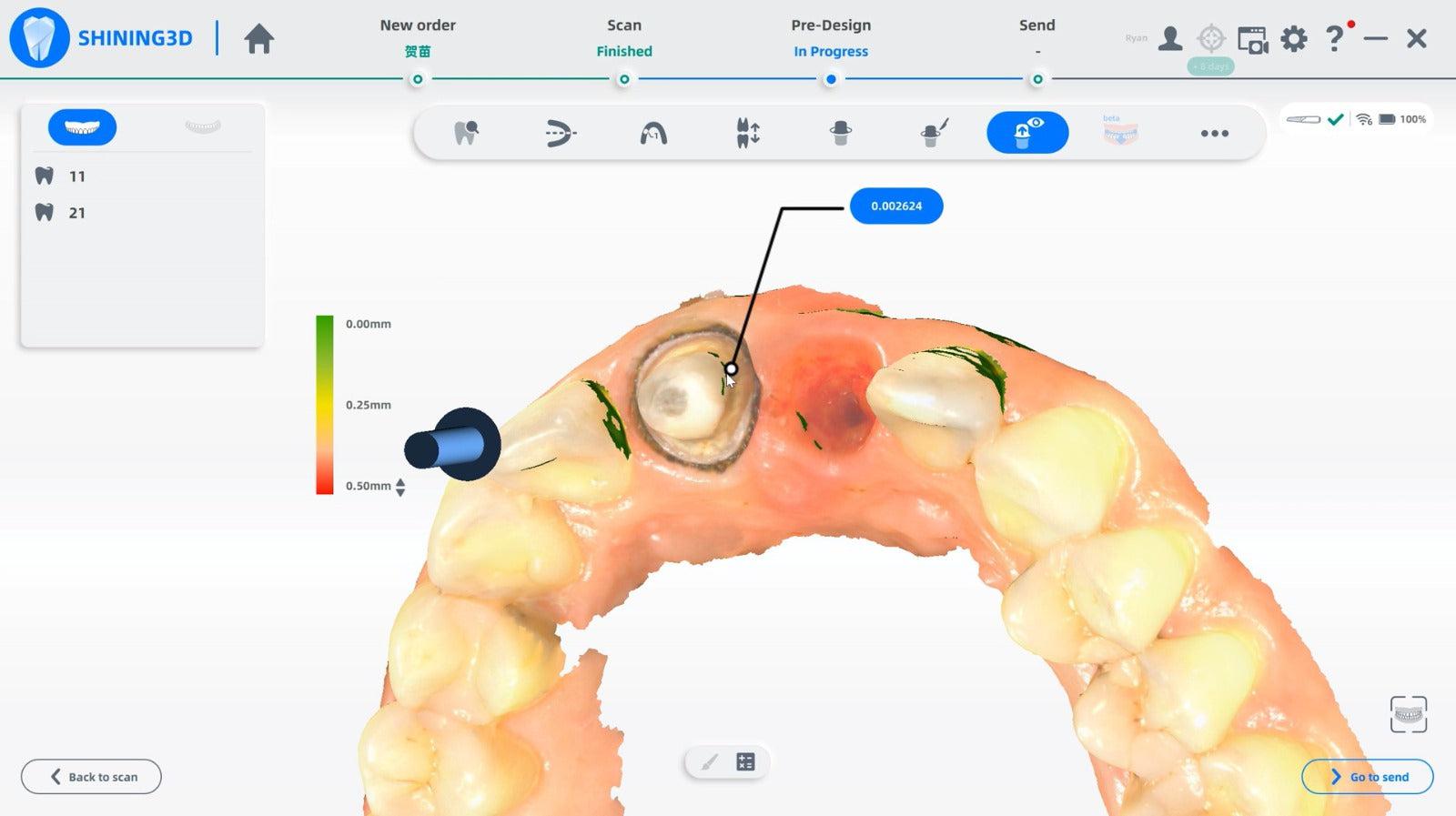

The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic.
It facilitates effective communication with dental labs to deliver quality dental work with high efficiency.
SHINING 3D™s cloud data platform enables data transmission, making it convenient for data transfer and communication between clinics and dental labs.

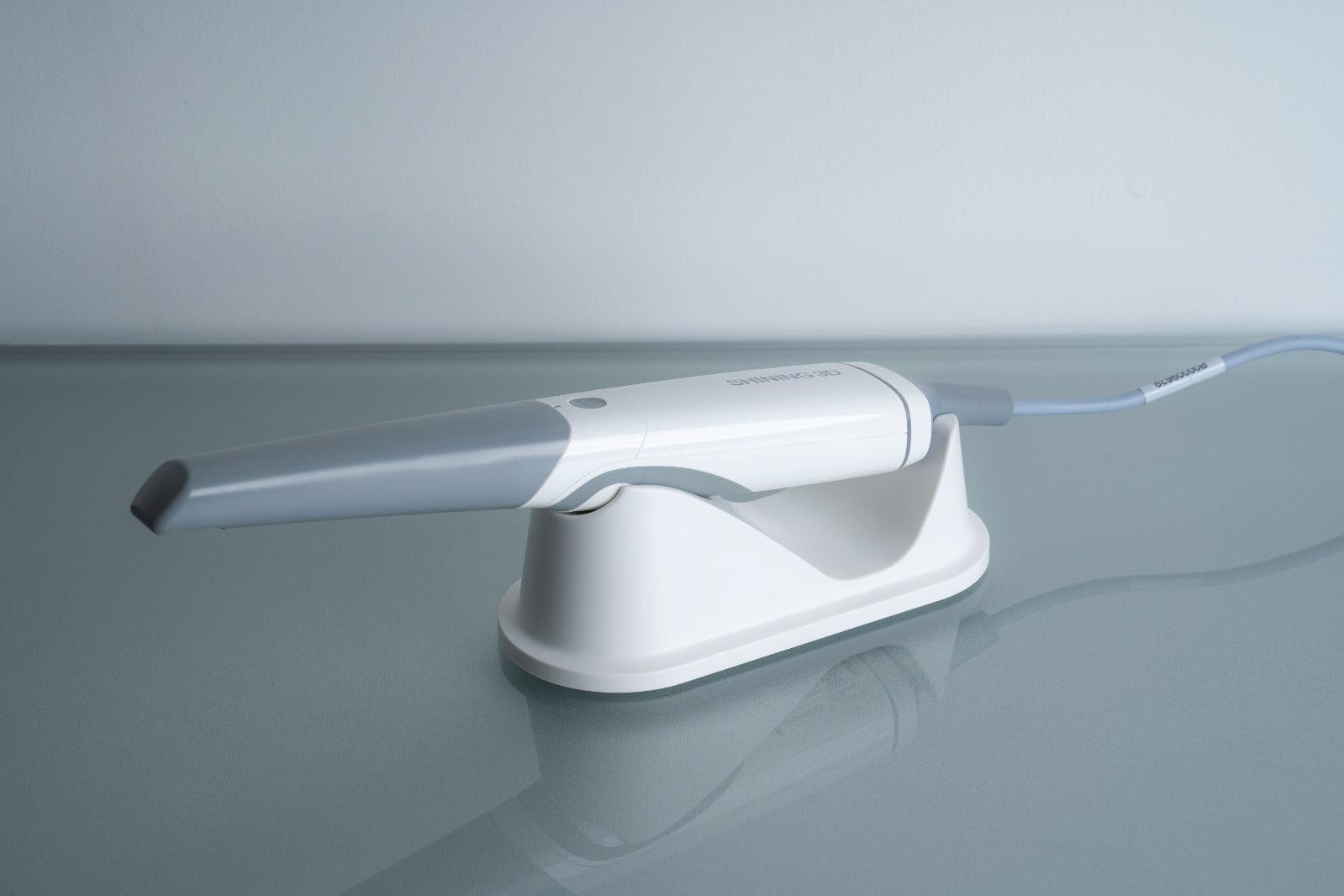

The Aoralscan 3 intraoral scanner can be applied for clinical indications range spans general restorations, implants and orthodontics. Whether through same-day chairside restorations or clinic-dental lab integrated treatments, it always provides a state-of-the-art user experience.

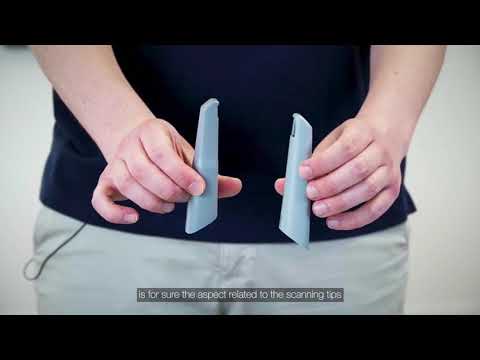

Standard scanner tip: 16 mm Ã— 12 mm Ã— 22 mm; Mini scanner tip: 12 mm Ã— 9 mm Ã— 22 mm;
Non-contact scanner with structured light
Dimension (L Ã— W Ã— H)
281 mm Ã— 33 mm Ã— 46 mm
240 ± 10 g (without cables)
STL, OBJ, PLY
12V DC/3 A
Recommended System Configuration
Intel Core i7-8700 or higher
16GB or more
256 GB SSD or above
Graphic Card (GPU)
NVIDIA® RTX 2060 6GB DDR3 or higher *
Windows 10 Professional (64-bit) or later versions of Windows operating systems
1920x1080, 60 Hz or higher
More than 3 Type-A USB 3.0 (or higher) ports
1 x Shining3D Aoralscan 3 Intraoral Scanner
1 x Calibrator
5 x Scanner Heads (4 x Standard Scanner Heads & 1 x Small Scanner Head)
1 x Scanning Software (Perpetual License, No Ongoing Subscription Fees)
Ergonomically Designed for Optimal Handheld Operation
