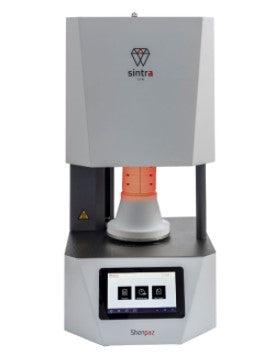

Shenpaz Sintra pro/120 (230v only) Sintering Furnace

SKU PRO120zrf
Original price $12,750.00 - Original price $12,750.00
Original price
$12,750.00
$12,750.00 - $12,750.00
Current price $12,750.00
View Financing Options

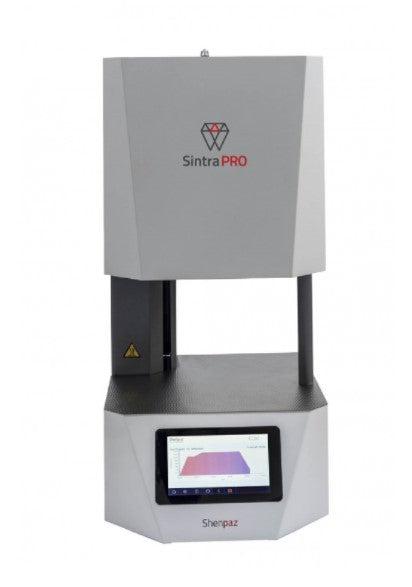

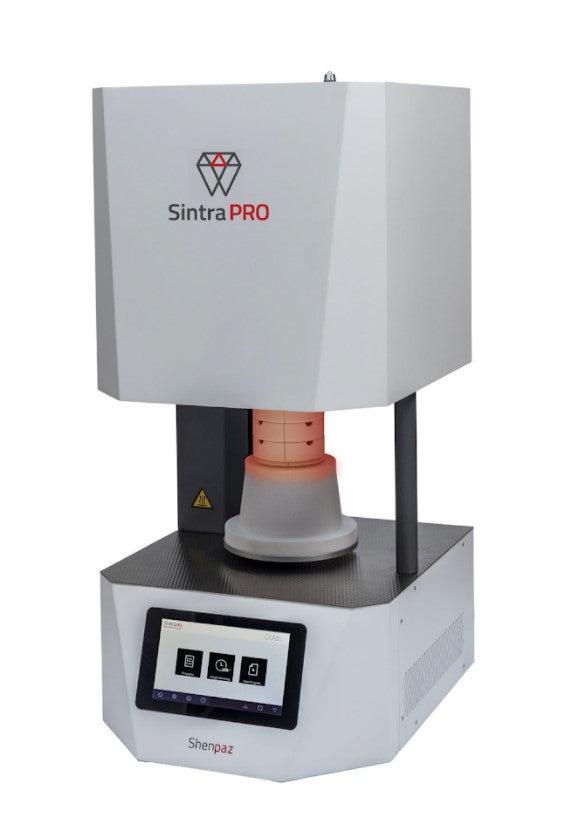

SINTRA PRO/120zrf Sintering Furnace

SINTRA PRO/90zr & SINTRA PRO/120zrf are at the forefront of the rapid evolution of sintering zirconia.

SINTRA PRO/120zrf capacity from 40 units per tray to 120 units in 3 stackable trays and full discs of 98mm.
SINTRA PRO 120 Zrf with a muffle dimension 120ø x 100 mm and 4 MoSi2 heating elements


TECHNOLOGY:

The visuals
It’s all about accessibility and intuitiveness. The full touch 7” LCD screen is user friendly with a superbly comfortable interface for easy programming.

Interactive Graph Screen
Multi-stage program is interactively illustrated on the graph and the cycle’s elapsed time is visually indicated by color change.
Sky is the Limit – Unlimited choices of heating, cooling stages and holding durations provide a host of programming capabilities. The furnace is universally compatible to a wide variety zirconia.

Connectivity
The furnace can be remotely monitored and operated from PC, smartphone and tablets. Connectivity via Wifi (logo) links to our platform for connecting with devices for online operation and monitoring of the furnace. This connectivity also provides service applications such as online upgrades of software versions, program downloads and system diagnostics.

The Fast cycle
Fast cycles for maximum efficiency in minimum time.
SINTRA PRO/90zr tested and validated fast* 90 minutes with specific ZrO2 materials.
SINTRA PRO/120zrf is designed to deliver an Ultra-fast* cycle by 30%.
*Subject to the material being sintered, the sintering time can be relatively shortened.

The degassing
Degassing feature, a Shenpaz unique design provides a proven protective function of the muffle. The degassing process is important in extending the life cycle of the muffle and to assure high repeatability and quality of the sintering process.

The capacity
SINTRA PRO/90zr & SINTRA PRO/120zrf are supplied with one sintering tray.
SINTRA PRO/90zr capacity from 30 units per tray to 90 units in 3 stackable trays.
SINTRA PRO/120zrf capacity from 40 units per tray to 120 units in 3 stackable trays and full discs of 98mm.
The design of the muffle and tray permit the stacking up to 3 tiers.
Additional stackable trays are available.

The Recovery
In the event of electrical failure, the furnace will automatically fully recover.

Read full description

Request a quote
TECHNICAL DATA
SINTRA PRO/90zr SINTRA PRO/120zrf
Max. temperature 1800°C 1800°C
Max. Sintering temperature 1650°C 1650°C
Temperature ramp* 1 to 70C 1 to 70C
Programmable steps unlimited unlimited
Number of programs unlimited unlimited
Acoustic signal
Weight (kg) 67 Kg 68 Kg
Width x Height x Depth (cm) 45 X 75 X 45 45 X 75 X 45
Net port connection * *
Power consumption 1.5 kW 2.0 kW
Cylindrical sintering chamber net dimensions Ø 90mm X 100mm Ø 120mm X 100mm
Power availability:
115v 50/60Hz

230v 50/60Hz

*

*

*

1-year warranty * *
USB * *
Maximum capacity 90 120
Sintering Table standard modular

* Depending on the temperature in the sintering chamber
