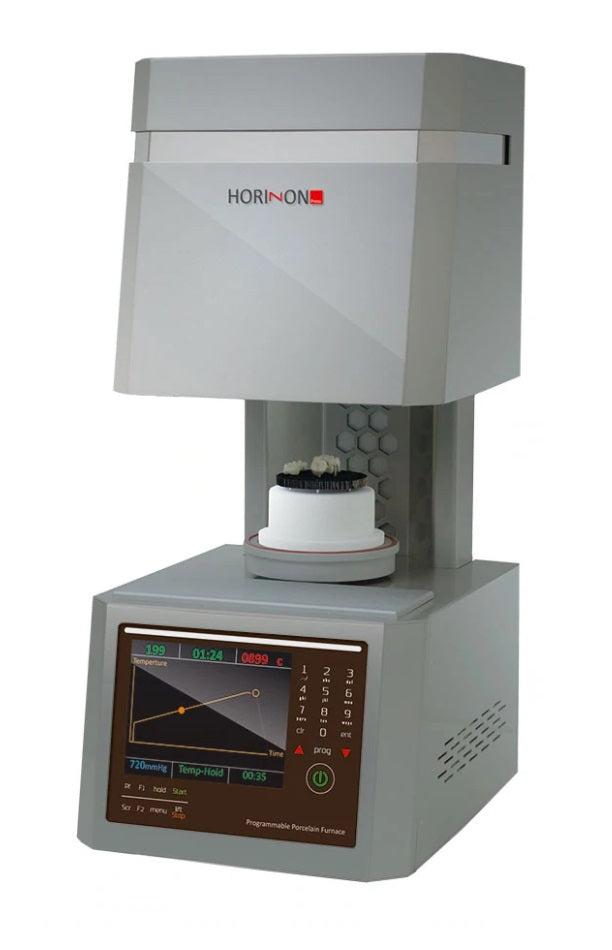

Shenpaz Horizon Porcelain Furnace

SKU HORIZON01-No Pump
Original price $5,440.00 - Original price $5,940.00
Original price
$5,440.00
$5,440.00 - $5,940.00
Current price $5,440.00
View Financing Options

HORIZON PORCELAIN FURNACE

All horizon models are designed with a unique temperature control muffle that is highly accurate and guarantees quality firing every time.

QUALITY RESTORATIONS

  • PRECISE TEMPERATURE UNIFORMITY & CONTROL with firing temp. to 1180ºC (2156ºF) and accuracy of ± 1ºC
  • FULLY ADAPTABLE PROGRAMMING handles all ceramics and pressable materials on the market today

TIME SAVING

FULL CUSTOMIZATION of cooling rate and hold time; pre-programmed tempering process adjusts for cooling rates of zirconia, metal and porcelain materials.

ENERGY EFFICIENT

ENERGY SAVING features:

  • Firing chamber lined with superior insulation
  • Chamber entrance tightly sealed to hold temp. ready for next cycle
  • Single phase electrical supply for low wattage consumption.

ADDITIONAL FEATURES

Intuitive full color digital display

200 firing and 50 pressing programs

USB port for fast transfer of program data

Acoustic signals that alert to furnace status

Special e-base cylinder base adapted to IPS e-max® products

Horizon standard firing furnace available with 200 programs

SPECIFICATIONS

Dimensions: 30x28x63cm (12”x11”x25”) (WxHxD)

Weight: 20 KG (44 lb)

Display screen: 5.7”

Firing chamber: Ø 95mm x 65mm/h (Ø 3.7”x2.6”mm/h)

Firing table: Ø 90mm (Ø 3.5“)

Temperature range: from 100°C to 1180°C (212°F to 2156°F)

Heat rate: 10-120°C (50-248° F)/min

Horizon Press
Pressing: 4.2 bars
Pressure: 4.2 Bar Weight: 25.5 KG (56 lb)

Material: Durable Kanthal* spiral material

optional to add a DRY vacuum pump:

Read full description

Pump: No Pump
Request a quote
TECHNICAL DATA

Max. Temperature: 1200 °C

Max. Firing temperature: 1180 °C

Temperature ramp *: 1 to 120 °C

Programs: 250

Acoustic signal: √

Weight (kg): 26 kg

Width x height x depth (cm): 28x63x30

USB port: √

Cylindrical combustion chamber: Ø95 mm x 65 mm

Power supply:

  • 115 V 50/60Hz, 15 Amp
  • 230 V 50/60Hz, 8 Amp
  • 3 years warranty
