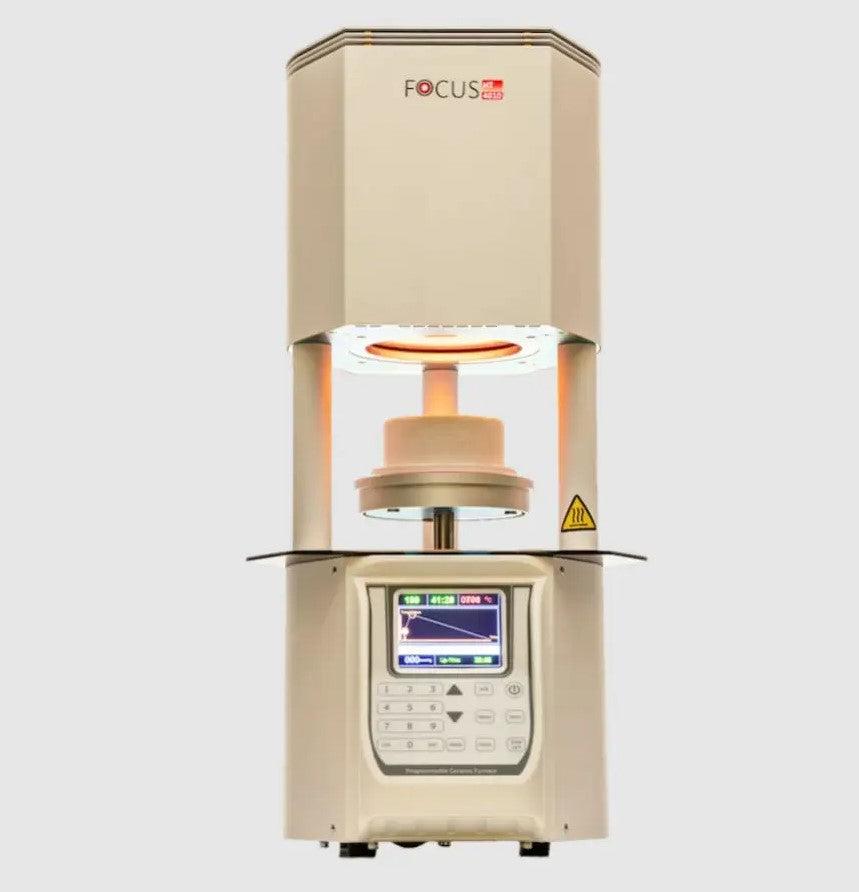

SHENPAZ FOCUS 4010 HT Porcelain Furnace

SKU 4010HT-No Pump
Original price $4,580.00 - Original price $5,080.00
Original price
$4,580.00 - $5,080.00
Current price $4,580.00
View Financing Options

FOCUS 4010 HT Porcelain Firing Furnace

Enjoy beautiful restoration results while staying within budget with Shenpaz small footprint porcelain firing furnaces.Ideal for new laboratories with limited space or established facilities looking for a cost-effective solution to high quality firing.

Quality Restorations

  • Special crystallization programs for lithium disilicate blocks with special double vacuum feature
  • Special programs for other ceramic glass materials

Time Saving

  • GREAT PERFORMANCE original quartz tube muffle assures accurate and reliable firing every time
  • POWER FAILURE PROTECTION ensures that firing resumes after return of electrical power

Energy Efficient


  • Firing chamber lined with superior insulation
  • Chamber opening tightly sealed to hold temp. ready for next cycle
  • Single phase electrical supply for low wattage consumption.

    Dimensions (WxHxD): 23x57x27cm (9”x22”x9.5”)

    Weight: 13.5 Kg (30 lbs.)

    Display screen: 3.5”

    Firing chamber: Ø 95mm x 65mm/h (Ø 3.7”x2.6”mm/h)

    Firing table: Ø 90mm (Ø 3.5“)

    Max Temp: from 1200°C (2192°F)

    Max Firing Temp: 1180°C (2156°F)

    Program options: 200

    optional to add a DRY vacuum pump:

Read full description

Pump: No Pump
Request a quote

Max. Temperature: 1200 °C

Max. Firing temperature: 1180 °C

Temperature ramp *: 1 bis 120 °C

Programs: 250

Acoustic signal: √

Weight (kg): 13,5 kg

Width x height x depth (cm): 23x57x24 mm

USB port: √

Cylindrical combustion chamber: Ø95 mm x 65 mm

Power supply:

  • 100 V 50/60Hz, 15 Amp
  • 115 V 50/60Hz, 15 Amp
  • 230 V 50/60Hz, 8 Amp

3 years warranty
