Ultra-Compact, 9K Precision with Integrated Curing for Same-Day Dentistry

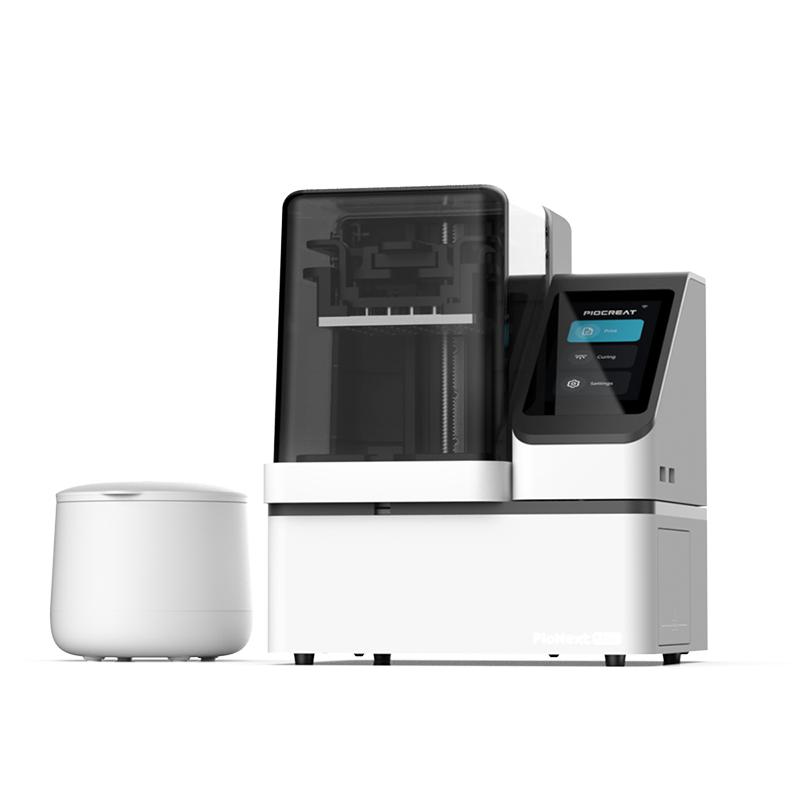

The PioNext Mini is an all-in-one chairside dental 3D printer engineered to streamline clinical workflows directly at the patient’s side. Combining ultra-fast printing with an integrated post-curing chamber in a single compact footprint (200 × 170 × 241 mm), the PioNext Mini empowers dental clinics and laboratories to produce clinical-grade restorations—such as ceramic crowns and veneers—in as little as 10 minutes.

Equipped with a high-definition 9K monochrome amber screen, a heated chamber (up to 35°C), and dual-wavelength (385 nm / 405 nm) compatibility, the PioNext Mini delivers laboratory-grade accuracy while eliminating the need for bulky separate post-processing equipment.

Key Features & Benefits

• 2-in-1 Print & Integrated Curing System: Merges 3D printing and final UV post-curing (150 mW/cm²) into one sleek device, drastically saving precious benchtop space and accelerating chairside turnaround times.

• Rapid Chairside Speed: Fabricates standard ceramic crowns, veneers, and temporary restorations in as fast as 10 minutes, enabling same-day treatment delivery.

• 9K Resolution & 18 µm Precision: Features an 8520 × 4320 pixel display for 18 µm XY-axis accuracy, reproducing exact restoration margins, contact points, and intricate surface details.

• Long-Life Amber LCD Technology: Uses specialized amber LCD matrix technology that provides 2× the lifespan of standard LCD displays by reducing UV aging and degrading.

• Dual-Wavelength Compatibility (385 nm & 405 nm): Features intelligent wavelength switching to support open resin systems, including biocompatible materials for crowns, splints, surgical guides, and clear aligners.

• Heated Printing Chamber: Actively heats the chamber up to 35°C to lower resin viscosity, improve resin flow, and achieve smoother surface finishes with minimal layer lines.

• Factory Leveling-Free Design: Built-in four-point alignment system allows immediate plug-and-play printing without tedious manual calibration.

• Dual Resin Vats Included: Comes standard with two specialized resin vats (ACF Fast Vat and Clear HDF Vat) for switching between clear aligner resins and restoration materials.

Technical Specifications

Ideal Applications

• Same-Day Temporary & Permanent Crowns, Inlays, and Veneers

• Surgical Implant Guides

• Clear Aligner Arch Sets & Retainers

• Occlusal Splints & Night Guards

• Removable Denture Frameworks & Diagnostic Models
