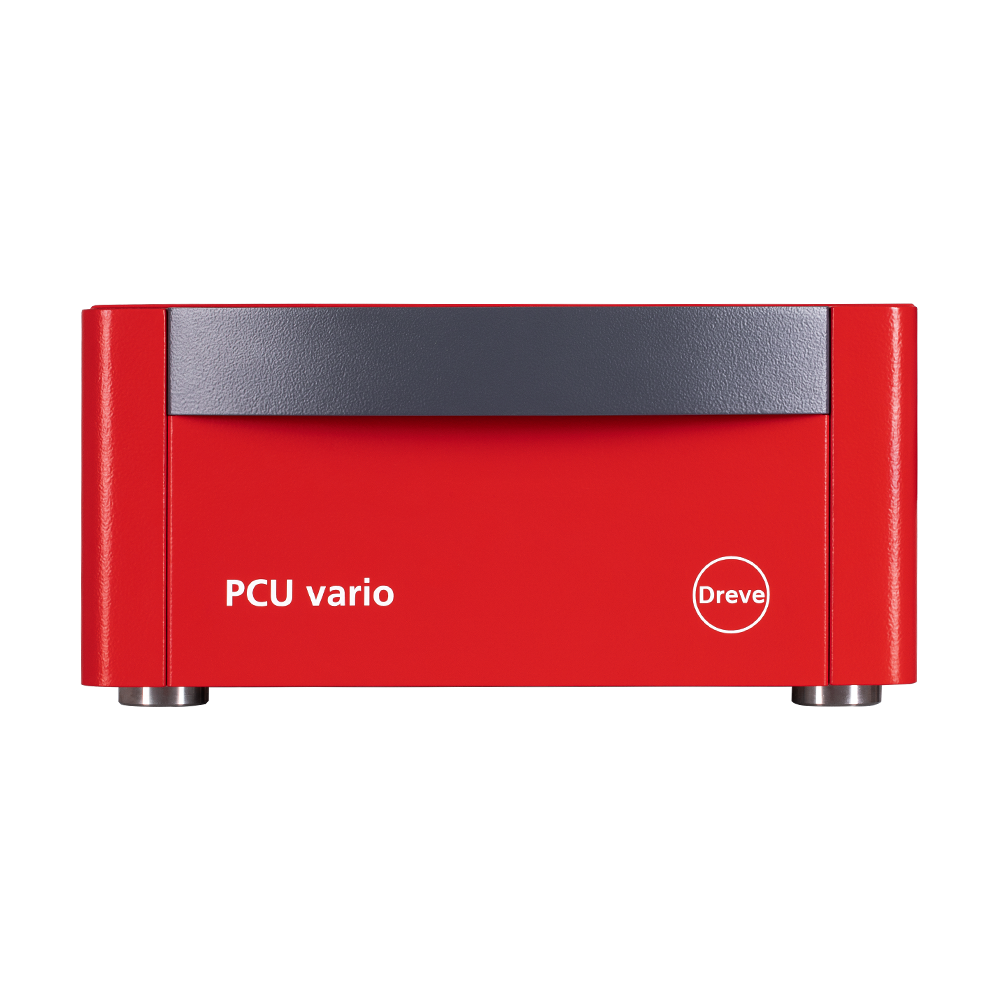

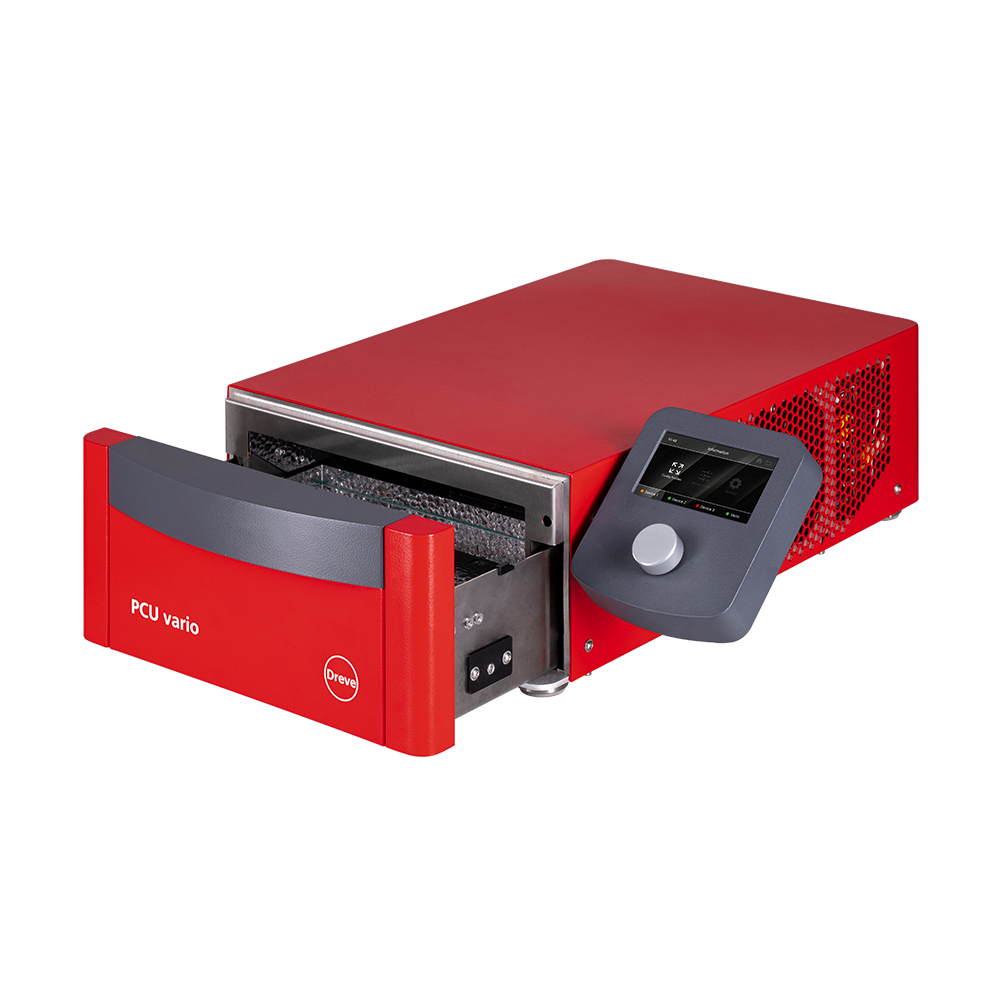

The Dreve PCU vario 40 is a state-of-the-art, high-end post-curing unit designed to optimize 3D printing workflows in dental and laboratory environments. Utilizing advanced LED technology with three distinct wavelengths (375 / 405 / 450 nm) and high light intensity, the PCU vario 40 delivers exceptionally fast, homogeneous, and biocompatible polymerization. Built with a modular design and equipped with Dreve's latest FotoDur® technology, it guarantees rapid curing times (as fast as 2 minutes) while ensuring optimal mechanical strength and crystal-clear, non-yellowing transparency for printed appliances.

Key Features & Benefits

• Advanced Multi-Wavelength LED Technology: Utilizes 375, 405, and 450 nm wavelengths to achieve complete, reliable deep-curing across a wide range of modern 3D printing resins.

• Ultra-Fast Curing Cycles: Drastically reduces production times with post-curing cycles as short as 2 minutes.

• Homogeneous Irradiation & Precision: Ensures consistent light distribution across the entire chamber for reproducible, high-quality results.

• Flexible Atmosphere Options: Supports curing in ambient air or under an optional nitrogen (inert gas) atmosphere to prevent inhibition layers and ensure full biocompatibility.

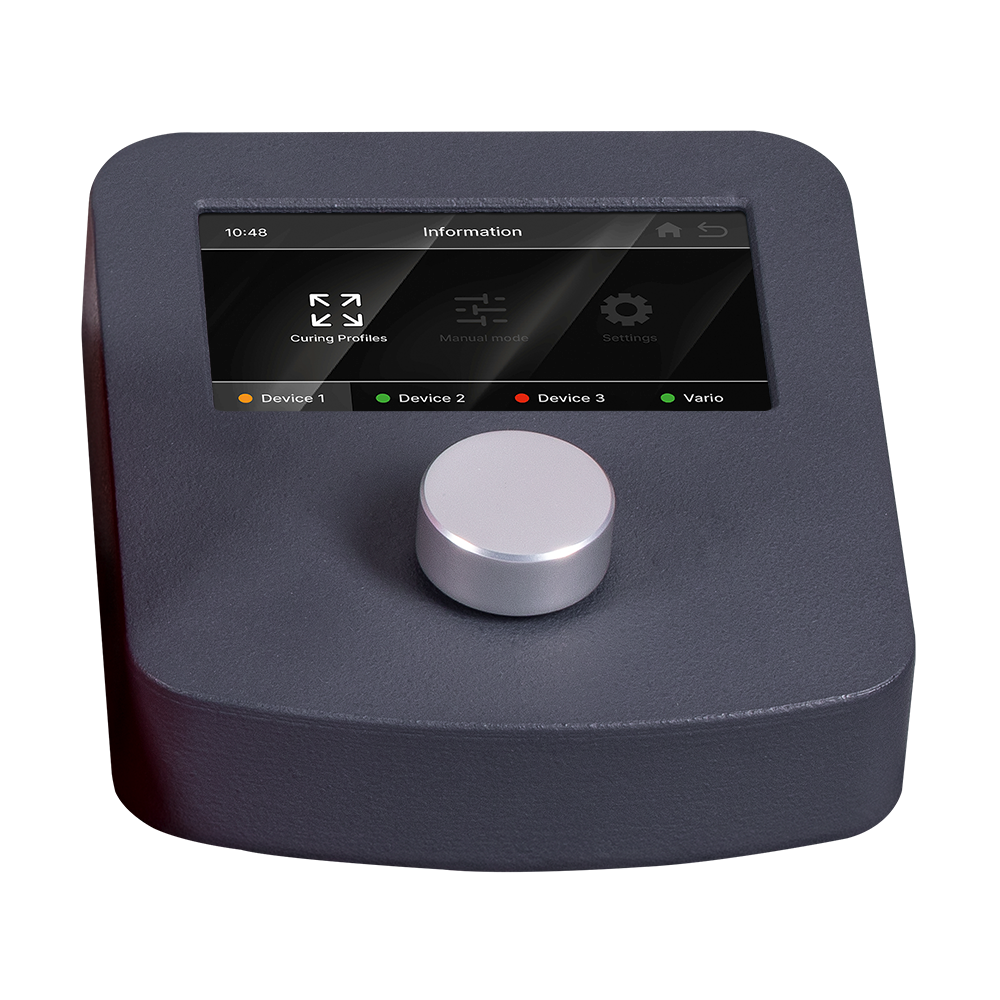

• Smart & User-Friendly: Freely programmable processes, simple calibration, and an intuitive user control interface (PCU vario control unit) for seamless laboratory integration.

• Aesthetic Excellence: Delivers crystal-clear transparency without undesirable yellowing effects.

Technical Specifications

• Item Number: 4329S (Module) / 4319UI (Control Unit)

• Power Supply: 100–240 V / 50–60 Hz

• Power Consumption: 1,200 W

• Light Wave Spectrum: 375 / 405 / 450 nm

• Curing Environments: Nitrogen, Ambient Air

• Polymerization Chamber Dimensions (H x W x D): approx. 60 x 250 x 195 mm

• Device Dimensions (H x W x D): approx. 165 x 330 x 500 mm

• Weight: approx. 23 kg
