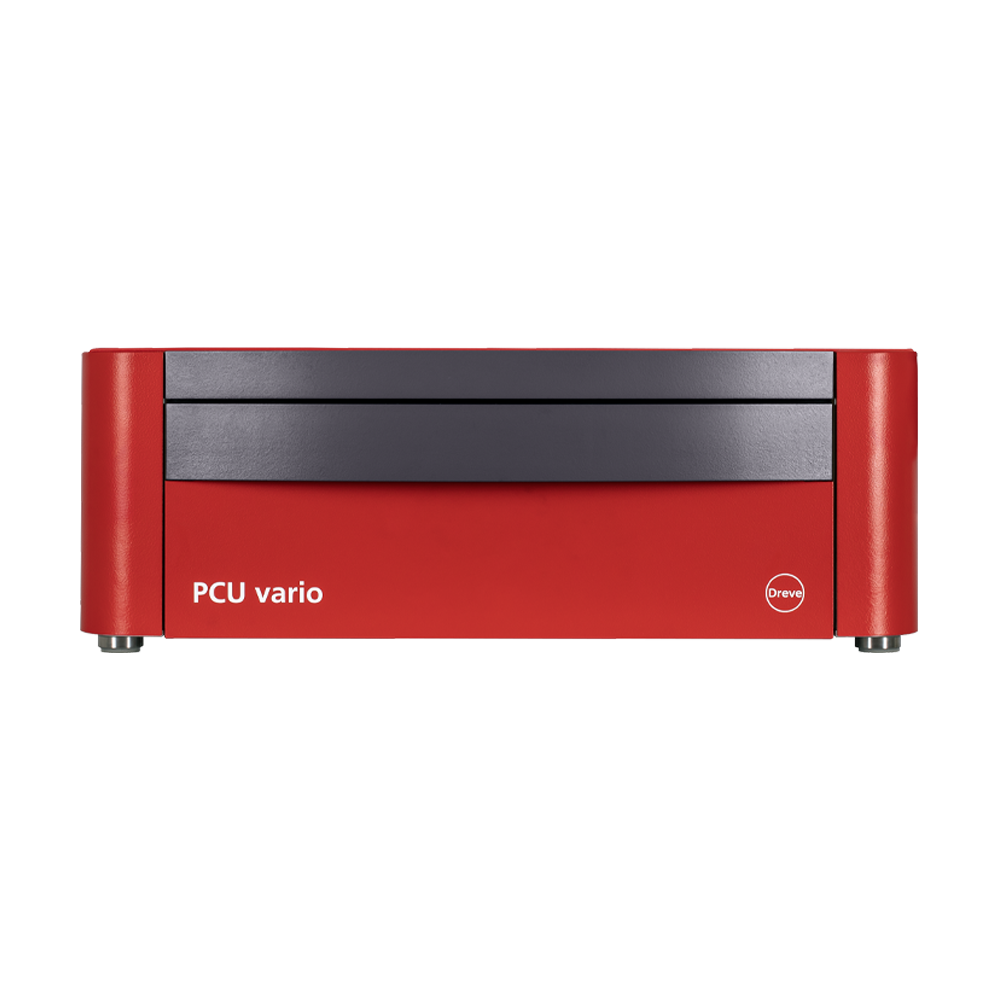

The Dreve PCU vario 160 is a high-performance, large-capacity LED-based post-curing unit engineered for demanding dental laboratories and digital manufacturing workflows. Designed to process large volumes of 3D-printed components with maximum efficiency, the PCU vario 160 features an expansive curing chamber and versatile atmospheric options—supporting ambient air, vacuum, and nitrogen environments. Its modular expandability, comprehensive process logging, and open system architecture with 30 programmable memory slots make it an exceptionally powerful and adaptable solution for professional production labs.

Key Features & Benefits

• Large-Capacity Curing Chamber: Offers a spacious chamber (approx. 48 x 29 x 12 cm³) capable of accommodating large print jobs or high volumes of smaller components simultaneously.

• Tri-Mode Atmosphere Control: Supports curing under ambient air, vacuum, or nitrogen ($\text{N}_2$) environments to achieve complete biocompatibility and eliminate oxygen inhibition layers.

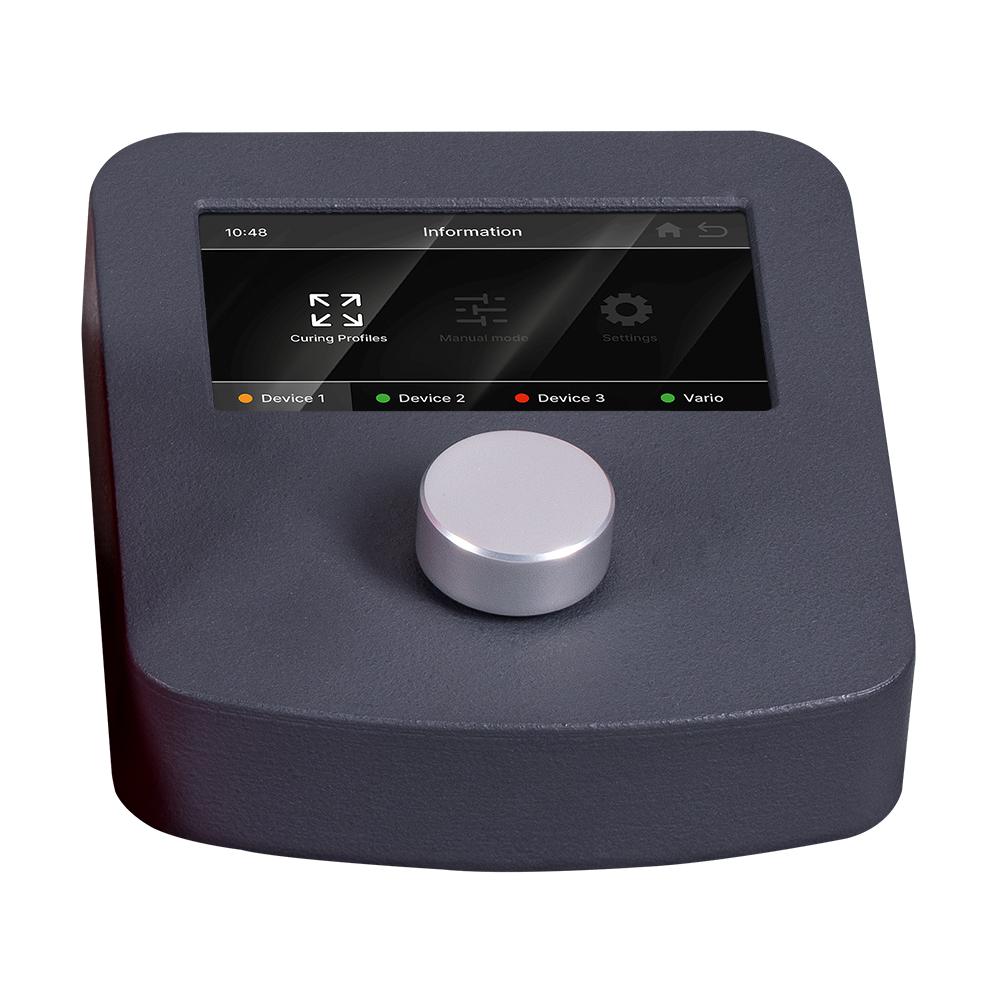

• Modular System Design: Scalable configuration supporting up to 3 post-curing modules operated via a single central control unit.

• Open System & High Customizability: Features 30 freely programmable memory slots and easy program imports via USB to seamlessly adapt to diverse resin formulations.

• Process Reliability & Monitoring: Fully logs and monitors critical process parameters to guarantee absolute reproducibility and compliance with quality standards.

Technical Specifications

• Item Number: 4319S / Compatible with PCU vario Control Unit

• Wavelength: 405 nm

• Curing Environments: Nitrogen, Ambient Air, Vacuum

• Curing Chamber Volume: approx. 48 x 29 x 12 cm³ ($120 \times 280 \times 290\text{ mm}$ usable dimensions)

• Device Dimensions (H x W x D): approx. 240 x 660 x 383 mm

• Weight: approx. 45 kg
