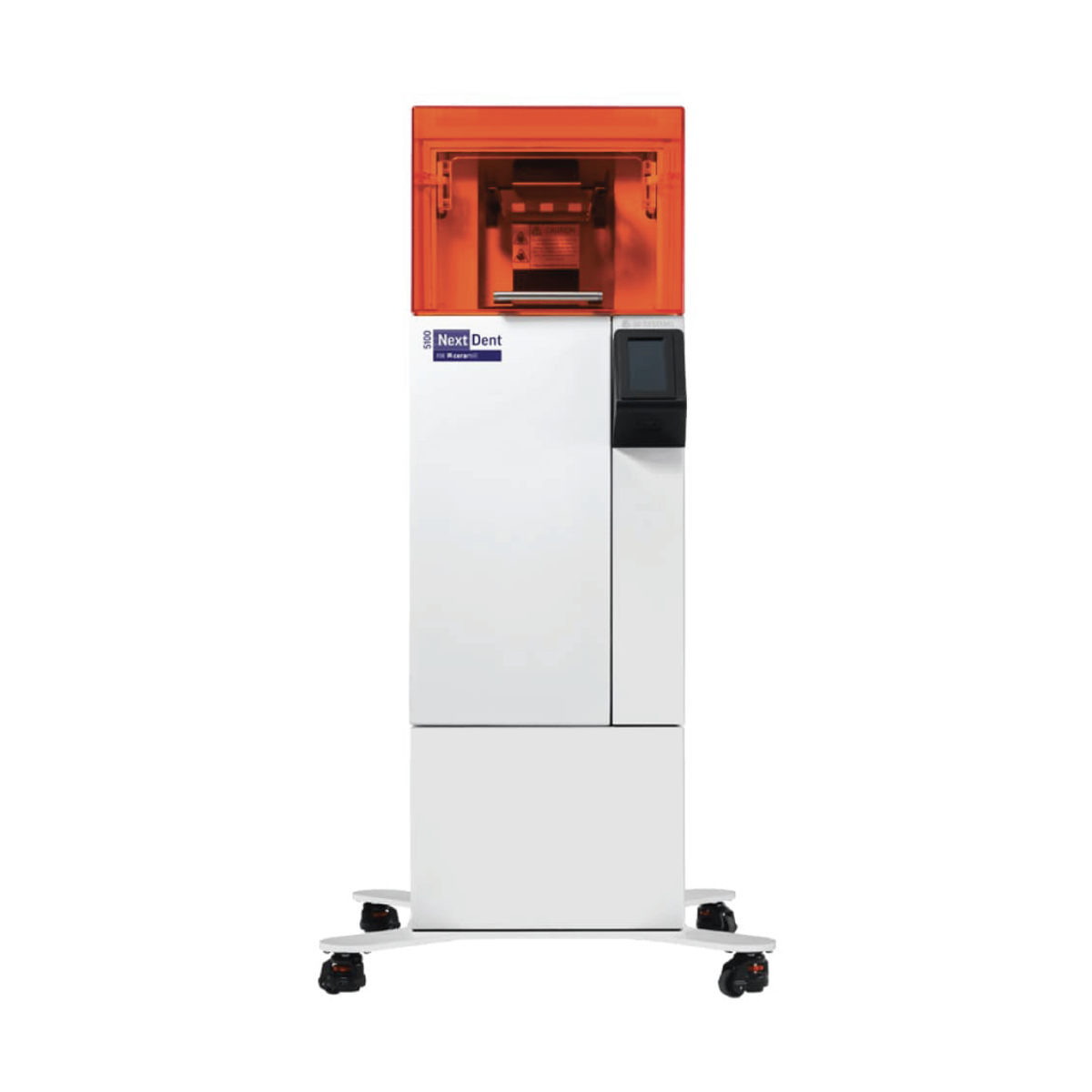

NextDent 5100 3D Printer
NextDent 5100 3D Printer
12 MONTHS 0% FINANCING AVAILABLE! MESSAGE US!
Financing Option Available
Transform your dental workflow with the NextDent® 5100, a high-speed 3D printing solution engineered by 3D Systems. Powered by revolutionary Figure 4® technology, this medical-grade DLP printer delivers best-in-class speed, exceptional precision, and an accessible price point that makes digital dentistry reachable for labs and clinics of any size.
In stock
Couldn't load pickup availability
Product Description
Product Description
NextDent 5100 3D Printer | 3D Systems
Digital Dentistry, Redefined.
Transform your dental workflow with the NextDent® 5100, a high-speed 3D printing solution engineered by 3D Systems. Powered by revolutionary Figure 4® technology, this medical-grade DLP printer delivers best-in-class speed, exceptional precision, and an accessible price point that makes digital dentistry reachable for labs and clinics of any size.
By replacing labor-intensive manual modeling with automated 3D production, the NextDent 5100 slashes turnaround times, dramatically reduces material waste, and enhances patient care with highly precise, repeatable results.
Key Features & Benefits
-
Industry-Leading Speed: Print full-arch models in as little as 15–40 minutes. The automated nesting software allows you to print up to 30 stacked arches in under 2 hours, offering up to 4x the speed of standard dental 3D printers.
-
The Industry’s Broadest Material Portfolio: Fully compatible with 30 unique, clinically validated NextDent biocompatible resins. Address 10 distinct dental indications—including digital dentures, crowns & bridges, surgical guides, orthodontic splints, and custom trays—all with a single machine.
-
Uncompromising Accuracy: Utilizing a 405nm projector wavelength and a native 65-micron pixel pitch, the NextDent 5100 ensures exceptional fit, crisp margins, and ultra-smooth surface finishes for every appliance.
-
Intuitive End-to-End Workflow: Seamlessly integrates with industry-standard intra-oral scanners and CAD software. File preparation is powered by 3D Sprint®, featuring automatic part placement, optimized nesting, and smart support generation.
-
Regulatory Peace of Mind: All compatible NextDent medical-device materials are biocompatible, FDA-listed, CE-certified, and registered globally, ensuring absolute compliance with international medical regulations.
Applications (10 Key Indications)
The NextDent 5100 is a versatile workhorse capable of fabricating:
-
Full & Partial Dentures (Denture bases & teeth)
-
Crown & Bridge models (Long-term temporaries)
-
High-precision Surgical Guides
-
Orthodontic Splints & Night Guards
-
Prosthodontic & Orthodontic models
-
Custom Impression Trays
-
Try-in devices and Gingiva Masks
Technical Specifications
| Feature | Specification |
| Print Technology | Figure 4® Non-Contact Membrane DLP (405 nm) |
| Net Build Volume (X x Y x Z) | $124.8 \times 70.2 \times 196 \text{ mm}$ ($4.9 \times 2.8 \times 7.7 \text{ in}$) |
| Native Resolution | 65 Microns (390.8 effective PPI) |
| Software Bundle | 3D Sprint® (File prep, automated nesting, and queue management) |
| File Formats Supported | STL, OBJ, PLY, CTL, ZPR, ZBD |
| Connectivity | 10/100/1000 Gigabit Ethernet Interface |
| Printer Dimensions (Uncrated) | $42.6 \times 48.9 \times 97.1 \text{ cm}$ ($16.7 \times 19.25 \times 38.22 \text{ in}$) |
| Printer Weight | 34.5 kg (76 lbs) |
| Power Requirements | 100-240 VAC, 50/60 Hz, Single Phase, 4.0A |
| Warranty | 12-Month Manufacturer's Warranty Included |
