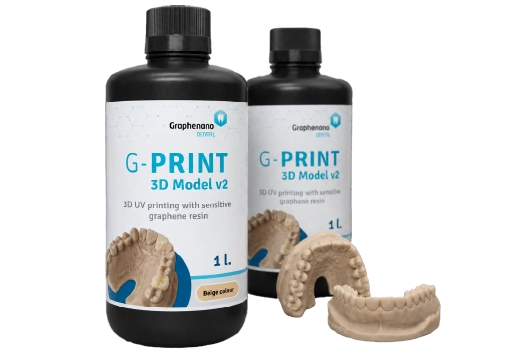

• G-PRINT 3D Model v2 – Graphenano Dental

  Graphene-Doped Photopolymer Resin for Precision Dental Models

  Overview

  G-PRINT 3D Model v2 is an advanced, light-curing acrylic resin enhanced with medical-grade graphene nano-particles, specifically engineered by Graphenano Dental for additive manufacturing in digital dentistry. Formulated for DLP and LCD open-system 3D printers, G-PRINT v2 bridges the gap between digital CAD design and physical verification by delivering ultra-precise, dimensionally stable dental models.

  By incorporating graphene into the photopolymer matrix, G-PRINT v2 provides exceptional edge sharpness, low sedimentation during printing, and outstanding physical stability—offering an ideal, highly detailed foundation for working models, removable die systems, thermoforming aligners, and surgical planning.

  Key Features & Advantages

  • Graphene-Doped Matrix: Nano-reinforcement improves structural integrity and reduces volumetric distortion, ensuring printed models retain exact geometry during post-processing and long-term storage.

  • Exceptional Surface & Margin Definition: Delivers ultra-smooth, pore-free surfaces with crisp reproduction of prep margins, fine occlusal grooves, and anatomical contours for easy visual inspection.

  • Low Sedimentation & High Reproducibility: Enhanced formulation resists rapid particle settling, making resin mixing effortless and ensuring uniform, repeatable results print after print.

  • Optimized Digital Workflow: Fully compatible with thermoforming processes (aligners and splints), silicone duplication, and plaster isolation, handling much like traditional dental stone with superior durability.

  • High Efficiency & Yield: Provides a highly cost-effective solution for digital dental laboratories—yielding up to ~100 hollow full-arch models or ~45 solid models per 1-liter bottle.

  Indications & Laboratory Applications

  G-PRINT v2 is formulated as a non-patient-contact working material for:

  • Solid and hollow full-arch or quadrant working models

  • Removable die dental models

  • Reference models for thermoforming clear aligners and bite splints

  • Diagnostic master models and wax-up bases

  Technical Specifications & Parameters

  • Material Base: Photopolymerizable acrylic resin doped with graphene allotropes.

  • Physical Properties:

    • Flexural Strength (at 5%): $87\text{ MPa}$

    • Elastic Modulus: $2,780\text{ MPa}$

    • Surface Hardness: $87\text{ Shore D}$

    • Viscosity (at 25°C): $200\text{ cPs}$

    • Liquid Density: $1.1\text{ g/cm}^3$

  • Printer Compatibility: Open systems using DLP or LCD technology operating in the $385\text{--}405\text{ nm}$ UV wavelength range.

  • Packaging: 1-Liter ($1\text{ kg}$) light-protective safety bottle.

  • Cleaning & Post-Curing: Alcohol rinse ($\le 5\text{ minutes}$ total duration using $96\%$ ethanol or isopropanol) followed by standard UV post-curing.
