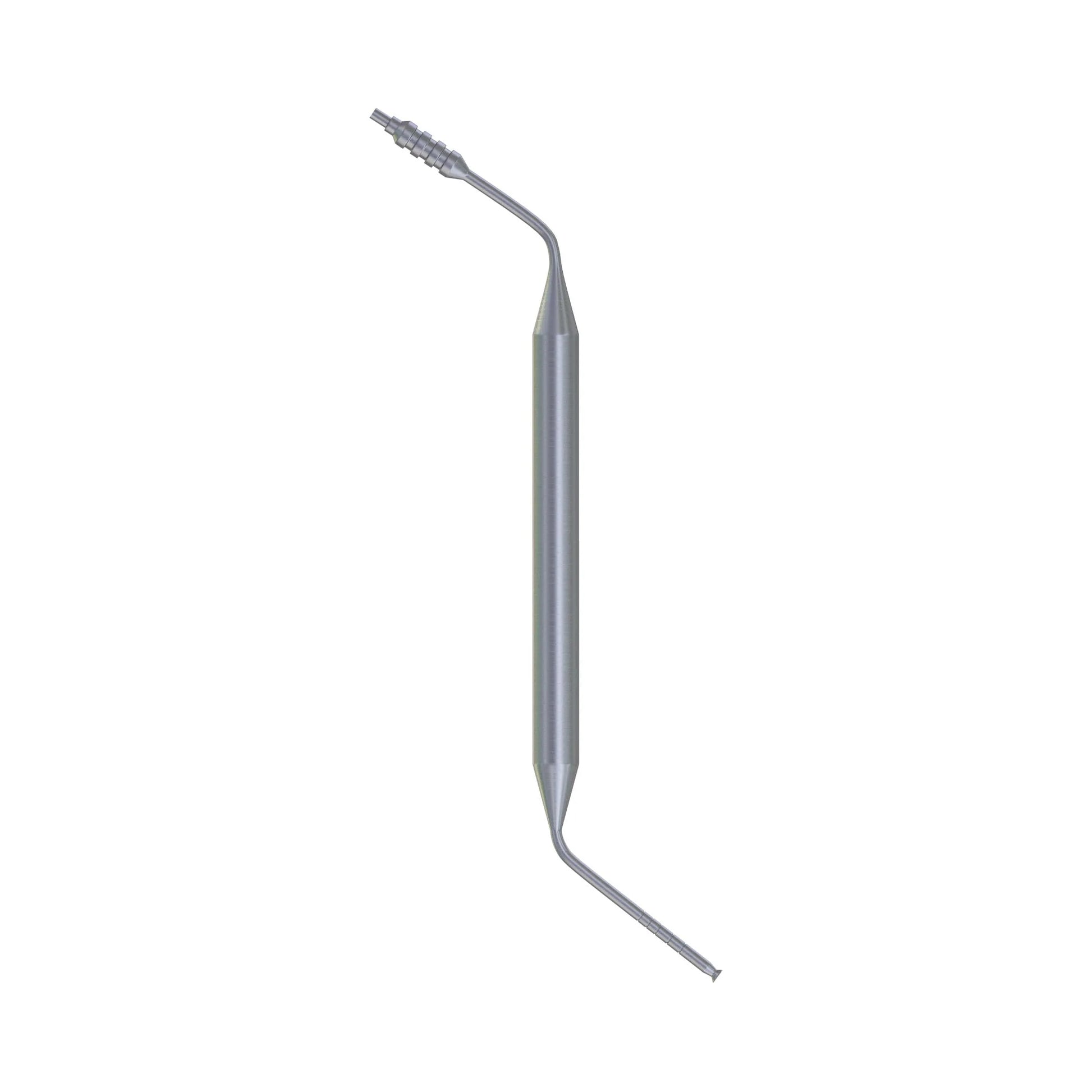

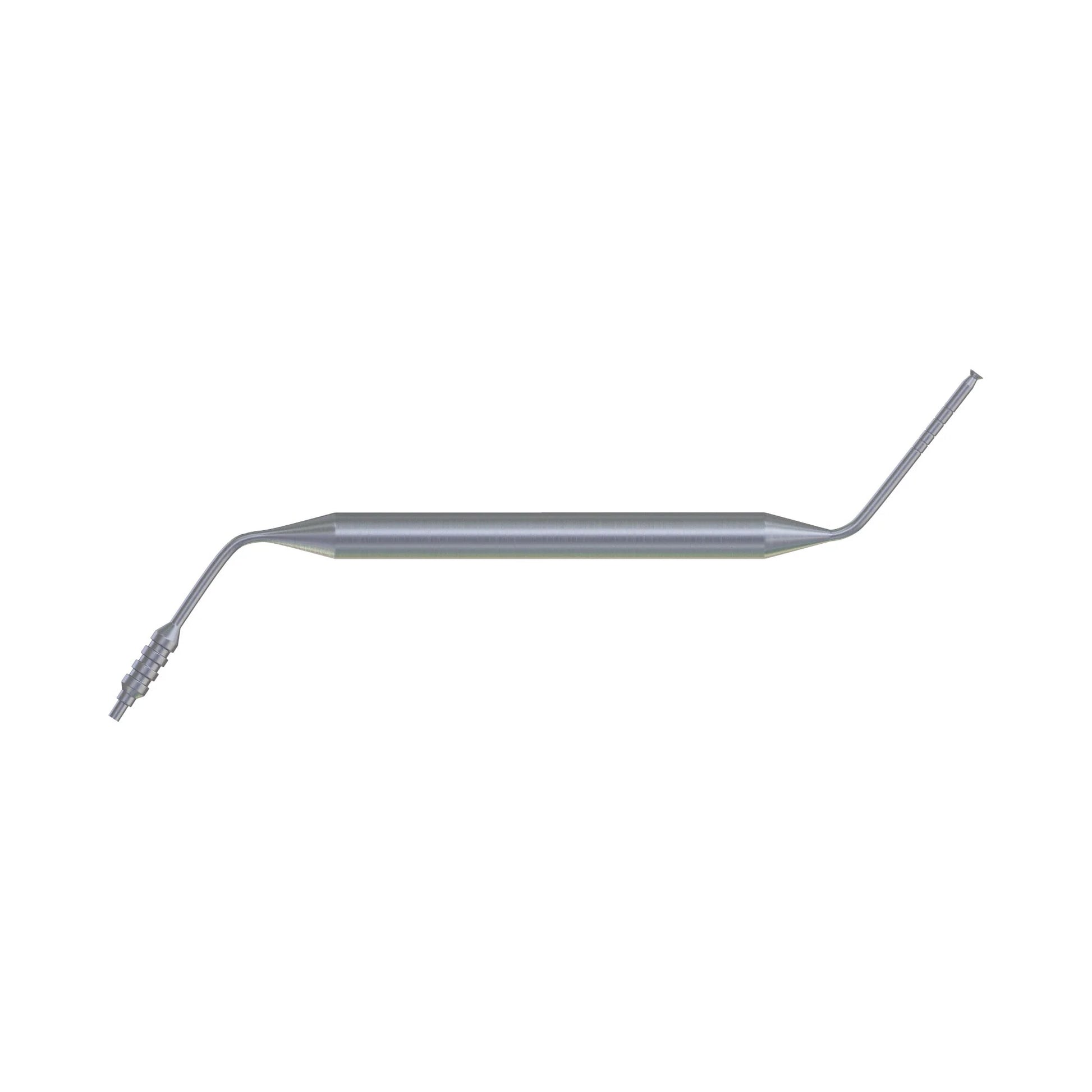

DSI Depth Gauge is an exceptional instrument made for measuring both osteotomy implant socket depth and gingival height for abutment placement, with unparalleled precision.

DSI Depth Gauge features markings on both sides with an exact increment for the gingival height, and osteotomy depth based on the most popular measurements.

Indications:

• Depth measuring of implant sockets and gingival height for abutment placement

Features and benefits:

• Dual-sided markings
• Provides measurements for both gingival height and osteotomy depth
• Offers precise measurements for enhanced accuracy
• High-quality materials
• Simplifies the measurement process
• Aligns with commonly used measurements of implants and abutments
• Time-saving
• Offers long-lasting performance, minimizing the need for frequent replacements and reducing costs over time
• Autoclavable and reusable

Technical Information:

• Material: Stainless Steel
• Type: Dual-sided
• Measurements:
• Osteotomy: 6mm, 8mm, 10mm, 11.5mm, 13mm and 16mm
• Gingival: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm and 7mm
• Autoclavable and reusable

Package includes 1 double-sided depth gauge
