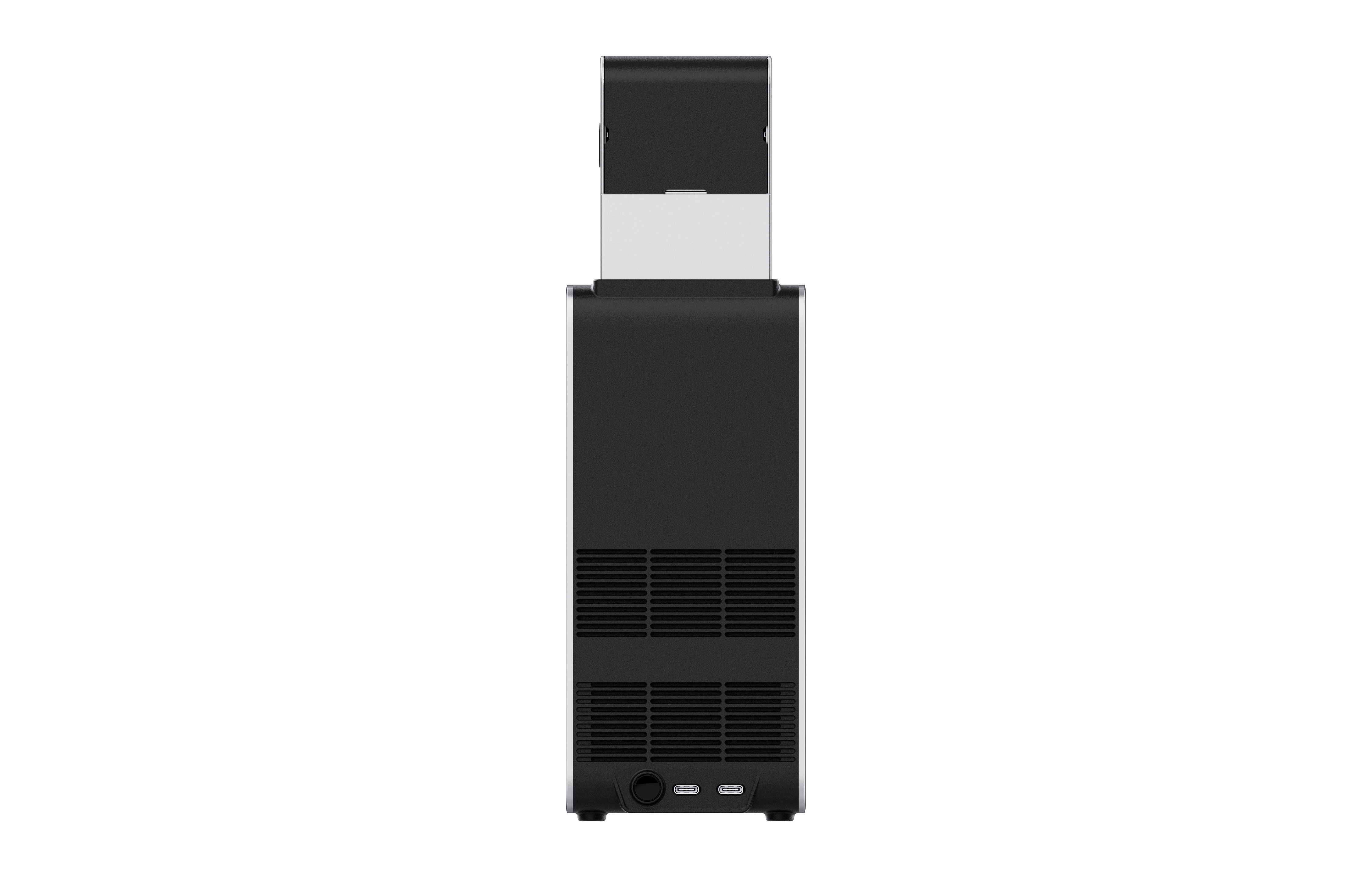

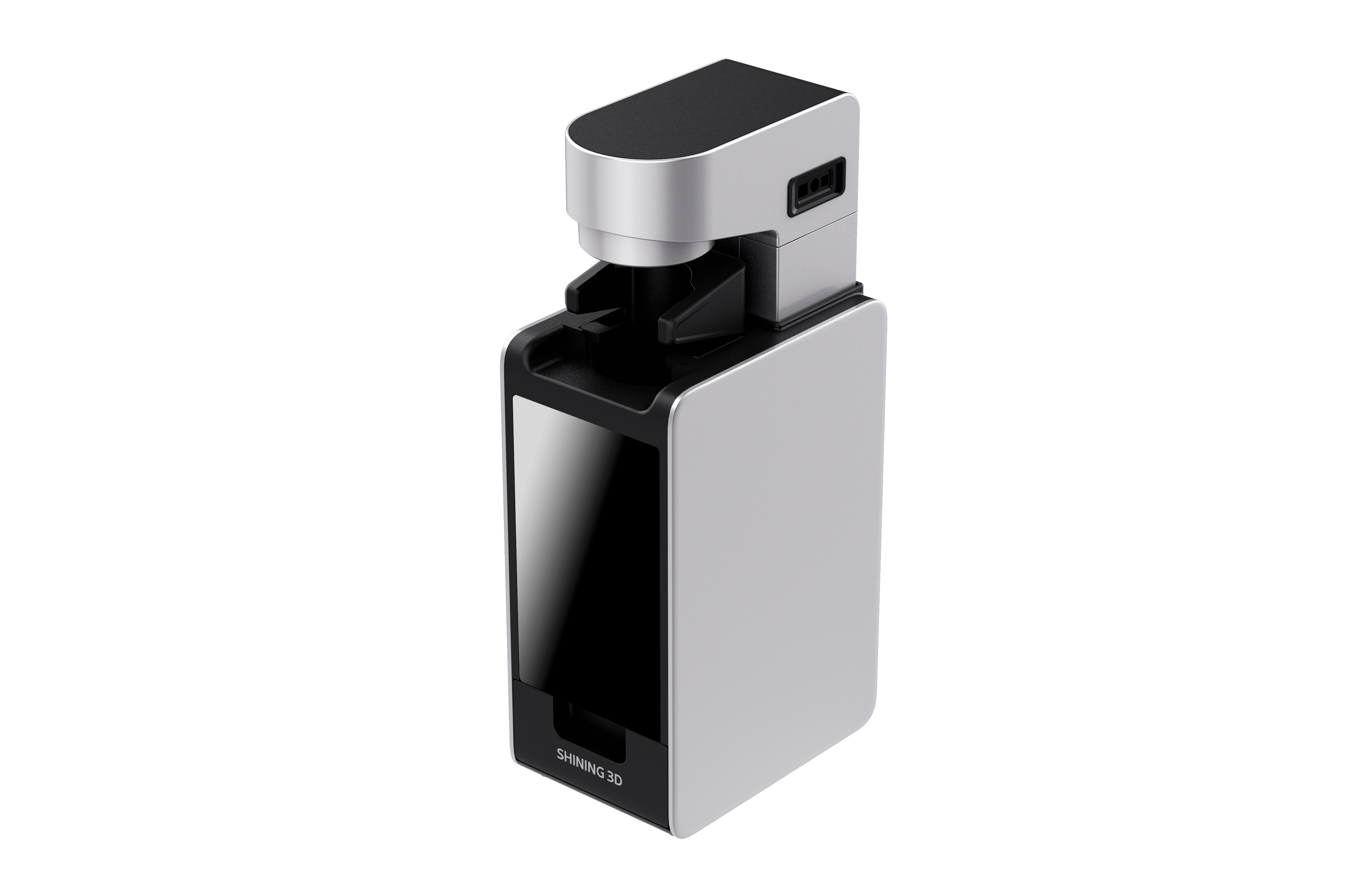

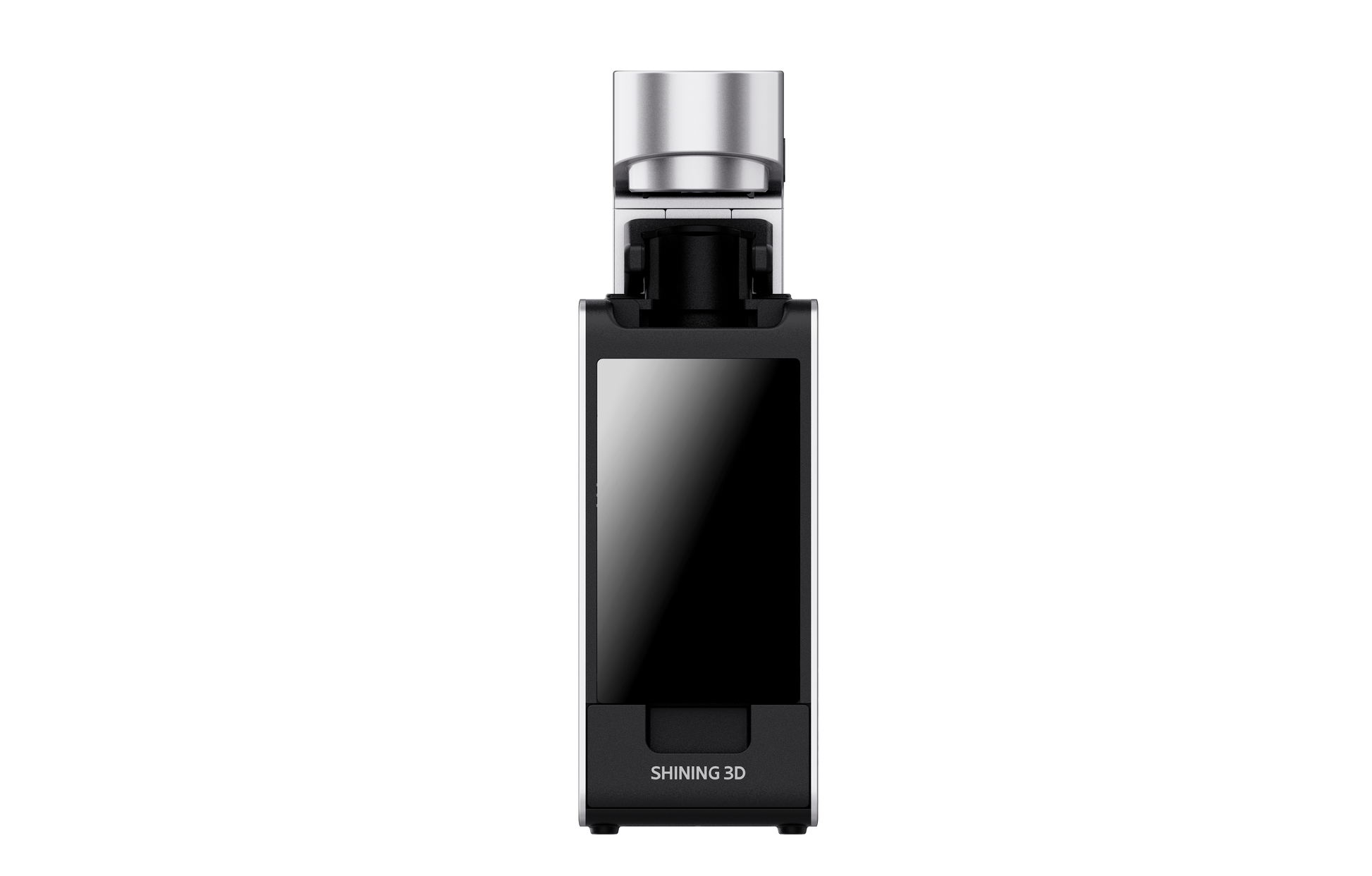

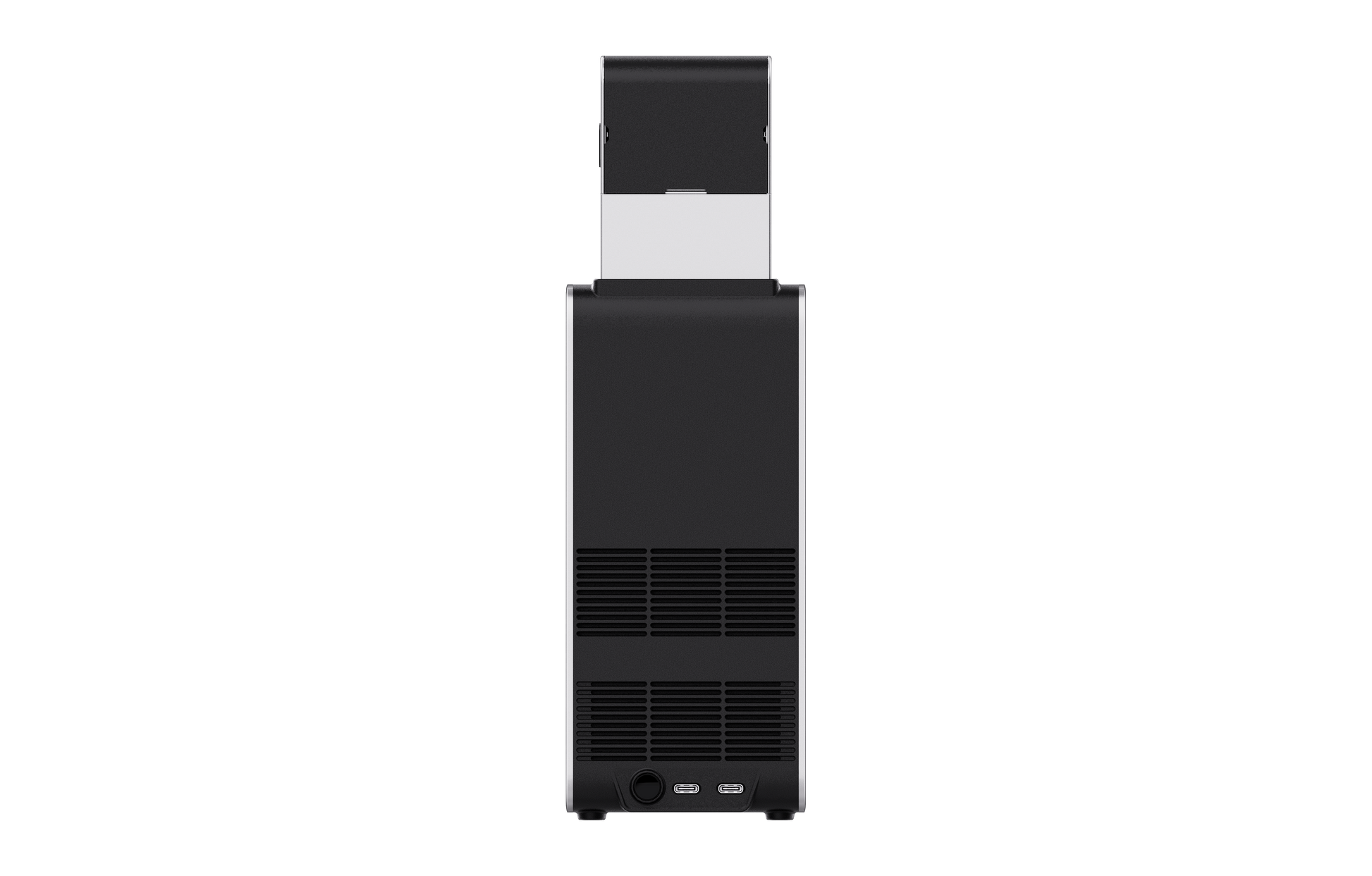

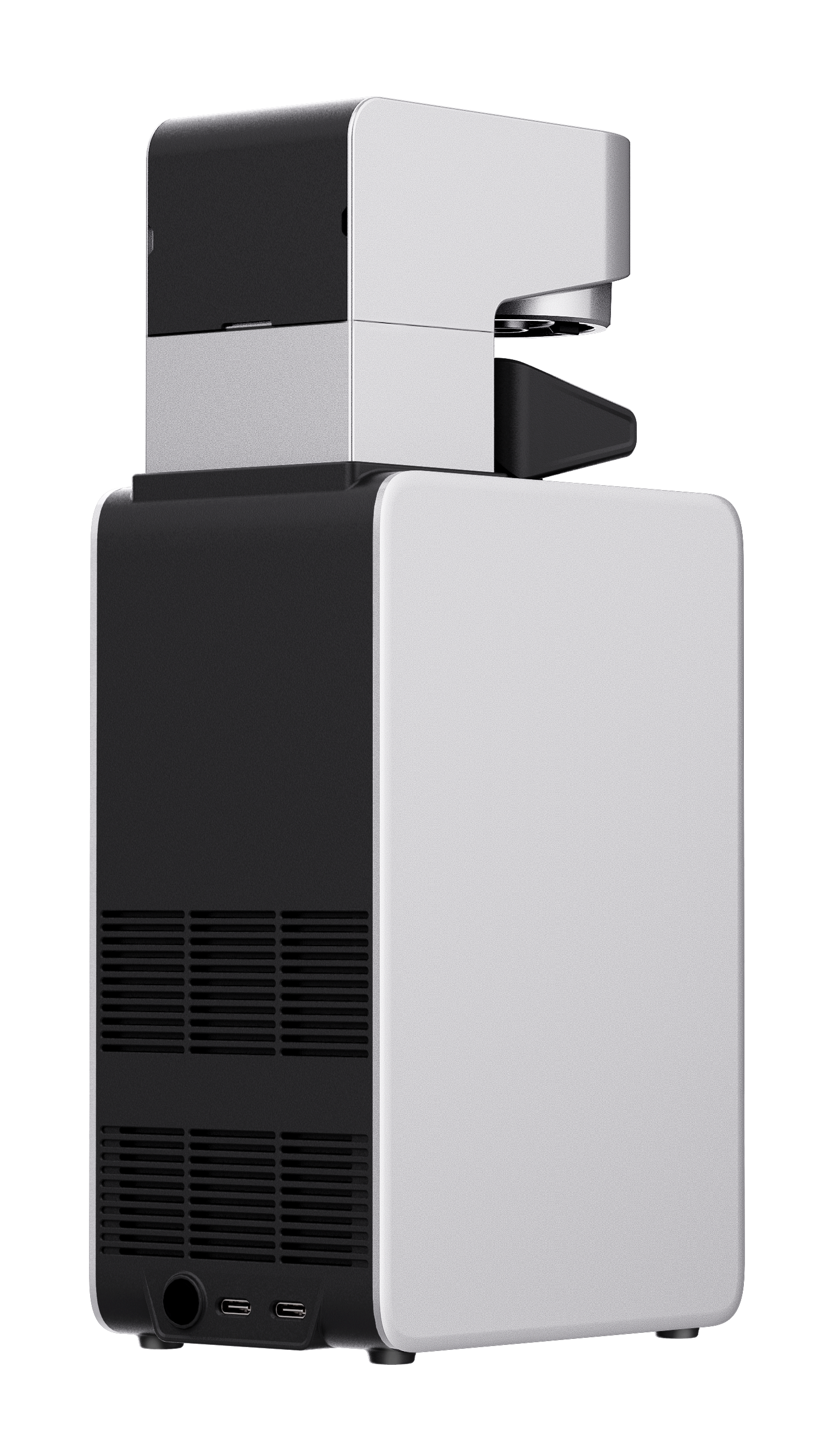

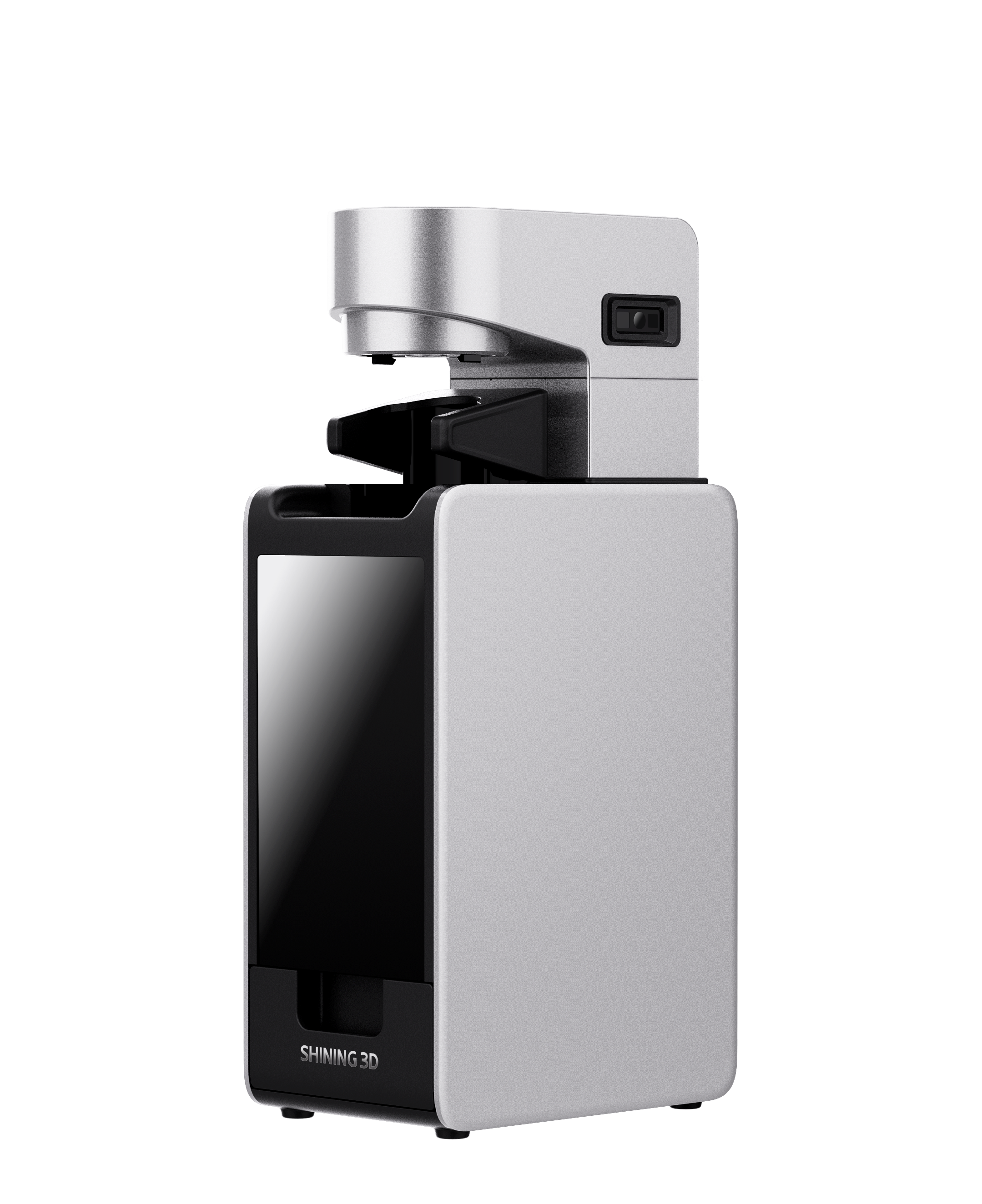

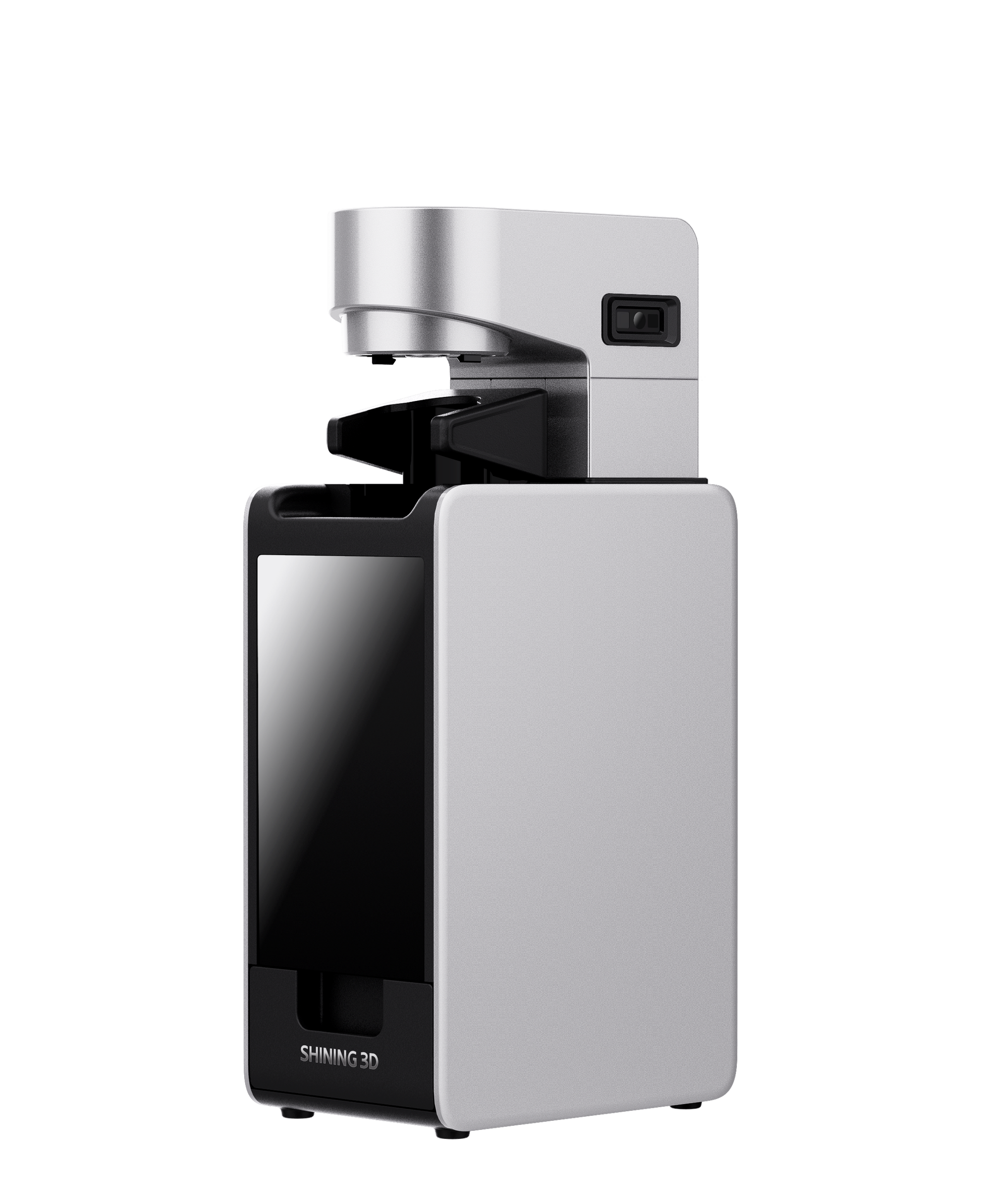

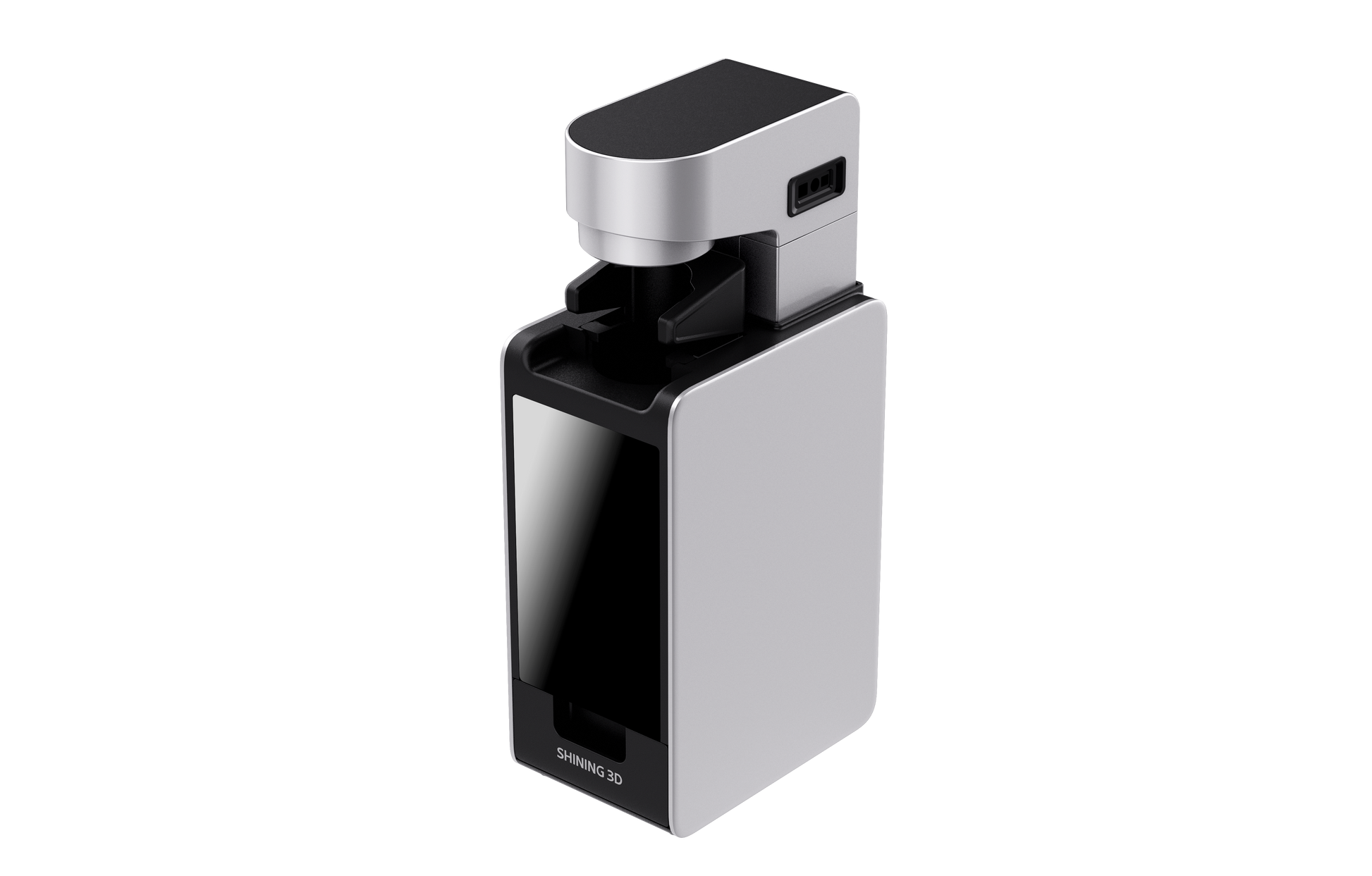

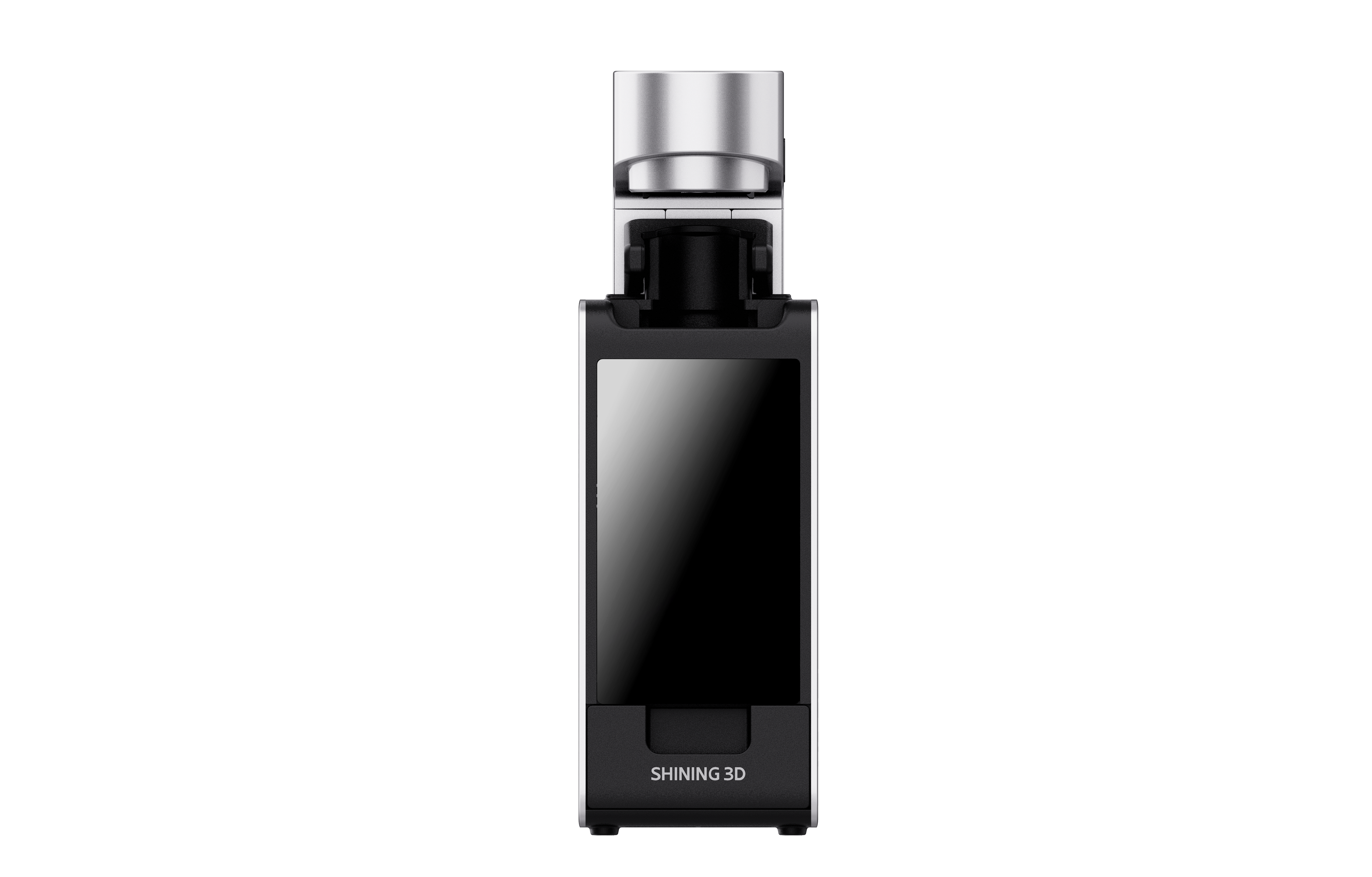

SHINING 3D Ceramix-Nano (U) Capsule 3D Printer

The World’s Most Compact All-in-One Chairside Crown Solution

Redefine same-day restorations with the SHINING 3D Ceramix-Nano (U). Breaking away from traditional, bulky laboratory equipment, this revolutionary, shoebox-sized 3D printer introduces a plug-and-play micro-factory designed explicitly for modern dental operatory desks. By fusing high-speed printing and thermal curing into a single ultra-compact unit, the Ceramix-Nano allows clinics to fabricate permanent, lab-quality ceramic restorations in as little as 15 minutes right at the chair.

Why the Ceramix-Nano (U) Belongs in Your Practice

1. Zero-Mess Capsule System (LumiCera)

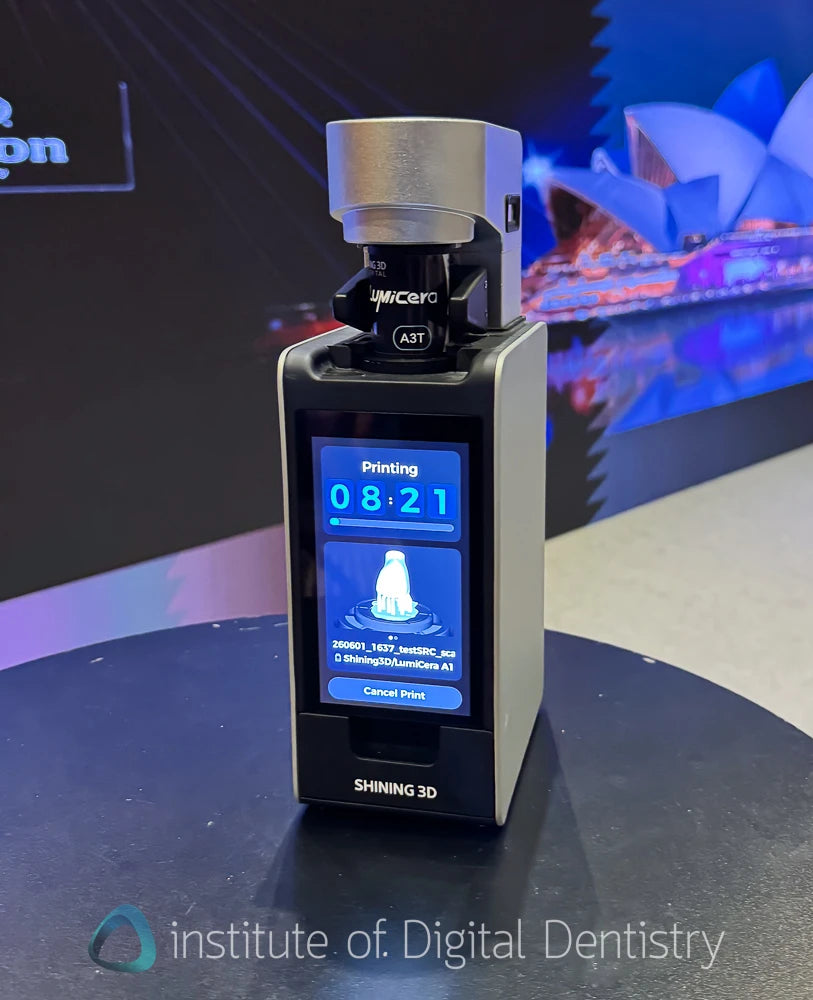

Say goodbye to open resin vats, tedious pouring, chemical odors, and messy cleanups. The Ceramix-Nano runs on pre-measured LumiCera ceramic resin capsules. Simply scan the capsule’s QR code, and the machine automatically configures the print settings, stirs the material, and gets to work.

• High Yield: One single capsule can produce up to 3 restorations (crowns, veneers, inlays, onlays, or up to 3-unit bridges).

• Premium Esthetics: Available in 5 core VITA shades (BL, A1, A2, B1, C2).

2. True Permanent Restorations

The LumiCera resin features a greater than 50% ceramic filler content and holds FDA Class II 510(k) clearance for definitive intraoral use.

• Rugged Mechanics: Boasts a 200 MPa flexural strength (matching natural tooth structure) and is rated for 10 million chewing cycles (exceeding a 10-year clinical service life).

• Maximum Reimbursement: Meets the updated ADA criteria for ceramic materials, qualifying for insurance reimbursement at the exact same rate as traditional milled or pressed ceramic restorations.

3. Patented APS (Adaptive Pneumatic Stereolithography)

High-viscosity, ceramic-heavy resins are notoriously difficult to print. SHINING 3D’s proprietary APS technology solves this by utilizing intelligent pneumatic layer separation and real-time peeling-force control. The result? Unrivaled margin accuracy, smooth surfaces, and flawless groove details.

4. Integrated Print & Cure Workflow

The Ceramix-Nano eliminates the need for standalone washing or external curing ovens. Once the 8-to-11-minute print cycle concludes, the built-in 80°C/90°C thermal post-curing module finishes the restoration in just 3 minutes inside the exact same machine footprint.

5. Untethered Portability

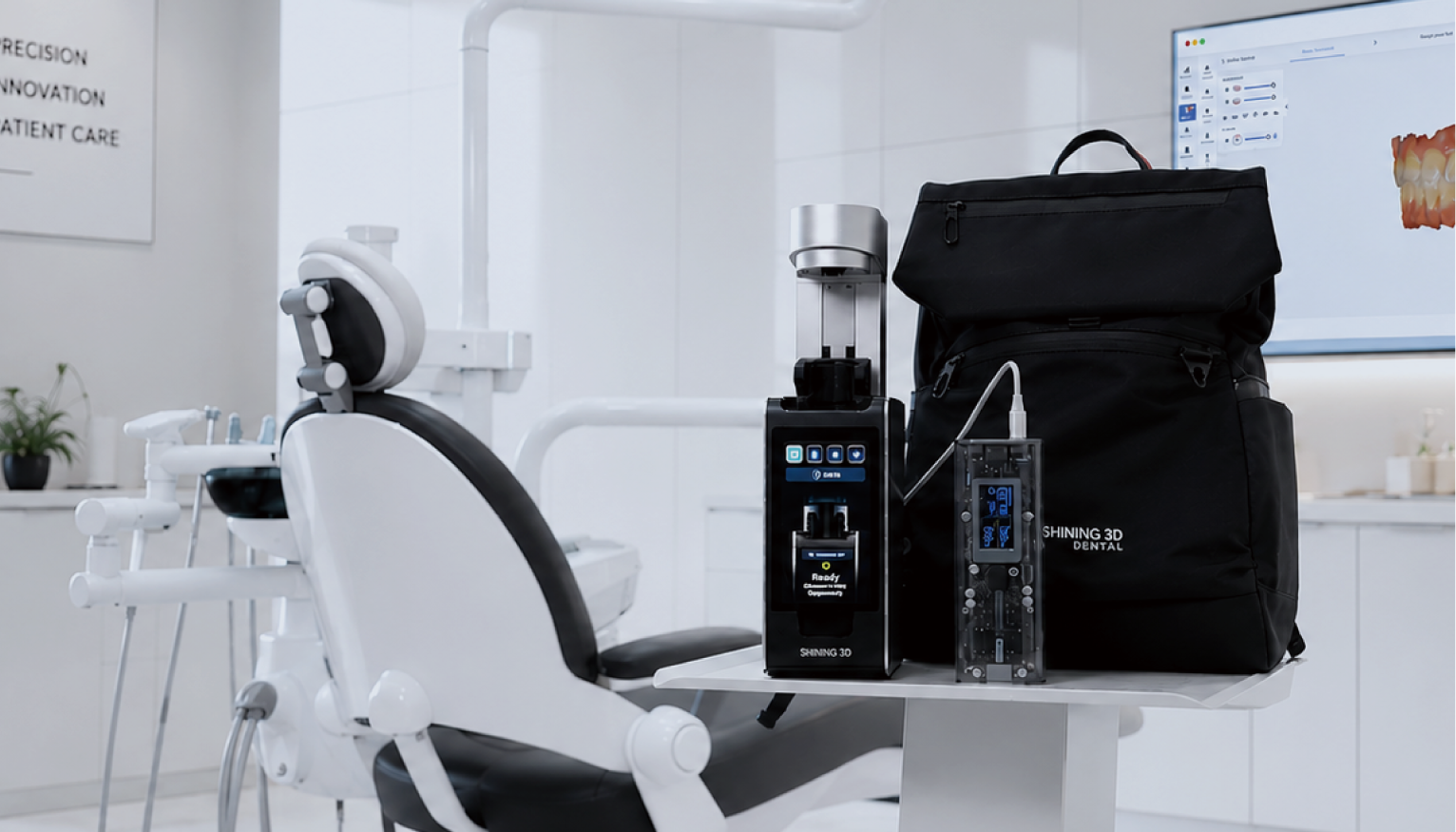

Weighing a mere 2 kg (4.5 lbs) and taking up less space than a countertop coffee maker, it is incredibly agile. It even supports operation via a compatible external power bank—allowing for up to 5 complete print-and-cure cycles entirely untethered from a wall outlet.

The 30-Minute Scan-to-Seat Workflow

[Patient Scan via IOS] ➔ [SHINING FLOW AI Design (2 Mins)] ➔ [Capsule Print (8-11 Mins)] ➔ [Built-in Cure (3 Mins)] ➔ [Seat Restoration]

Technical Specifications
