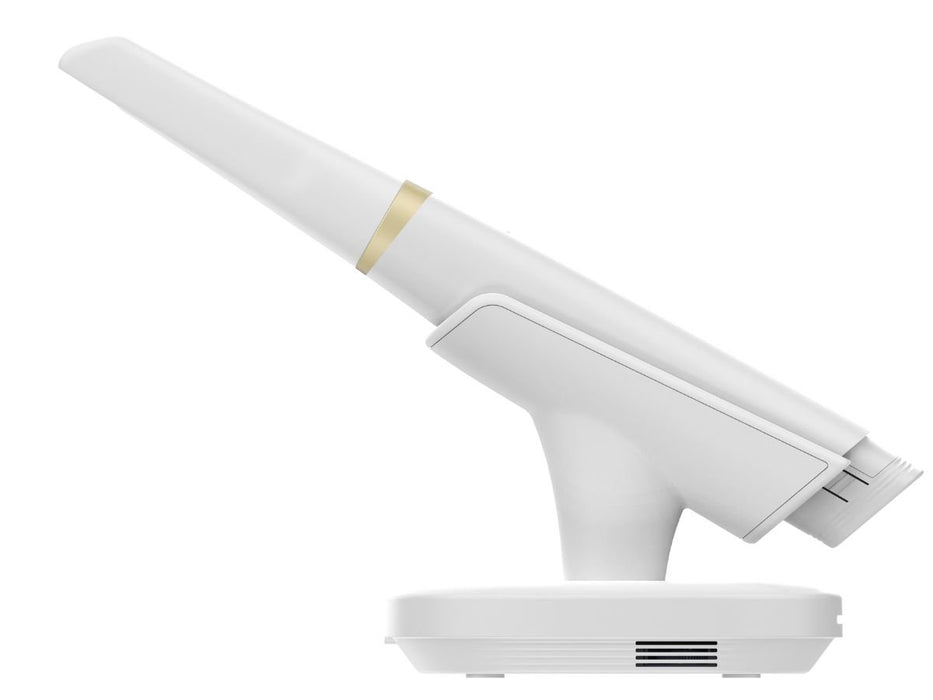

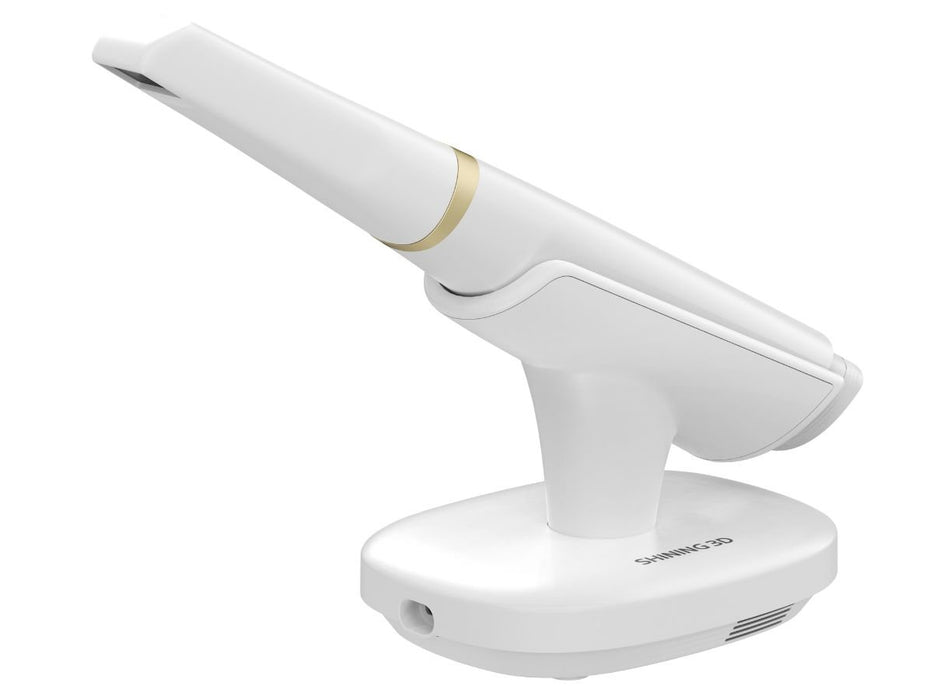

SHINING 3D Aoralscan Elite Wireless

Wireless | Intraoral Photogrammetry | Full-Arch Precision

The Aoralscan Elite Wireless by SHINING 3D is a groundbreaking intraoral scanner that combines the freedom of wireless operation with the precision of intraoral photogrammetry (IPG). Designed for modern dental practices, it excels in capturing detailed scans for both dentulous and edentulous cases, making it an ideal solution for a wide range of dental applications, including full-arch implant restorations.

Key Features & Benefits:

• Dual-Functionality: Serves as both a standard intraoral scanner and a photogrammetry system, enhancing versatility in clinical applications.

• Intraoral Photogrammetry (IPG): Accurately records implant positions in edentulous cases, streamlining workflows for procedures like All-on-X.

• Wireless Operation: Utilizes Wi-Fi 6 technology for fast, stable data transfer, eliminating the constraints of wired connections.

• Lightweight Design: Weighing only 194g with the battery, it ensures comfortable handling during extended scanning sessions.

• Long Battery Life: Each of the two included batteries provides up to 2 hours of continuous scanning; full charge achieved in approximately 2.5 hours.

• Multiple Scanner Tips: Comes with IPG, standard, and mini tips to accommodate various scanning needs.

• AI Integration: Incorporates AI for real-time data optimization, undercut detection, and motion sensing, enhancing scan accuracy and efficiency.

• Open System: Exports data in STL, OBJ, and PLY formats, ensuring compatibility with various CAD/CAM systems.

• SHINING 3D Dental Cloud: Facilitates seamless collaboration between clinics and labs, offering tools for patient management, data assessment, and printer management.

Technical Specifications:

• Scan Field of Single Frame:

  • IPG scanner tip: 19mm × 14mm

  • Standard scanner tip: 16mm × 12mm

  • Mini scanner tip: 12mm × 9mm

• Scan Depth: 22mm from the exit surface of the tip

• Scan Principle: Non-contact scanner with structured light and intraoral photogrammetry

• Dimensions (L × W × H): 247mm × 38mm × 37mm

• Weight: 194g (with battery)

• Output Formats: STL, OBJ, PLY





Recommended PC Configuration:

• CPU: Intel Core i7-8700 or higher

• RAM: 32 GB

• Hard Disk Drive: 256 GB SSD or above

• Graphics Card (GPU): NVIDIA RTX 2060 6GB DDR3 or higher

• Operating System: Windows 10 Professional (64-bit) or later

• Display Resolution: 1920×1080, 60 Hz or higher

• I/O Ports: Type-C

Experience the next level of digital dentistry with the Aoralscan Elite Wireless—where innovation meets precision.
