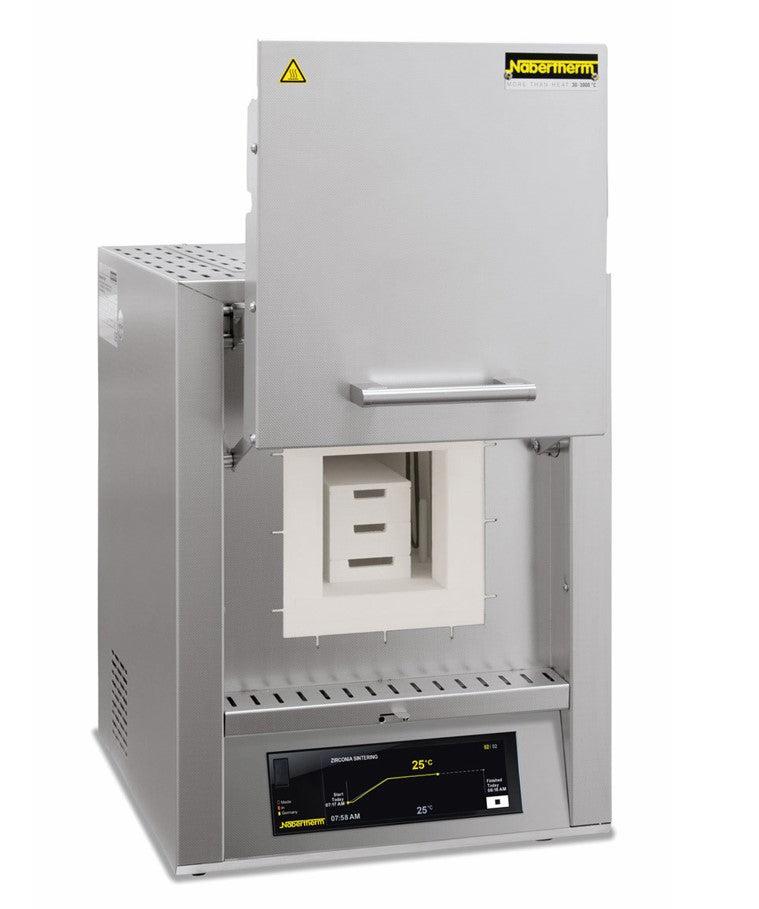

Nabertherm LHT 01/17 High-Temperature Sintering Furnace - 1 Liter
Nabertherm LHT 01/17 High-Temperature Sintering Furnace - 1 Liter
Furnace chamber can be charged with up to two saggars 15 crowns per level
- These high-temperature furnaces are ideally suited for sintering bridges and crowns made of translucent zirconia.
- The special heating elements made
of molybdenum disilicide promise very good protection against chemical interaction between the charge and the furnace components. - The bridges andcrowns are loaded in ceramic saggars. These high-temperature furnaces are particularly convincing due to their very good price-performance ratio.
- The furnaces can be individually programmed for all recommended sintering curves by almost all zirconium manufacturers.
Available in stock (9999)
Couldn't load pickup availability
Product Description
Product Description
High-Temperature Sintering Furnaces up to 1650 °Cfor sintering translucent zirconia
These high-temperature furnaces are ideally suited for sintering bridges and crowns made of translucent zirconia. The special heating elements made of molybdenum disilicide promise very good protection against chemical interaction between the charge and the furnace components. The bridges and crowns are loaded in ceramic saggars. These high-temperature furnaces are particularly convincing due to their very good price-performance ratio. The furnaces can be individually programmed for all recommended sintering curves by almost all zirconium manufacturers. FUNCTION AND EQUIPMENT
FUNCTION AND EQUIPMENT
- Tmax 1650 °C
- Furnace chamber with a volume of 1 or 4 liters
- Special heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements
- Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
- Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.

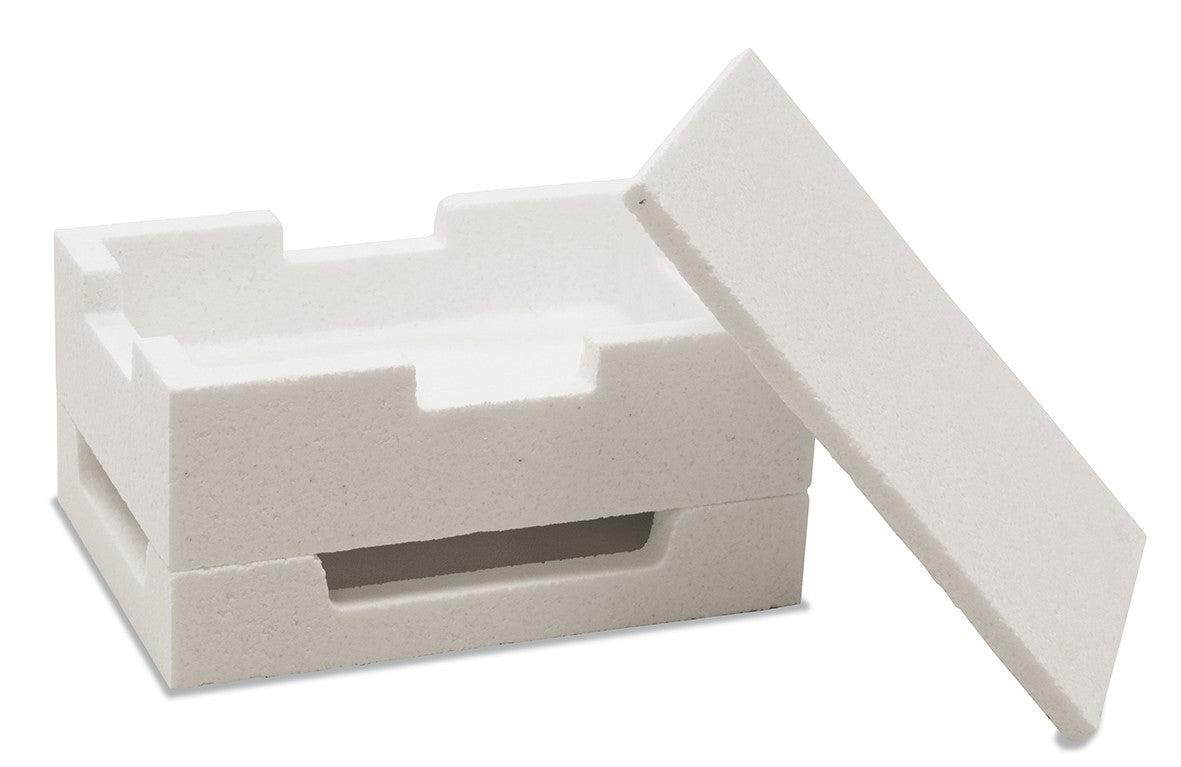

- Scope of delivery includes a starter set for charging on one level, additional levels as additional equipment
- Adjustable air inlet
- Furnace chamber can be charged with up to two (LHT 01/17D) or three (LHT 03/17D) saggars, 15 or 25 individual crowns per level (depending on model)
- Exhaust air opening in the roof
- Type S thermocouple
- Precise temperature control, also in the lower temperature range for drying
- Switchgear with steady control of the heating elements
- Freely usable for sintering blanks of almost all leading manufacturers
- Controller with touch operation P580 (50 programs with each 40 segments)
- MyNabertherm App for online monitoring of the firing on mobile devices for free download
- Freeware NTEdit for convenient program input via MS Excel on the PC
- Freeware NTGraph for evaluation and documention of firings using MS Excel on the PC
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
- Defined application within the constraints of the operating instructions
TECHNICAL SPECIFICATIONS
| Model | Tmax | Inner dimensions in mm | Volume | Maximum | Outer dimensions in mm3 | Connected | Electrical | Weight | Heating time | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in °C | w | d | h | in l | units | W | D | H2 | load in kW | connection* | in kg | in min1 | |
| LHT 01/17 D | 1650 | 110 | 120 | 120 | 1 | 30 | 385 | 425 | 525+195 | 2.9 | 1-phase | 28 | 35 |
| LHT 03/17 D | 1650 | 135 | 155 | 200 | 4 | 75 | 470 | 630 | 770+260 | 3.0 | 1-phase | 75 | 30 |
| *These furnaces are available for main voltage of 200 V, 208 V, 220 V - 240 V, 1/N/PE or 2/PE 1Heating time of the empty and closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE rsp. 400 V 3/N/PE) 2Including opened lift door 3External dimensions vary when furnace is equipped with additional equipment. Dimensions on request |
|||||||||||||
