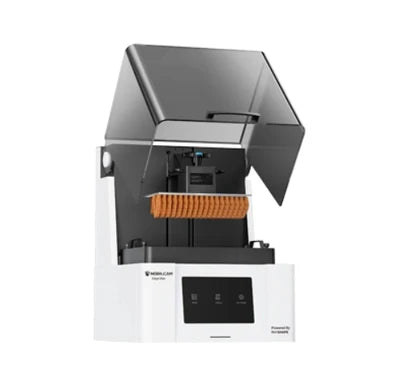

HUGE DENTAL USA NOBILCAM Edge Max 3D Printer
NOBILCAM Edge Max is a powerhouse dental 3D printer designed for high-throughput, precision-first labs. Its large-format build area, advanced imaging components, and smart workflow tools make it a seamless solution for mass production without compromising detail or reliability.
Key Advantages
Massive Build Volume
With a 290 × 160 × 190 mm print area, the Edge Max allows for simultaneous production of multiple crowns, guides, dentures, and orthodontic trays—enhancing throughput and reducing per-unit time.
High Definition, Fast Prints
Equipped with 7K LCD technology delivering approximately 50 μm pixel accuracy, this printer achieves crisp resolution and finishes. Combined with a printing speed up to 36 mm/h, it balances detail with efficiency.
User-Friendly Software & Controls
Powered by the proprietary Master.OS, the system allows editing functionalities—model cutting, hollowing, labeling, auto-repair—and supports both .stl/.obj import and proprietary format export.
Robust Workflow Integration
Supports network printing in LAN environments, including task delegation and printer cluster management. Plus, features like an auto-pause upon door opening and heated build platform help maintain quality and reliability.
Purpose-Built for Dental Applications
From surgical guides to cast models, custom trays to aligners, and everything in between, this machine shines across a wide spectrum of restorative and orthodontic workflows.
Technical Snapshot
|
Specification
|
Detail
|
|
Build Volume
|
290 × 160 × 190 mm
|
|
Pixel Resolution
|
~50 μm (7K LCD – 6480 × 3600 pixels)
|
|
Layer Thickness
|
0.05–0.10 mm
|
|
Printing Speed
|
Up to ~36 mm/hour
|
|
Control Interface
|
Master.OS on 10" touchscreen
|
|
Connectivity
|
USB 2.0, Wi‑Fi, Ethernet
|
|
File Formats
|
Import: .stl, .obj • Export: proprietary
|
|
Safety & Stability
|
Auto-pause, heated platform
|
|
Power Input
|
500 W rated
|
|
Physical Size
|
~480 × 500 × 650 mm; weight ~39 kg
|
Why Labs Choose It
-
Scale Up Effortlessly — Large build chamber accelerates batch production.
-
Maintain Precision — High-definition output keeps margins fine and surface finish sharp.
-
Streamline Operations — Smart software and network capabilities reduce manual steps.
-
Maximize Versatility — Supports everything from aligners to implant models in one platform.
-
Reliable by Design — Safety and platform features ensure consistent performance.
